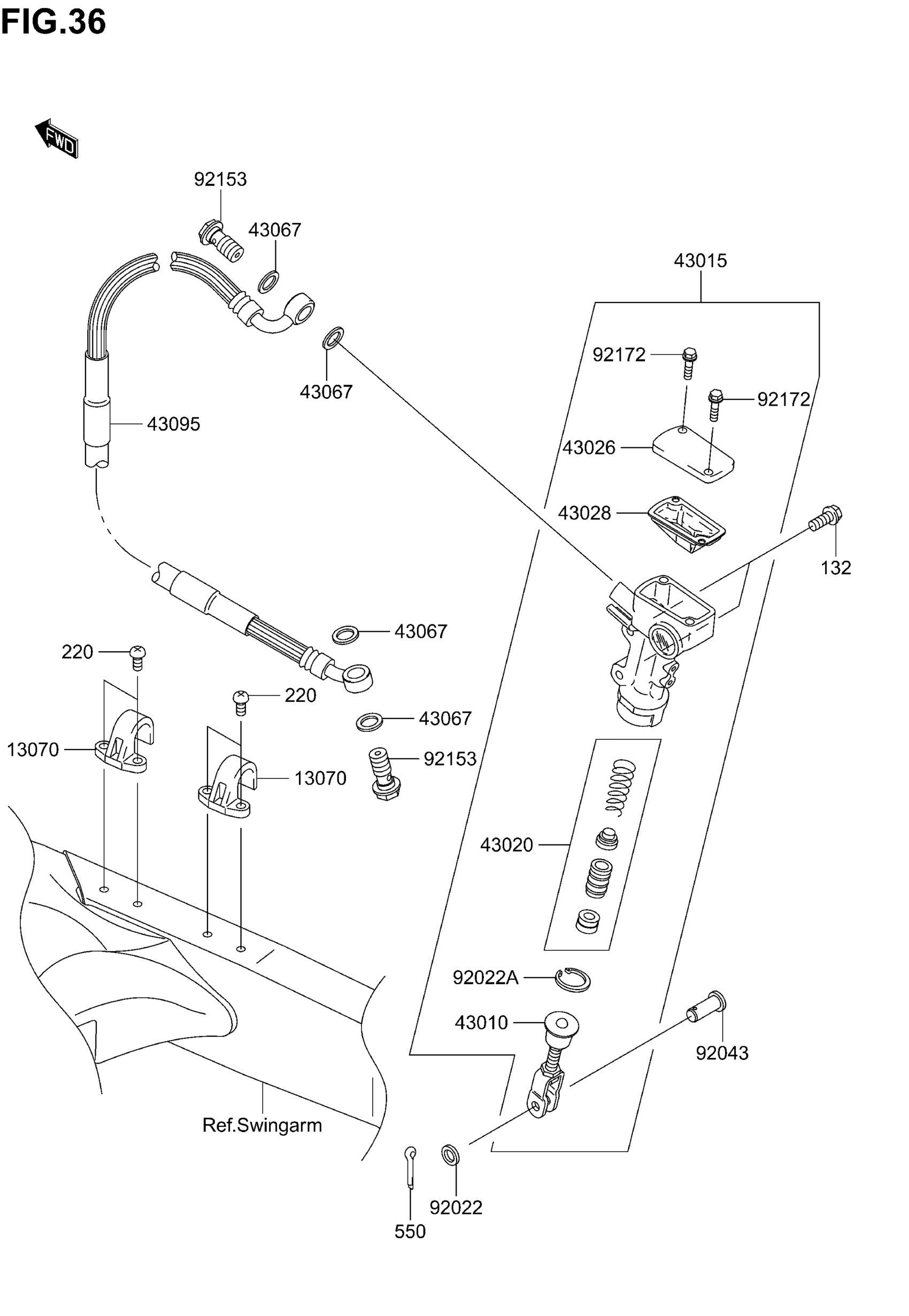

Suzuki RM-Z250 (2005) REAR MASTER CYLINDER Diagram

GUIDE,BRAKE HOSE

K1307-00048

Unavailable

ROD-ASSY-BRAKE

K4301-01087

Unavailable

CYLINDER-ASSY-MASTER,RR

K4301-50004

Unavailable

PISTON-COMP-BRAKE

K4302-01094

Unavailable

CAP-BRAKE

K4302-61086

$11.77

DIAPHRAGM

K4302-81092

$16.23

WASHER,SEAL,10. This part replaces KK430-67001.

K4909-10001

$1.68

HOSE-BRAKE,RR

K4309-50024

Unavailable

WASHER,8.5X13X1

K9202-21028

Unavailable

WASHER,CIRCLIP This part replaces K9202-21601.

K9203-30079

Unavailable

PIN

K9204-30004

$8.57

BOLT,OIL,L=23

K9215-30627

$4.82

SCREW

K9217-21064

$1.78

BOLT-FLANGED-SM This part replaces KK132-G0614.

K132B-A0614

$1.25

SCREW-PAN-CROS This part replaces KK220-B0510.

K220A-A0510

$1.49

PIN-COTTER,2.0X This part replaces KK550-D2015.

K550A-A2015

$1.49
