2005 Suzuki RM-Z250 Gear Change Drum/shift Fork Diagram

← All diagrams

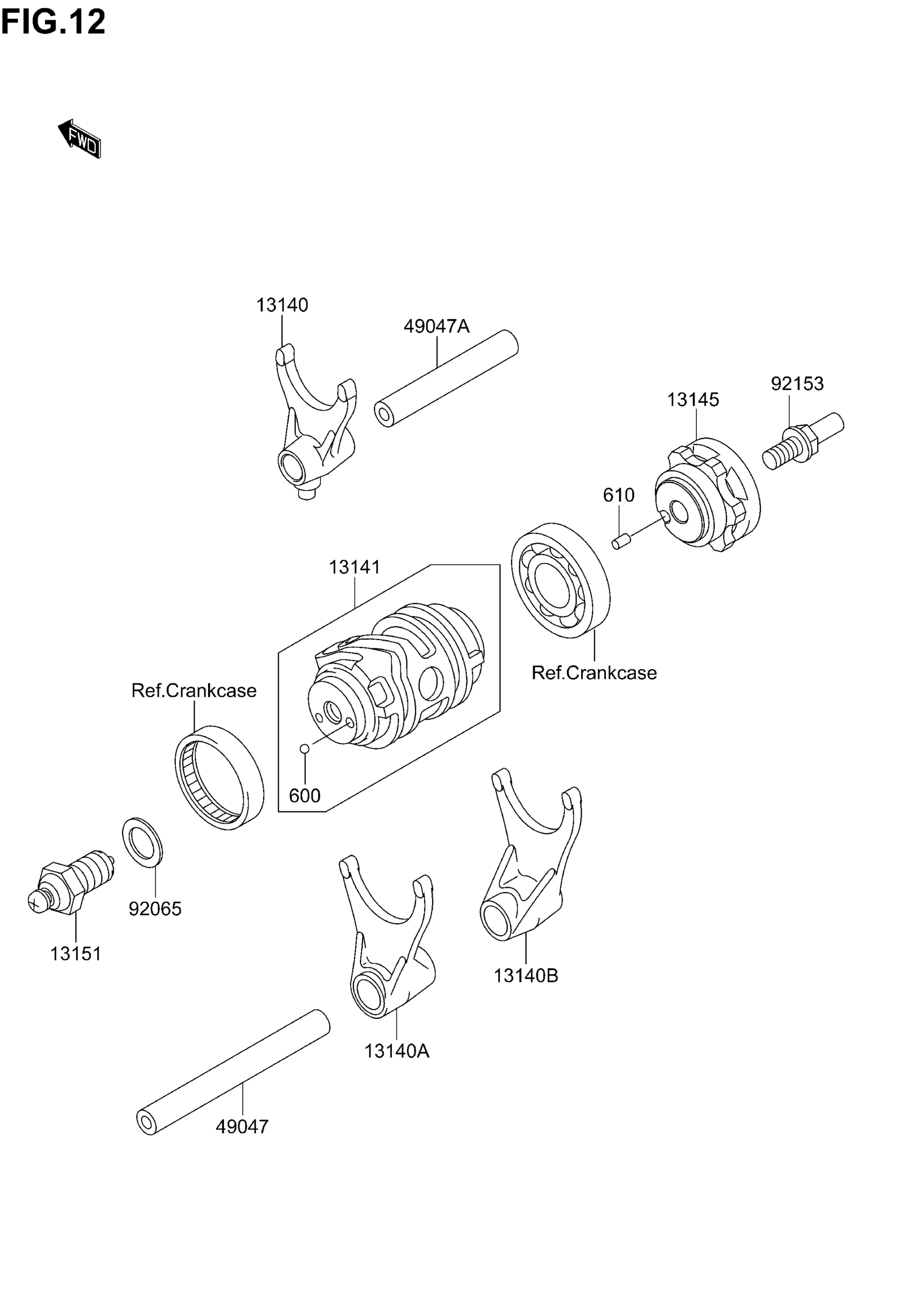

Find the part on the Gear Change Drum/shift Fork diagram for your 2005 Suzuki RM-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki RM-Z250 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

FORK-SHIFT,IN This part replaces K1314-00003.

K1314-00022

1
Out of stock

13140A

FORK-SHIFT,OUT LH This part replaces K1314-00004.

K1314-00023

1
Out of stock

13140B

FORK-SHIFT,OUT RH This part replaces K1314-00013.

K1314-00024

1
Out of stock

13141

DRUM-CHANGE

K1314-10002

1
Out of stock

13145

CAM-CHANGE DRUM This part replaces K1314-50005.

K1314-50024

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

K1315-10006

1
Out of stock

49047

ROD-SHIFT,OUTPUT,L=94.5

K4904-70003

1
Out of stock

49047A

ROD-SHIFT,INPUT,L=63

K4904-70004

1
Out of stock

92065

GASKET,10.5X16X1

KK920-65058

1

$3.27

In stock

92153

BOLT This part replaces K9215-30530.

K9215-31735

1
Out of stock

600

BALL-STEEL,7/32"

KK600-A0700

1
Out of stock

610

ROLLER,4X8

KK610-A0408

1
Out of stock
