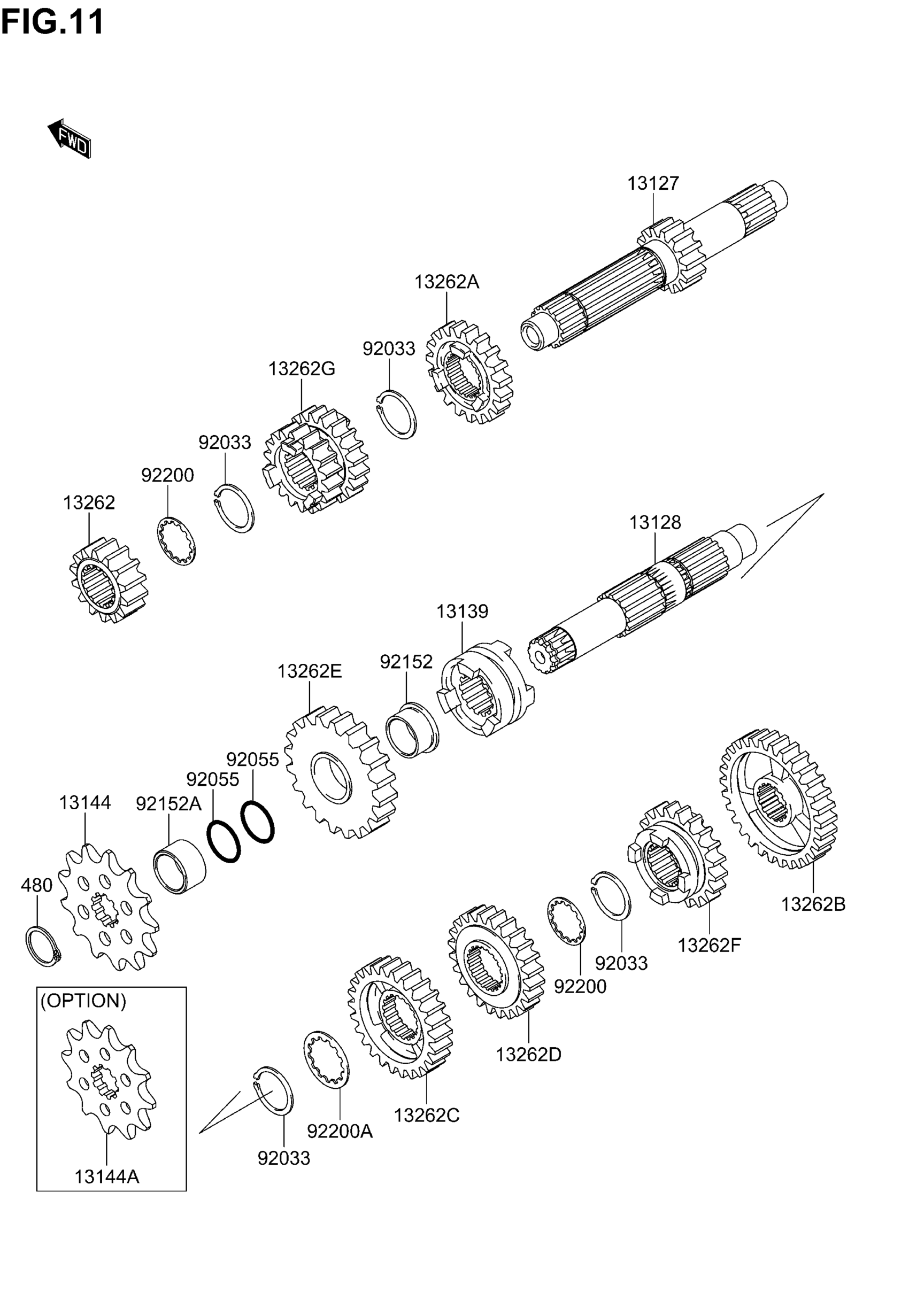

Suzuki RM-Z250 (2005) TRANSMISSION Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,14T

K1312-70004

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

K1312-80009

Unavailable

13139

SHIFTER,2ND-3RD

K1313-90006

Unavailable

13144

SPROCKET-OUTPUT,13T

K1314-40001

$54.37

13144A

SPROCKET-OUTPUT,12T | OPTION

K1314-40006

Unavailable

13262

GEAR,INPUT 2ND,14T

K1326-20018

$104.48

13262A

GEAR,INPUT 5TH,19T

K1326-20020

Unavailable

13262B

GEAR,OUTPUT LOW,30T

K1326-20022

Unavailable

13262C

GEAR,OUTPUT 3RD,26T

K1326-20024

Unavailable

13262D

GEAR,OUTPUT 4TH,24T

K1326-20115

$146.22

13262E

GEAR,OUTPUT 2ND,25T

K1326-20120

$143.48

13262F

GEAR,OUTPUT 5TH,20T

K1326-20184

Unavailable

13262G

GEAR,INPUT 3RD&4TH,18T&20T

K1326-20220

Unavailable

92033

RING-SNAP

K9203-31270

$8.47

92055

RING-O,19.5X1.5

KK920-55055

$4.08

92152

COLLAR,OUTPUT 2ND

K9215-20032

Unavailable

92152A

COLLAR,SPROCKET

K9215-20033

$21.63

92200

WASHER,24X28.6X1

K9220-00028

$1.45

92200A

WASHER,25X30.1X1

K9220-00064

Unavailable

480

CIRCLIP-TYPE-C,20MM

KK480-J2000

$1.87
