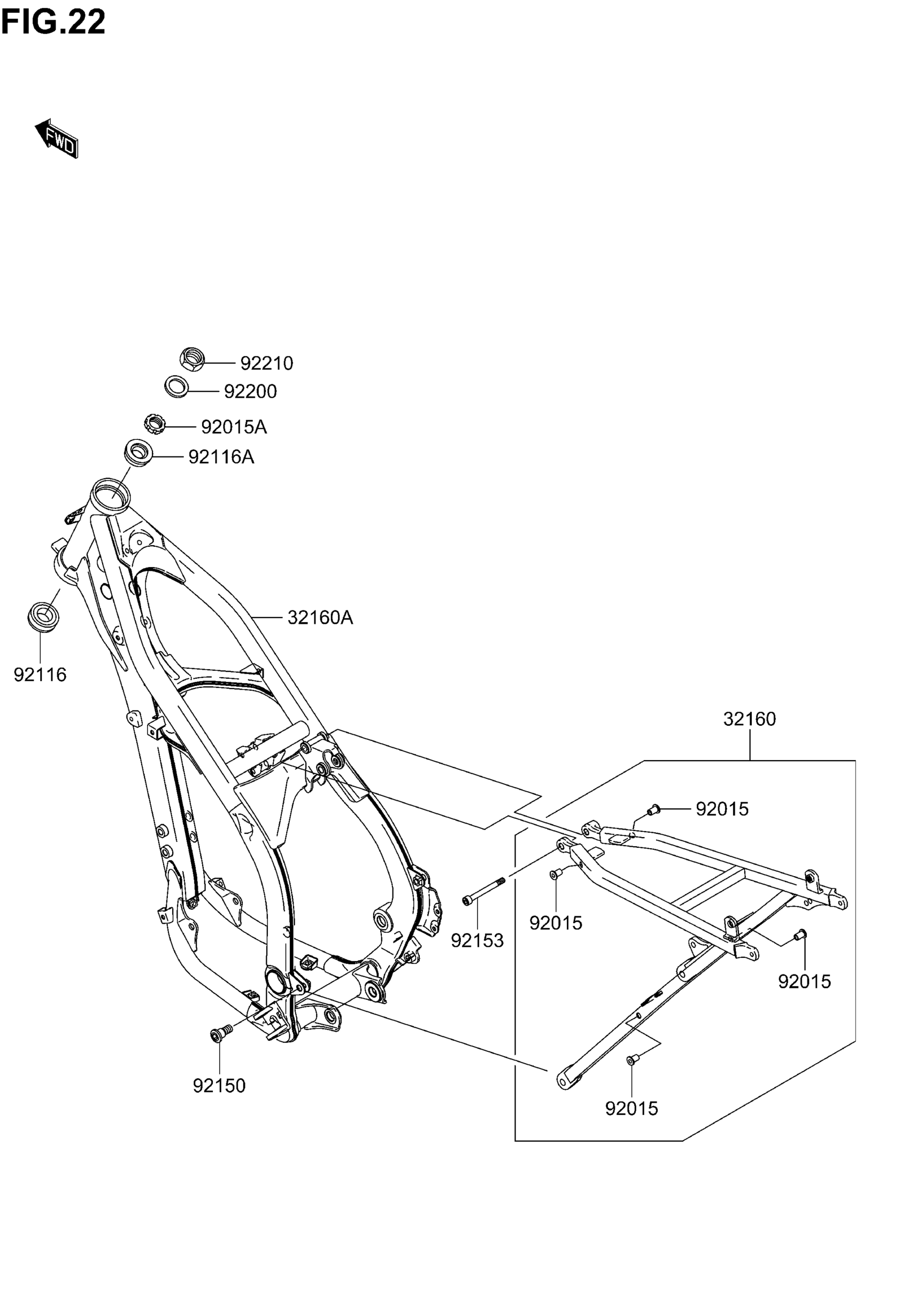

Suzuki RM-Z250 (2005) FRAME Diagram

#

Description

Price

32160

FRAME-COMP,RR

K3216-00087

Unavailable

32160A

FRAME-COMP,FR,M.F.GRAY

K3216-00102-466

Unavailable

92015

NUT,POP,6MM,L=15

K9201-51791

Unavailable

92015A

NUT,STEERING STEM,28MM

K9201-51861

$15.37

92116

BEARING-ROLLER,HI-CAP32006JRRS

K9211-61069

Unavailable

92116A

BEARING-ROLLER,HI-CAP320/28JRR

K9211-61076

Unavailable

92150

BOLT,SOCKET,8X2 This part replaces K9215-01839.

K9215-31621

$1.49

92153

BOLT,SOCKET,8X74

K9215-31124

Unavailable

92200

WASHER,25X36X2.3 This part replaces K9220-00023.

KK920-22250

Unavailable

92210

NUT,24MM

K9221-00066

$9.63
