2004 Suzuki RM-Z250 Wheel/tire Diagram

← All diagrams

Find the part on the Wheel/tire diagram for your 2004 Suzuki RM-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

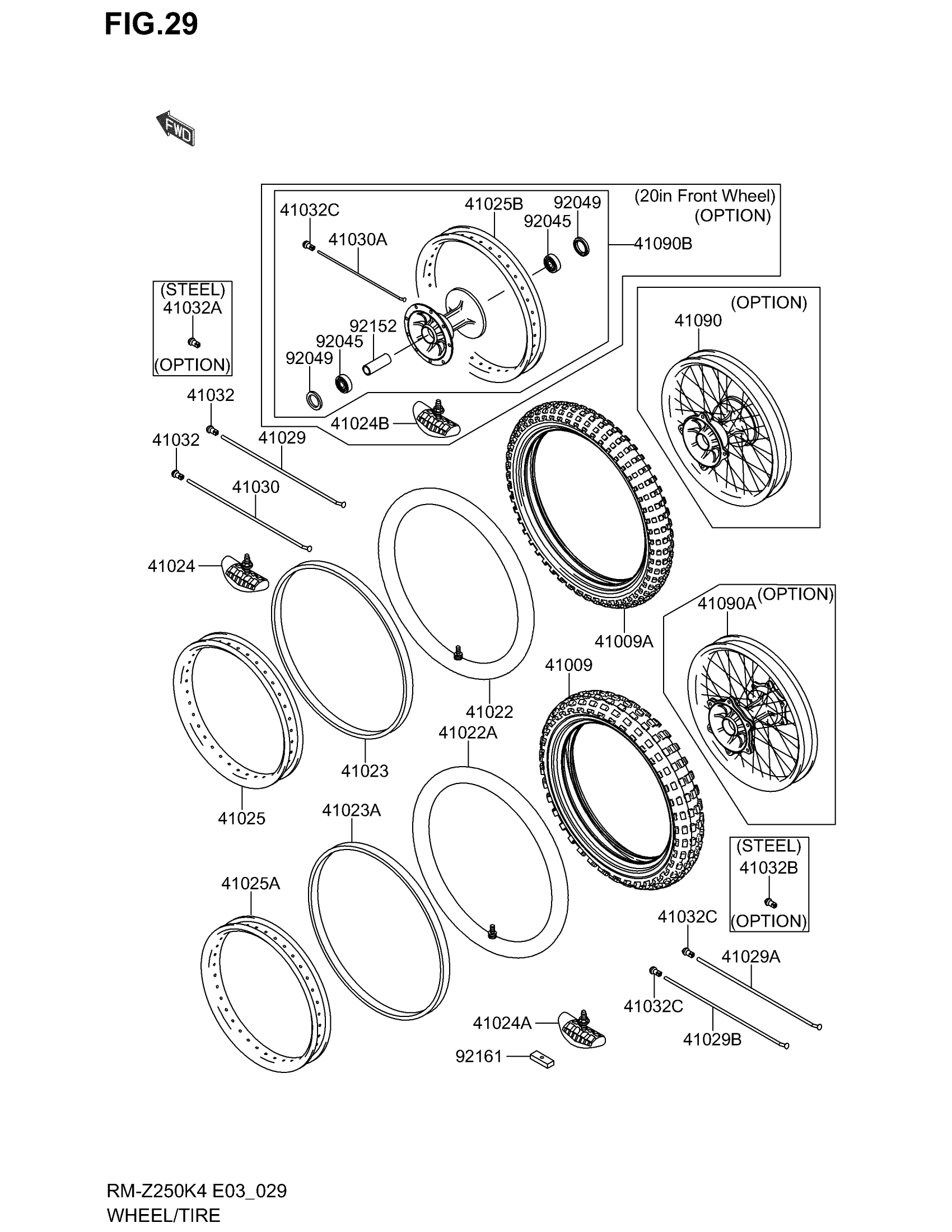

2004 Suzuki RM-Z250 Wheel/tire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41009

NO DESCRIPTION AVAILABLE This part replaces K4100-90011.

K4100-90045

1
Out of stock

41009A

TIRE,FR,80/100-21 51M,M601(BS)

K4100-91440

1
Out of stock

41022

TUBE-TIRE,MC90/90-21(BS)

K4102-21107

1
Out of stock

41022A

TUBE-TIRE,100/90-19(BS)

K4102-21142

1
Out of stock

41023

BAND-RIM,X-21(BS)

K4102-31009

1
Out of stock

41023A

BAND-RIM,110/90-19(BS)

K4102-31081

1
Out of stock

41024

STOPPER-RIM,1.60-M(DUNLOP)

KK410-24010

1
Out of stock

41024A

STOPPER-RIM,1.85-M(DUNLOP)

KK410-24011

1
Out of stock

41024B

STOPPER-RIM,1.85-M(DUNLOP) | OPTION

KK410-24011

1
Out of stock

41025

RIM,FR,1.60X21

K4102-50004

1
Out of stock

41025A

RIM,RR,1.85X19

K4102-50005

1
Out of stock

41025B

RIM,FR,1.85X20

K4102-51411

1
Out of stock

41029

SPOKE-INNER,FR,230MMX165D

K4102-90007

27
Out of stock

41029A

SPOKE-INNER,RR,202MMX160D

K4102-91204

27
Out of stock

41029B

SPOKE-INNER,RR,204MMX159D

K4102-91330

9
Out of stock

41030

SPOKE-OUTER,FR,231.5MMX170D

K4103-00003

9
Out of stock

41030A

SPOKE-OUTER,FR,217.5MMX170D

K4103-01172

36
Out of stock

41032

NIPPLE-SPOKE,ALUMINIUM

K4103-20002

36
Out of stock

41032A

NIPPLE SPOKE,8X | OPTION This part replaces K4103-21077.

K4103-20003

36
Out of stock

41032B

NIPPLE-SPOKE,STEEL | OPTION

K4103-21085

36
Out of stock

41032C

NIPPLE-SPOKE,ALUMINIUM

K4103-21086

72
Out of stock

41090

WHEEL,FR,1.60X21,ALUM NIPPLE | OPTION

K4109-00002

1
Out of stock

41090A

WHEEL,RR,1.85X19,ALUM NIPPLE | OPTION

K4109-00003

1
Out of stock

41090B

WHEEL,FR,1.85X20,ALUM NIPPLE | OPTION

K4109-01154

1
Out of stock

92045

BEARING-BALL,69042RS

K9204-51284

2
Out of stock

92049

SEAL-OIL,BJNC-2 25X37X5

K9204-91403

2
Out of stock

92152

COLLAR,FRONT BRAKE DRUM,L=72

K9215-21472

1
Out of stock

92161

DAMPER,RIM STOPPER

K9216-11184

1
Out of stock
