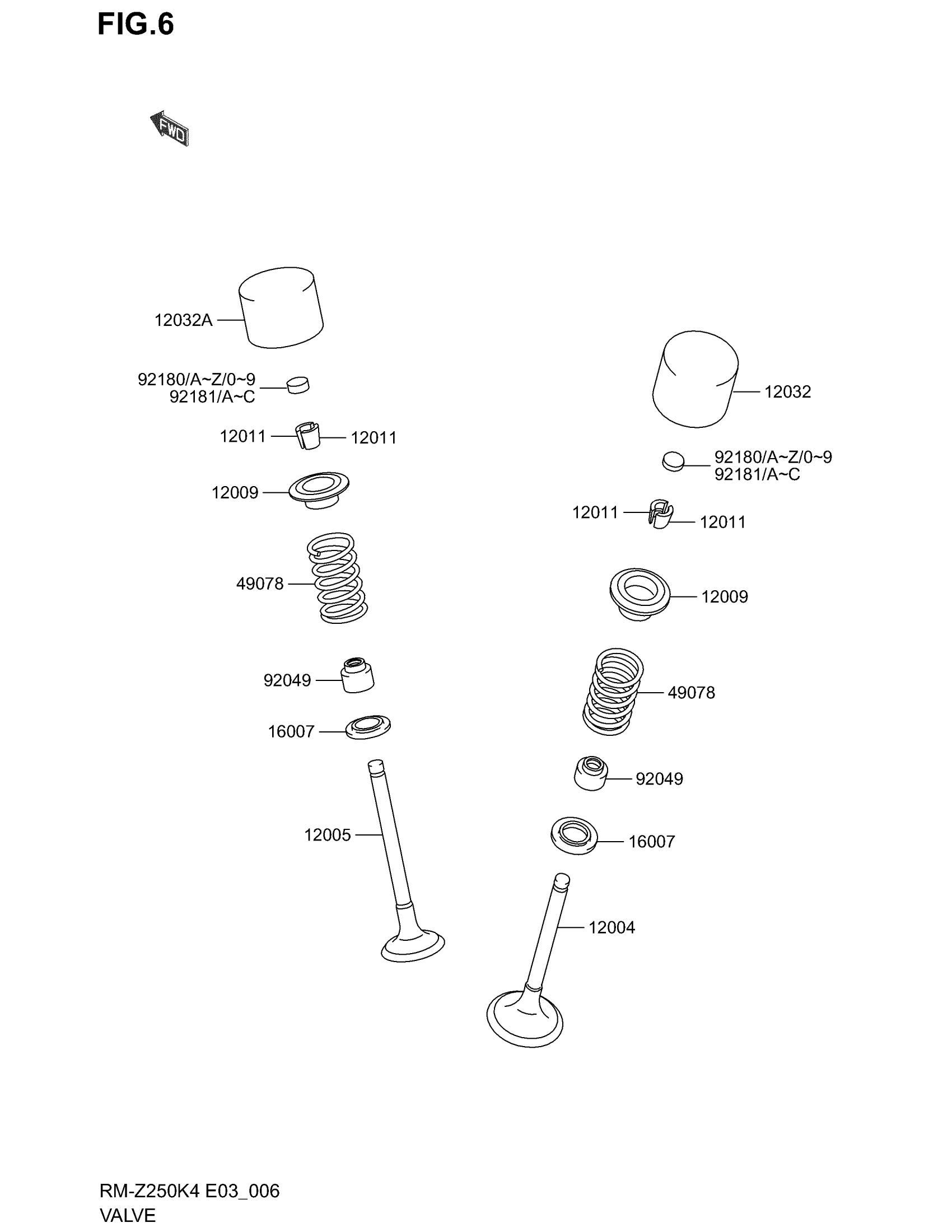

Suzuki RM-Z250 (2004) VALVE Diagram

#

Description
Price

12004

VALVE-INTAKE

K1200-40002

$80.97

12005

VALVE-EXHAUST

K1200-50002

$116.43

12009

RETAINER-VALVE SPRING,EXHAUST

K1200-91073

$8.78

12011

COLLET

K1201-11053

$4.27

12032

TAPPET,INTAKE

K1203-20002

$27.37

12032A

TAPPET,EX This part replaces K1203-20003.

K1203-20006

$34.98

16007

SEAT-SPRING

K1600-70002

$2.69

49078

SPRING-ENGINE VALVE

K4907-80003

$10.26

92049

SEAL-OIL

K9204-91349

$8.62

92180

SHIM,T=2.500 This part replaces K9218-00023.

K9218-00167

$14.13

92180A

SHIM,T=2.525 This part replaces K9218-00024.

K9218-00168

Unavailable

92180B

SHIM,T=2.550 This part replaces K9218-00025.

K9218-00169

Unavailable

92180C

SHIM,T=2.575 This part replaces K9218-00026.

K9218-00170

Unavailable

92180D

SHIM,T=2.600 This part replaces K9218-00027.

K9218-00171

Unavailable

92180E

SHIM,T=2.625 This part replaces K9218-00028.

K9218-00172

Unavailable

92180F

SHIM,T=2.650 This part replaces K9218-00029.

K9218-00173

Unavailable

92180G

SHIM,T=2.675 This part replaces K9218-00030.

K9218-00174

Unavailable

92180H

SHIM,T=2.700 This part replaces K9218-00031.

K9218-00175

Unavailable

92180I

SHIM,T=2.725 This part replaces K9218-00032.

K9218-00176

Unavailable

92180J

SHIM,T=2.750 This part replaces K9218-00033.

K9218-00177

Unavailable

92180K

SHIM,T=2.775 This part replaces K9218-00034.

K9218-00178

Unavailable

92180L

SHIM,T=2.800 This part replaces K9218-00035.

K9218-00179

Unavailable

92180M

SHIM,T=2.825 This part replaces K9218-00036.

K9218-00180

Unavailable

92180N

SHIM,T=2.850 This part replaces K9218-00037.

K9218-00181

Unavailable

92180O

SHIM,T=2.875 This part replaces K9218-00038.

K9218-00182

Unavailable

92180P

SHIM,T=2.900 This part replaces K9218-00039.

K9218-00183

Unavailable

92180Q

SHIM,T=2.925 This part replaces K9218-00040.

K9218-00184

Unavailable

92180R

SHIM,T=2.950 This part replaces K9218-00041.

K9218-00185

Unavailable

92180S

SHIM,T=2.975 This part replaces K9218-00042.

K9218-00186

Unavailable

92180T

SHIM,T=3.000 This part replaces K9218-00043.

K9218-00187

Unavailable

92180U

SHIM,T=3.025 This part replaces K9218-00044.

K9218-00188

Unavailable

92180V

SHIM,T=3.050 This part replaces K9218-00045.

K9218-00189

Unavailable

92180W

SHIM,T=3.075 This part replaces K9218-00046.

K9218-00190

Unavailable

92180X

SHIM,T=3.100 This part replaces K9218-00047.

K9218-00191

Unavailable

92180Y

SHIM,T=3.125 This part replaces K9218-00048.

K9218-00192

Unavailable

92180Z

SHIM,T=3.150 This part replaces K9218-00049.

K9218-00193

Unavailable

921800

SHIM,T=3.175 This part replaces K9218-00050.

K9218-00194

Unavailable

921801

SHIM,T=3.200 This part replaces K9218-00051.

K9218-00195

Unavailable

921802

SHIM,T=3.225 This part replaces K9218-00052.

K9218-00196

Unavailable

921803

SHIM,T=3.250 This part replaces K9218-00053.

K9218-00197

Unavailable

921804

SHIM,T=3.275 This part replaces K9218-00054.

K9218-00198

Unavailable

921805

SHIM,T=3.300 This part replaces K9218-00055.

K9218-00199

Unavailable

921806

SHIM,T=3.325 This part replaces K9218-00056.

K9218-00200

Unavailable

921807

SHIM,T=3.350 This part replaces K9218-00057.

K9218-00201

Unavailable

921808

SHIM,T=3.375

K9218-00058

Unavailable

921809

SHIM,T=3.400 This part replaces K9218-00059.

K9218-00203

Unavailable

92181

SHIM,T=3.425 This part replaces K9218-00060.

K9218-00204

Unavailable

92181A

SHIM,T=3.450 This part replaces K9218-00061.

K9218-00205

Unavailable

92181B

SHIM,T=3.475

K9218-00062

Unavailable

92181C

SHIM,T=3.500 This part replaces K9218-00063.

K9218-00207

Unavailable
