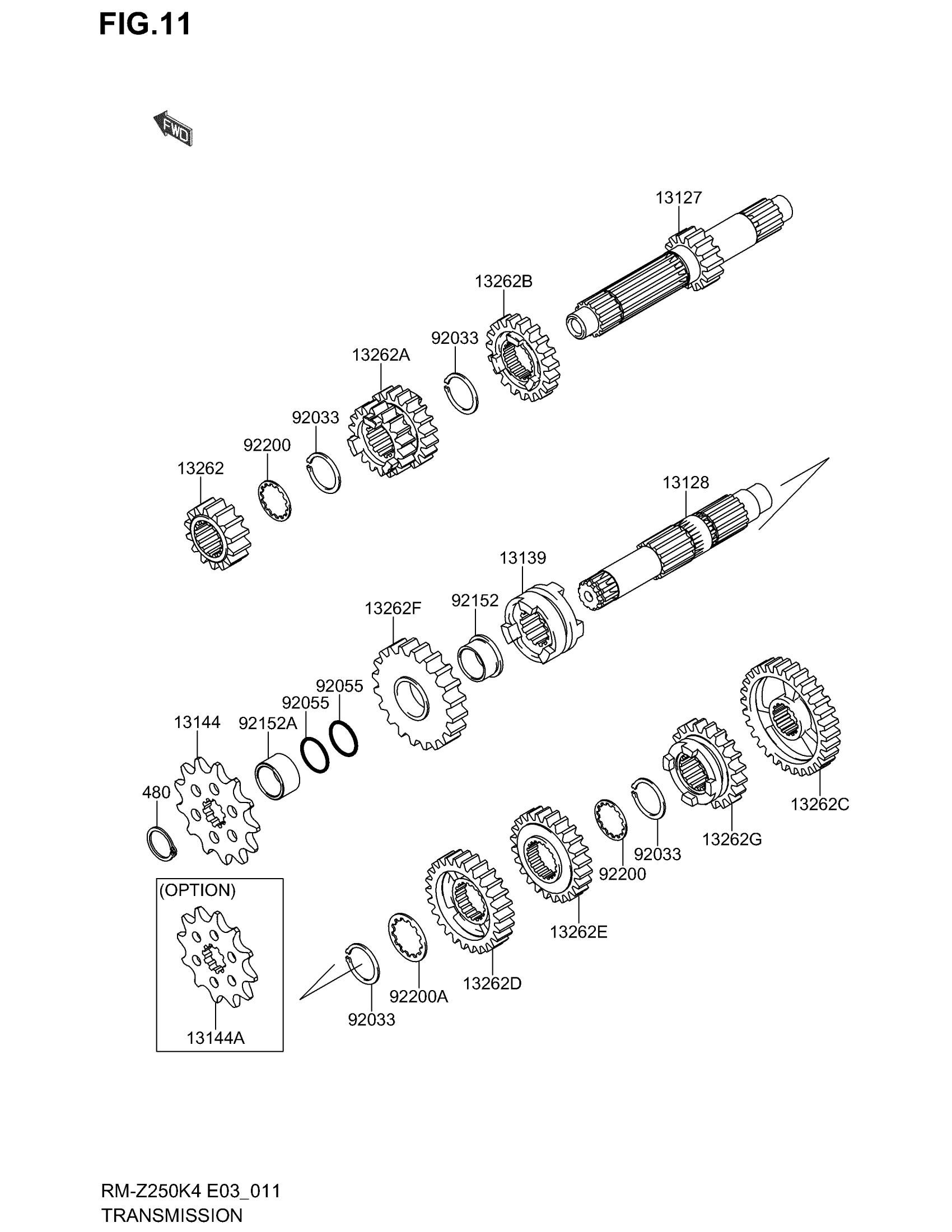

Suzuki RM-Z250 (2004) TRANSMISSION Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,14T

K1312-70004

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

K1312-80009

Unavailable

13139

SHIFTER,2ND-3RD

K1313-90006

$57.13

13144

SPROCKET-OUTPUT,13T

K1314-40001

$48.17

13144A

SPROCKET-OUTPUT,12T | OPTION

K1314-40006

Unavailable

13262

GEAR,INPUT 2ND,16T

K1326-20018

$93.03

13262A

GEAR,INPUT 3RD&4TH,18T&20T This part replaces K1326-20019.

K1326-20220

Unavailable

13262B

GEAR,INPUT 5TH,19T

K1326-20020

Unavailable

13262C

GEAR,OUTPUT LOW,30T

K1326-20022

Unavailable

13262D

GEAR,OUTPUT 3RD,26T

K1326-20024

Unavailable

13262E

GEAR,OUTPUT 4TH,24T

K1326-20115

$131.40

13262F

GEAR,OUTPUT 2ND,28T

K1326-20120

$128.95

13262G

GEAR,OUTPUT 5TH,20T This part replaces K1326-20123.

K1326-20184

Unavailable

92033

RING-SNAP

K9203-31270

$7.50

92055

RING-O,19.5X1.5

KK920-55055

$3.62

92152

COLLAR,OUTPUT 2ND

K9215-20032

Unavailable

92152A

COLLAR,SPROCKET

K9215-20033

$19.17

92200

WASHER,24X28.6X1

K9220-00028

$2.31

92200A

WASHER,25X30.1X1

K9220-00064

Unavailable

480

CIRCLIP-TYPE-C,20MM

KK480-J2000

$1.65
