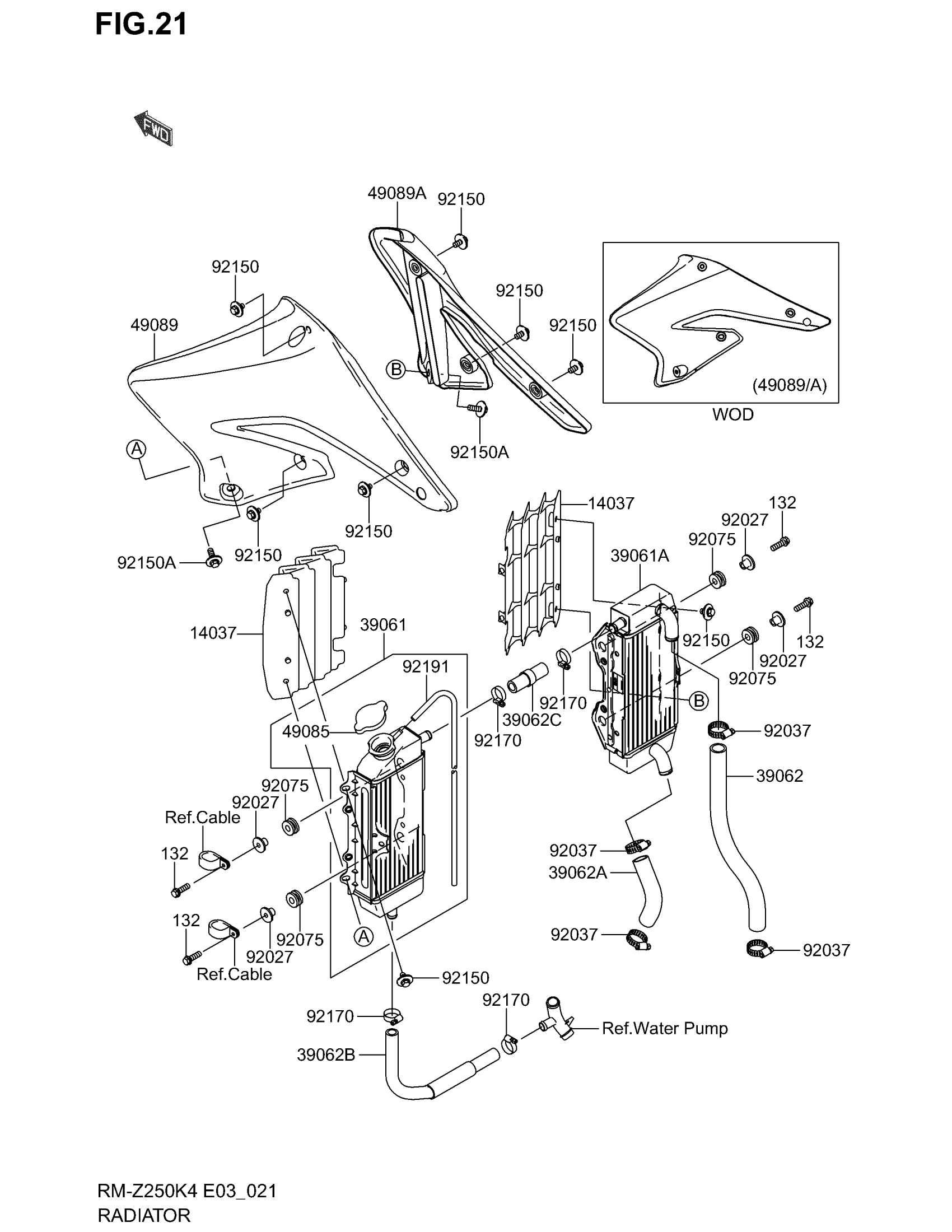

Suzuki RM-Z250 (2004) RADIATOR Diagram

SCREEN,WHITE

KK140-37001-2RZ

$18.90

RADIATOR-ASSY,LH

K3906-10003

Unavailable

RADIATOR-ASSY,RH

K3906-10004

Unavailable

HOSE-COOLING,HEAD-RADIATOR RH

K3906-20012

Unavailable

HOSE-COOLING,RADIATOR RH-P/W

K3906-20040

Unavailable

HOSE-COOLING,RADIATOR LH-P/W

K3906-20041

$25.50

HOSE-COOLING,RADIATOR L-R HIGH

K3906-20044

Unavailable

CAP-ASSY-PRESSURE,P1.1

K4908-51070

Unavailable

SHROUD-ENGINE,LH,C.YELLOW This part replaces K4908-90007-267.

K4908-90022-267

Unavailable

SHROUD-ENGINE,RH,C.YELLOW This part replaces K4908-90008-267.

K4908-90023-267

Unavailable

COLLAR,L=11.1

KK920-27194

Unavailable

CLAMP,COOLING HOSE

K9203-71589

Unavailable

DAMPER

KK920-75209

$3.67

BOLT,6X12

K9215-01435

$3.40

BOLT,6X20

K9215-01801

Unavailable

CLAMP

K9217-01283

Unavailable

TUBE,6X9X700

K9219-11211

Unavailable

NO DESCRIPTION AVAILABLE This part replaces KK132-L0620.

K132B-B0620

Unavailable
