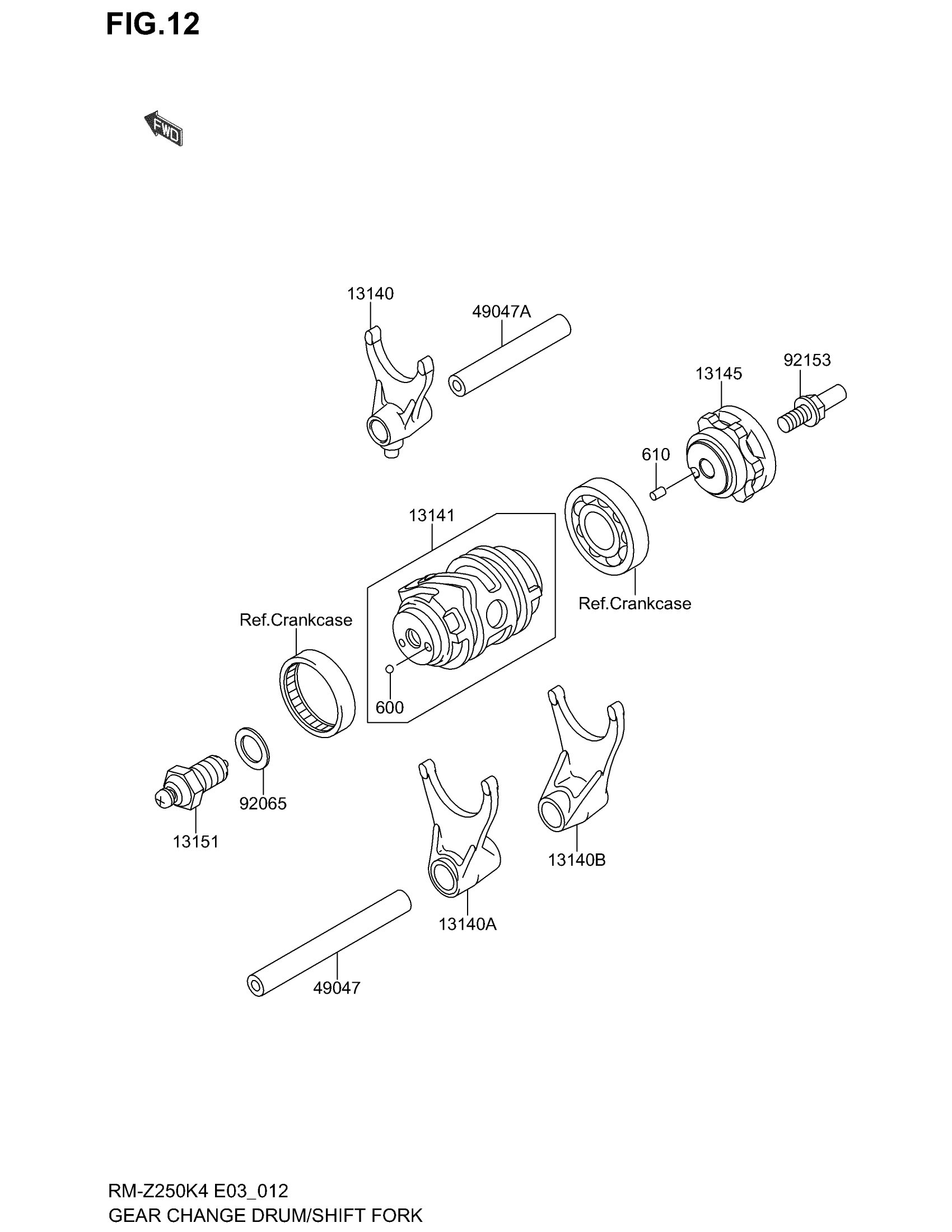

Suzuki RM-Z250 (2004) GEAR CHANGE DRUM/SHIFT FORK Diagram

Description

Price

13140

FORK-SHIFT,IN This part replaces K1314-00003.

K1314-00022

Unavailable

13140A

FORK-SHIFT,OUT LH This part replaces K1314-00004.

K1314-00023

$125.17

13140B

FORK-SHIFT,OUT RH This part replaces K1314-00013.

K1314-00024

$125.17

13141

DRUM-CHANGE

K1314-10002

Unavailable

13145

CAM-CHANGE DRUM This part replaces K1314-50005.

K1314-50024

Unavailable

13151

SWITCH-COMP,NEUTRAL

K1315-10006

$42.60

49047

ROD-SHIFT,OUTPUT,L=94.5

K4904-70003

Unavailable

49047A

ROD-SHIFT,INPUT,L=63

K4904-70004

Unavailable

92065

GASKET,10.5X16X1

KK920-65058

$3.00

92153

BOLT This part replaces K9215-30530.

K9215-31735

Unavailable

600

BALL-STEEL,7/32"

KK600-A0700

Unavailable

610

ROLLER,4X8

KK610-A0408

$1.49
