2004 Suzuki RM-Z250 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2004 Suzuki RM-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

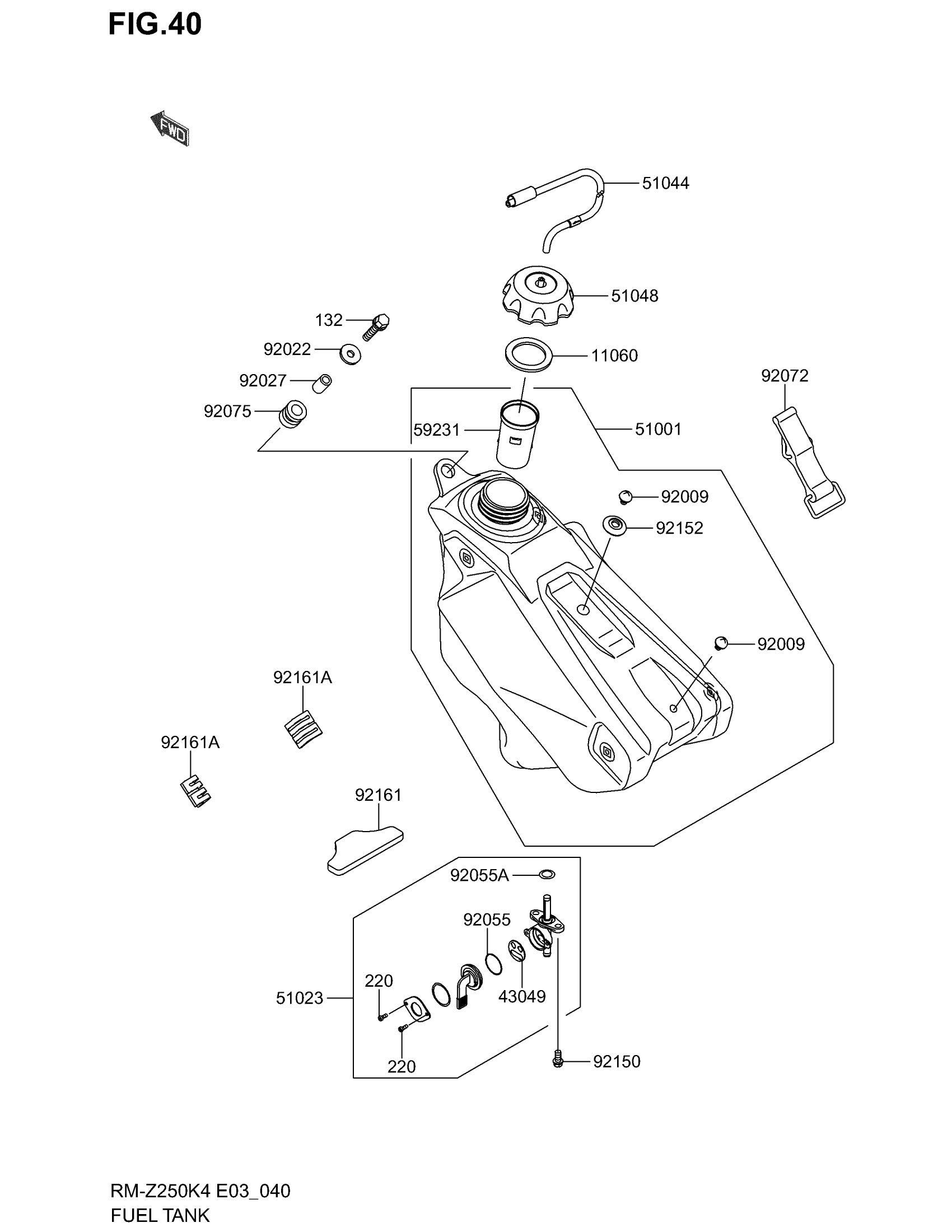

2004 Suzuki RM-Z250 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,FUEL TANK CAP

K1106-01340

1
Out of stock

43049

PACKING,TAP VALVE

K4304-91091

1
Out of stock

51001

TANK-COMP-FUEL,F.BLACK

KK510-01002-06Z

1
Out of stock

51023

TAP-ASSY,FUEL This part replaces K5102-31395.

K5102-30009

1
Out of stock

51044

TUBE-ASSY,TANK CAP This part replaces K5104-40005.

K5104-40019

1
Out of stock

51048

CAP ASSY,TANK,F This part replaces K5104-81124.

K5104-80014

1
Out of stock

59231

FILLER

K5923-11096

1
Out of stock

92009

SCREW,6MM

K9200-91971

2
Out of stock

92022

WASHER,6.5X24X2

K9202-21690

1
Out of stock

92027

COLLAR,6.8X10X14

K9202-71966

1
Out of stock

92055

RING-O,TAP LEVER

K9205-51419

1
Out of stock

92055A

RING-O,FUEL TAP PACKING

K9205-51700

1
Out of stock

92072

BAND,FUEL TANK

K9207-21229

1
Out of stock

92075

DAMPER

K9207-51787

1
Out of stock

92150

BOLT-FLANGED-SM This part replaces K9215-01599.

K132B-A0612

2
Out of stock

92152

COLLAR

K9215-21346

1
Out of stock

92161

DAMPER This part replaces K9216-10107.

K9216-10335

1
Out of stock

92161A

DAMPER,FUEL TANK,SIDE

K9216-11291

2
Out of stock

132

BOLT-FLANGED-SM This part replaces KK132-G0625.

K132B-A0625

1
Out of stock

220

SCREW-PAN-CROS

KK220-B0308

2
Out of stock
