2004 Suzuki RM-Z250 AIR Cleaner Diagram

← All diagrams

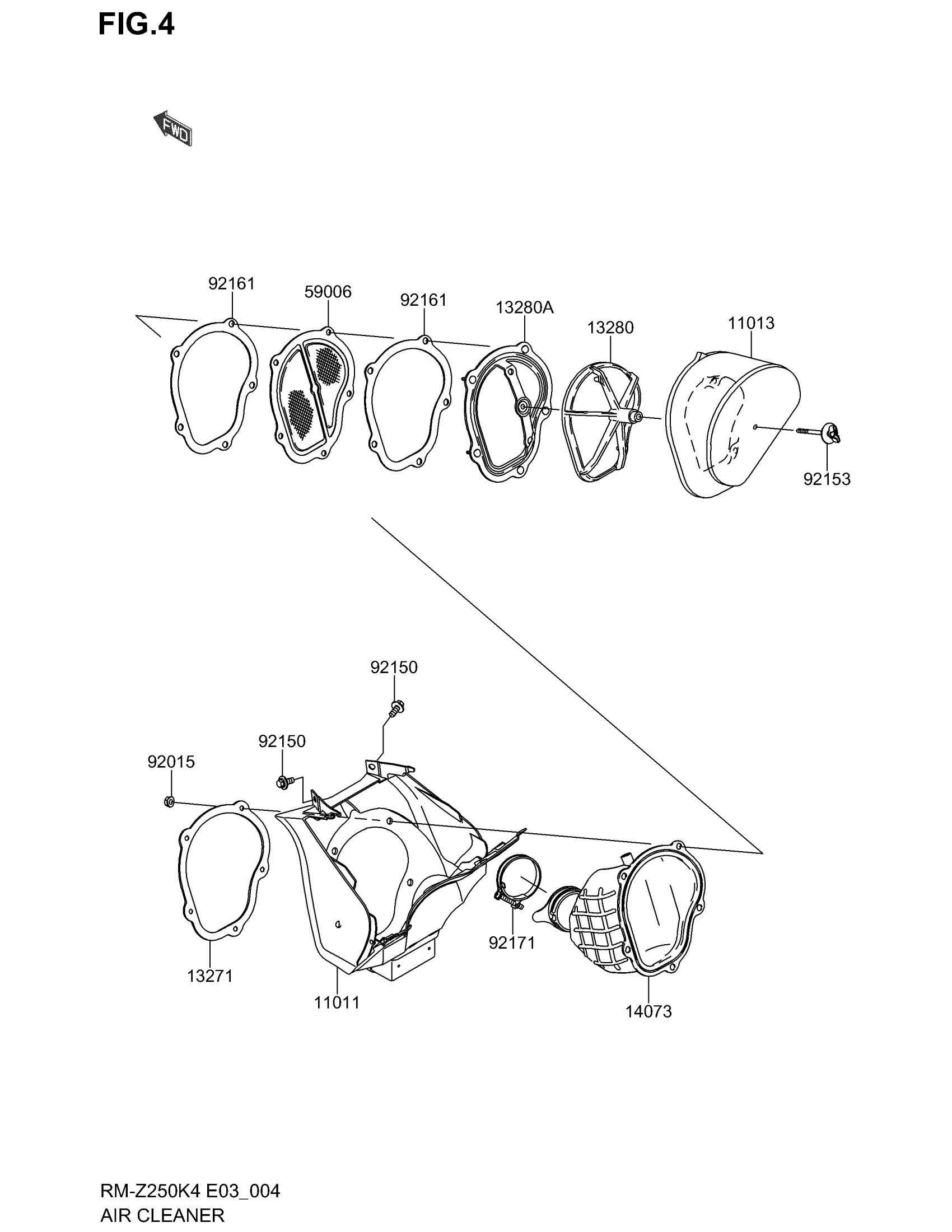

Find the part on the AIR Cleaner diagram for your 2004 Suzuki RM-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki RM-Z250 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011

CASE-AIR FILTER This part replaces K1101-10026.

K1101-10045

1
Out of stock

11013

ELEMENT-AIR FILTER

K1101-30008

1
Out of stock

13271

PLATE,DUCT FITTING

K1327-10059

1
Out of stock

13280

HOLDER,ELEMENT

K1328-00057

1
Out of stock

13280A

HOLDER

K1328-00058

1
Out of stock

14073

DUCT,AIR FILTER

K1407-30024

1
Out of stock

59006

ARRESTER-FLAME

K5900-60005

1
Out of stock

92015

NUT,FLANGED,5MM

K9201-51259

5
Out of stock

92150

BOLT,FLANGED,6X16

K9215-01506

2
Out of stock

92153

BOLT,6X75

K9215-30623

1
Out of stock

92161

DAMPER

K9216-10025

2
Out of stock

92171

CLAMP,CARBURETOR-DUCT

K9217-10087

1
Out of stock
