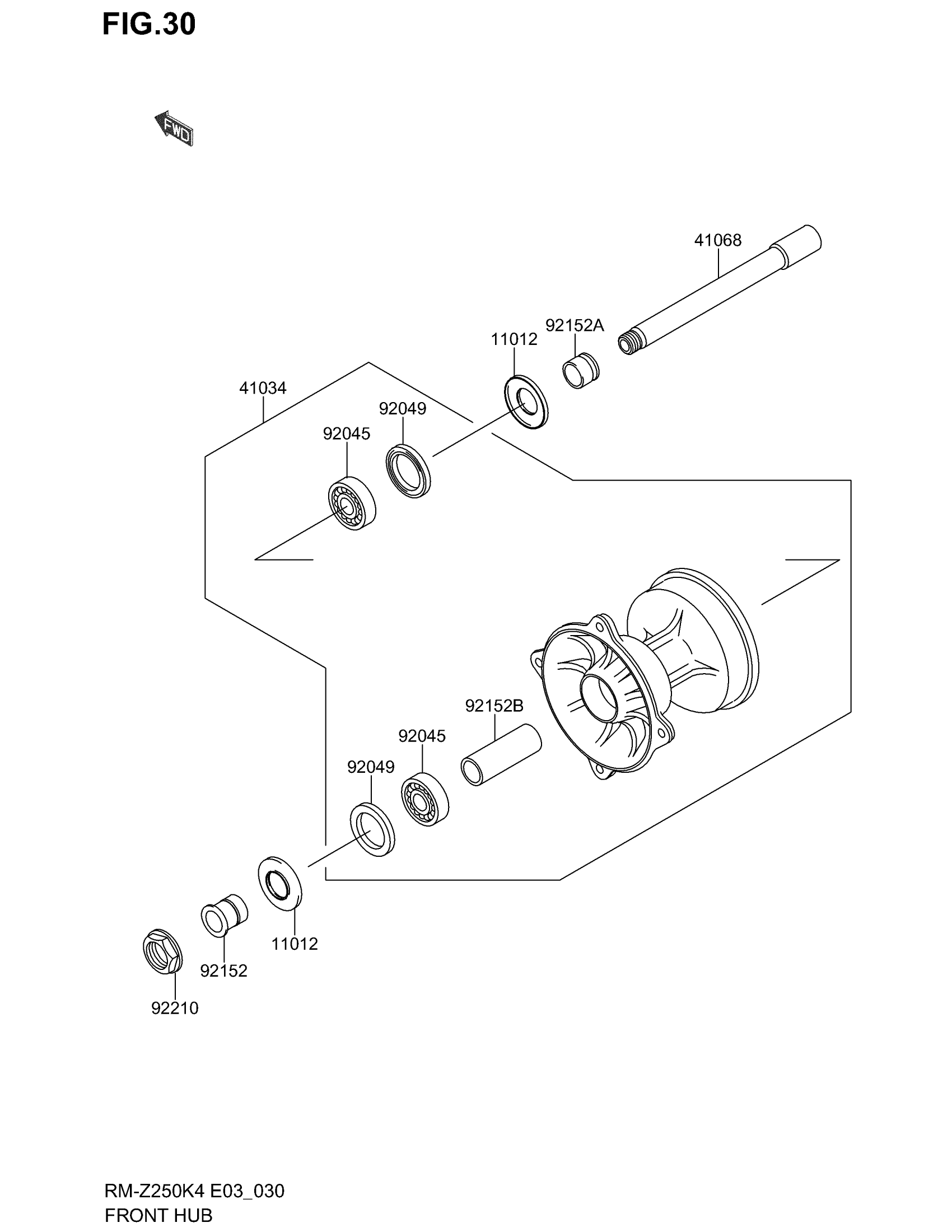

Suzuki RM-Z250 (2004) FRONT HUB Diagram

#

Description

Price

11012

CAP,AXLE

K1101-21581

Unavailable

41034

DRUM-ASSY,FRONT BRAKE

K4103-40018

Unavailable

41068

AXLE,FR

K4106-80004

Unavailable

92045

BEARING-BALL,69042RS

K9204-51284

Unavailable

92049

SEAL-OIL,BJNC-2 25X37X5

K9204-91403

Unavailable

92152

COLLAR,FR AXLE,LH,L=29

K9215-20110

Unavailable

92152A

COLLAR,FR AXLE,RH,L=19

K9215-20111

Unavailable

92152B

COLLAR,FRONT BRAKE DRUM,L=72

K9215-21472

Unavailable

92210

NUT,18MM

K9221-00065

$8.57
