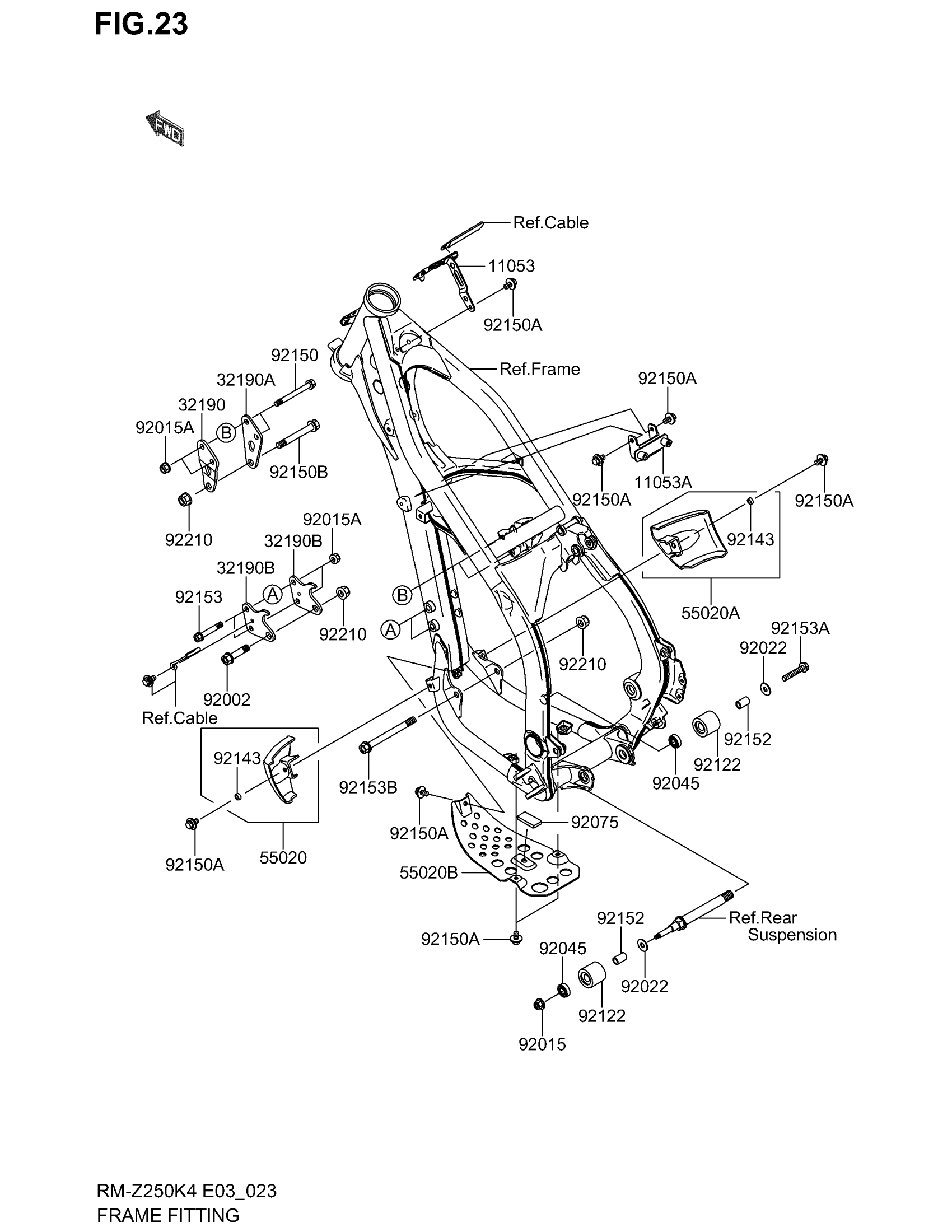

Suzuki RM-Z250 (2004) FRAME FITTING Diagram

#

Description
Price

11053

BRACKET,IGNITER

K1105-30123

Unavailable

11053A

BRACKET,IGINITION COIL This part replaces K1105-30473.

K1105-31300

Unavailable

32190

BRACKET-ENGINE,UPP,LH

K3219-00014

Unavailable

32190A

BRACKET-ENGINE,UPP,RH

K3219-00015

$10.00

32190B

BRACKET-ENGINE,FR

K3219-00070

Unavailable

55020

GUARD,ENGINE,FR,LH

K5502-00023

$22.30

55020A

GUARD,ENGINE,FR,RH

K5502-00024

$22.30

55020B

GUARD,ENGINE

K5502-00055

Unavailable

92002

BOLT,ARM,10MM

K9200-21576

Unavailable

92015

NUT,LOCK,FLANGED,6MM

K9201-51339

$5.33

92015A

NUT,8MM

K9201-51432

$5.00

92022

WASHER,8.5X22X1.5

K9202-21629

Unavailable

92045

BEARING-BALL,608LLU/2A

K9204-51009

Unavailable

92075

DAMPER

K9207-51054

Unavailable

92122

ROLLER,CHAIN GUIDE

K9212-21216

Unavailable

92143

COLLAR

K9214-31307

$3.03

92150

BOLT,FLANGED,8X50

K9215-01214

$5.17

92150A

BOLT,6X12

K9215-01435

$3.40

92150B

BOLT,FLANGED,10X42

K9215-01571

$9.45

92152

COLLAR,8.5X12.5X20.5

K9215-21340

Unavailable

92153

BOLT,FLANGED,8X78

K9215-30364

Unavailable

92153A

BOLT,FLANGED,8X45

K9215-30585

Unavailable

92153B

BOLT,FLANGED,10X110

K9215-30615

Unavailable

92210

NUT,LOCK,FLANGED,10MM

K9221-01080

$7.57
