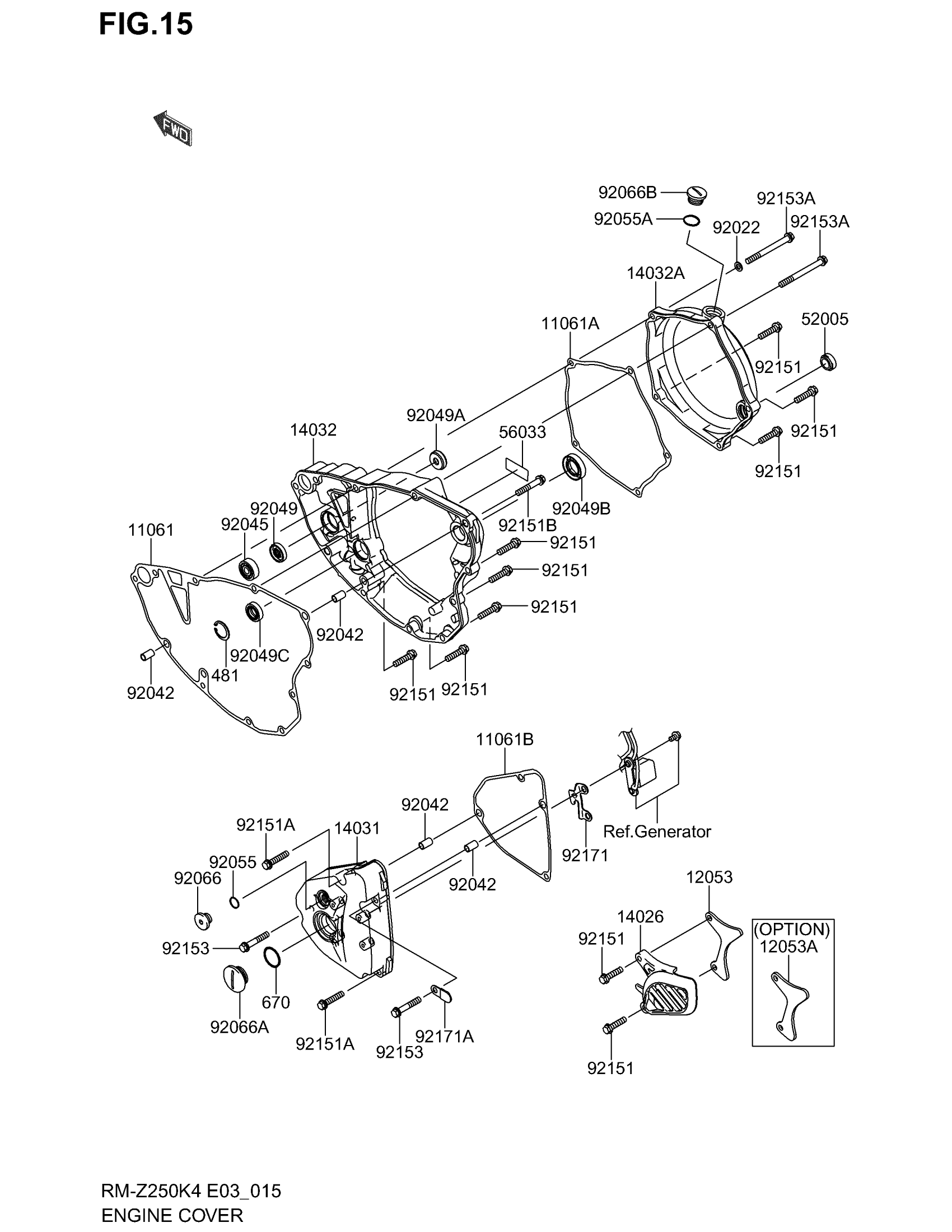

Suzuki RM-Z250 (2004) ENGINE COVER Diagram

GASKET,CLUTCH C This part replaces K1106-10030.

K1106-10324

$26.32

GASKET,CLUTCH COVER,OUTER

K1106-10031

$18.87

GASKET,GENERATO This part replaces K1106-10032.

K1106-10323

$18.87

GUIDE-CHAIN

K1205-30011

$9.53

GUIDE-CHAIN | OPTION

K1205-30018

Unavailable

COVER-CHAIN

K1402-60001

Unavailable

COVER-GENERATOR This part replaces K1403-10020.

K1403-10038

Unavailable

COVER,CLUTCH,IN This part replaces K1403-20011.

K1403-20057

$309.53

COVER-CLUTCH,OUTER This part replaces K1403-20029.

K1403-20050

Unavailable

GAUGE,OIL LEVEL

K5200-51009

$16.52

LABEL-MANUAL,OIL CAPACITY

K5603-30049

Unavailable

WASHER,6.2X11X1

KK920-22304

$2.76

PIN,DOWEL,6.3X8X14

KK920-42007

$4.03

BEARING-BALL,#628

K9204-51123

$24.10

SEAL-OIL,SD 8 22 5 ZS This part replaces K9204-90016.

K9204-90060

$9.63

SEAL-OIL This part replaces K9204-90021.

K9204-90061

$9.45

SEAL-OIL,SB18307

KK920-49013

$12.07

SEAL-OIL,TC13225.5

K9204-91519

$11.00

RING-O,13X1.9 This part replaces K9205-51141.

K9205-51021

$5.83

RING-O

K9205-51146

$7.20

PLUG,12X8

K9206-60014

Unavailable

PLUG

K9206-61414

Unavailable

PLUG

K9206-61456

$12.07

BOLT,6X25 This part replaces K9215-11130.

K9215-11930

$2.23

BOLT,6X30 This part replaces K9215-11134.

K132B-C0630

$1.49

BOLT,6X35

K9215-11135

Unavailable

BOLT,6X35

K9215-30668

$2.59

BOLT,6X65

K9215-30697

Unavailable

CLAMP,HARNESS

K9217-10195

Unavailable

CLAMP

K9217-10295

Unavailable

CIRCLIP

KK481-J2200

Unavailable

O RING,22MM

KK670-B2022

$3.87
