2009 Suzuki RM-85 Rear Swinging ARM Diagram

← All diagrams

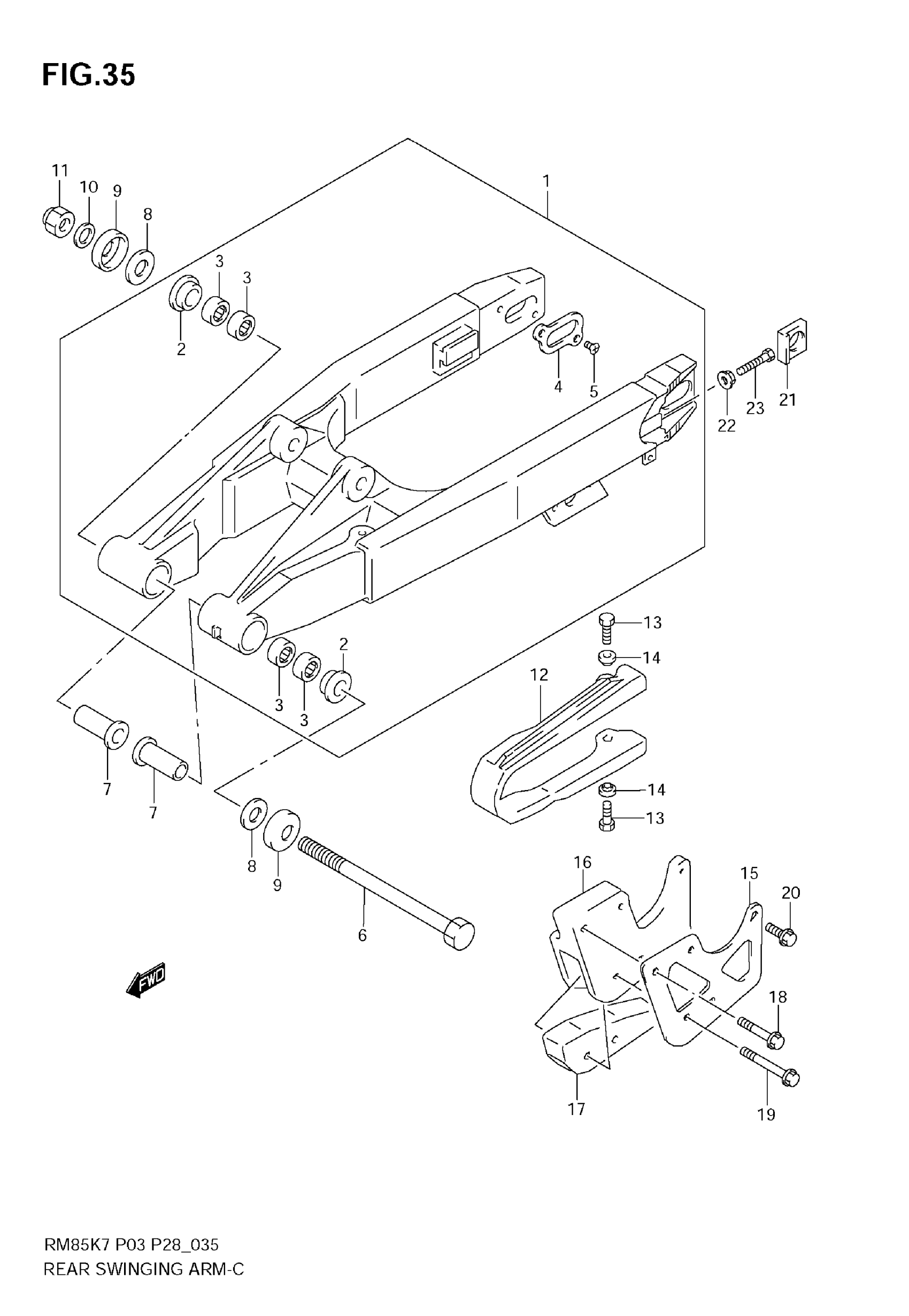

Find the part on the Rear Swinging ARM diagram for your 2009 Suzuki RM-85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki RM-85 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR | RM85K7/K8/K9

61000-03BB0

1
Out of stock

1

SWINGING ARM ASSY, REAR | RM85LK7/LK8/LK9; Includes Item(s) 2 - 5 This part replaces 61000-03BC0.

61000-03BE0

1
Out of stock

2

BUSHING

61261-02B00

2
Out of stock

3

.BEARING This part replaces 09263-17039.

09263-17058

4
Out of stock

4

PLATE, SWINGINGARM REAR

61128-03B70

2
Out of stock

5

SCREW, PLATE

02122-0410B

4
Out of stock

6

SHAFT, PIVOT

61211-02B40

1
Out of stock

7

SPACER, PIVOT

61251-02B40

2
Out of stock

8

THRUST WASHER

08211-12282

2
Out of stock

9

COVER SWGARM PIVOT This part replaces 61262-03B00.

61262-03B01

2
Out of stock

10

WASHER

08322-0112B

1
Out of stock

11

NUT

08319-2112A

1
Out of stock

12

BUFFER, CHAIN TOUCH DEFENSE

61273-02B20

1
Out of stock

13

BOLT

09103-06234

2
Out of stock

14

WASHER

09169-06057

2
Out of stock

15

PLATE, GUIDE CHAIN OUTER

61342-02B40

1
Out of stock

16

GUIDE, CHAIN

61343-02B40

1
Out of stock

17

DEFENSE, CHAIN GUIDE

61348-02B20

1
Out of stock

18

BOLT, UPPER (6X30)

09103-06251

2
Out of stock

19

BOLT, LOWER (6X40)

09103-06241

2
Out of stock

20

BOLT, REAR (6X16)

09103-06234

1
Out of stock

21

WASHER, CHAIN ADJUSTER

61445-03B00

2
Out of stock

22

NUT, ADJUSTER

09159-08034

2

$1.73

In stock

23

BOLT, ADJUSTER

09100-08301

2
Out of stock
