2009 Suzuki RM-85 Rear Cushion Lever Diagram

← All diagrams

Find the part on the Rear Cushion Lever diagram for your 2009 Suzuki RM-85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

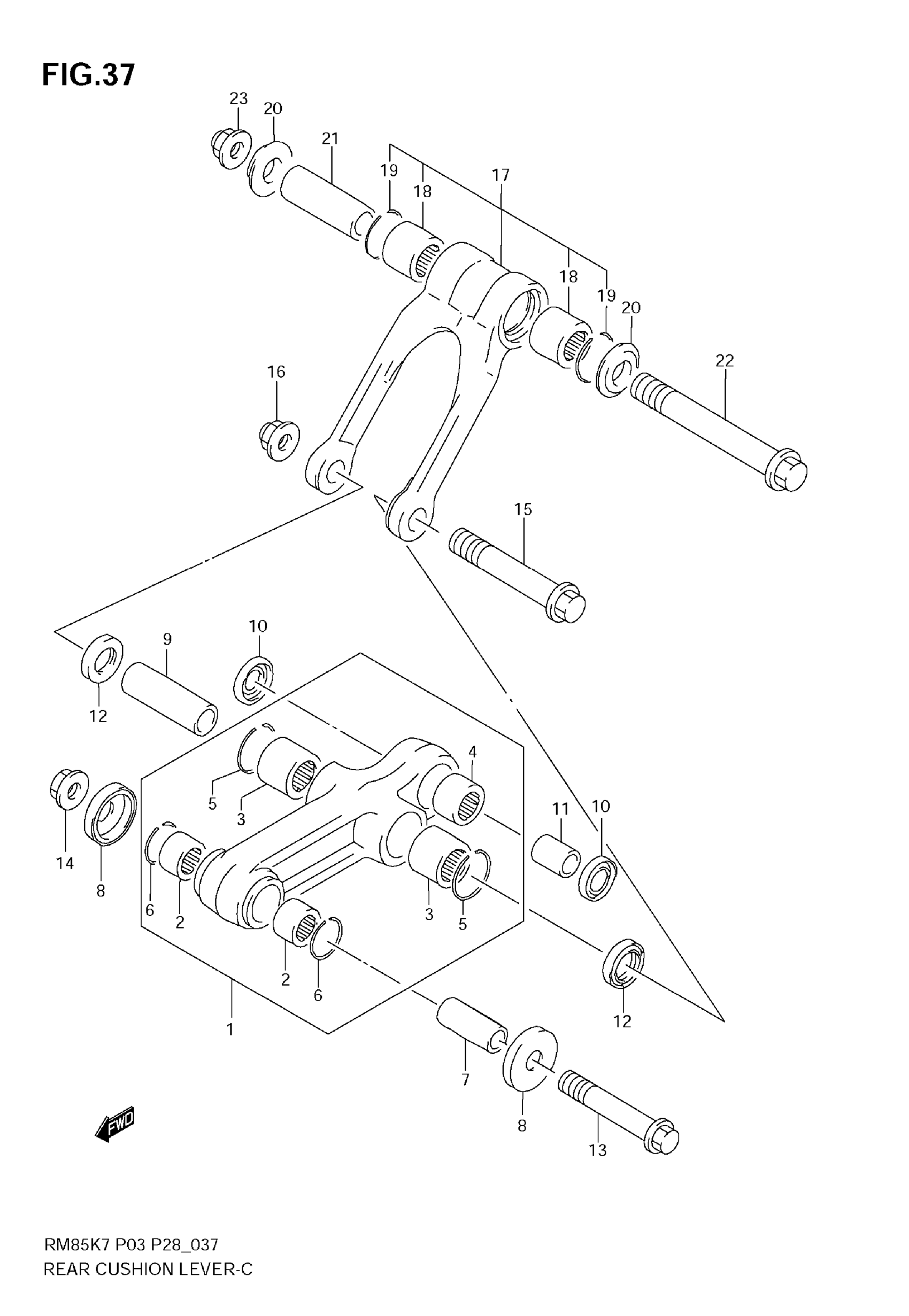

2009 Suzuki RM-85 Rear Cushion Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 6

62600-03890

1
Out of stock

2

BEARING, FRONT (14X20X12)

09263-14027

2
Out of stock

3

.BEARING This part replaces 09263-17039.

09263-17058

2
Out of stock

4

BEARING, REAR (20X26X12)

09263-20083

1
Out of stock

5

RING, STOPPER

62657-34A01

2
Out of stock

6

RING, STOPPER FRONT

09381-20004

2
Out of stock

7

SPACER, RR CUSHION LEVER FR

62317-02B40

1
Out of stock

8

OIL SEAL This part replaces 62162-03B00.

62162-03B01

2
Out of stock

9

SPACER, CENTER (12X17X54)

62626-02B40

1
Out of stock

10

DUST SEAL, REAR

09284-20001

2
Out of stock

11

SPACER, REAR

62684-36E00

1
Out of stock

12

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

2
Out of stock

13

BOLT, FRONT (10X64)

62658-02B40

1
Out of stock

14

NUT

09159-10115

1
Out of stock

15

SHAFT, CENTER (12X87)

62621-02B40

1
Out of stock

16

NUT

08319-3112A

1
Out of stock

17

ROD SET, CUSHION LEVER | Includes Item(s) 18 - 19

62600-03880

1
Out of stock

18

.BEARING This part replaces 09263-17039.

09263-17058

2
Out of stock

19

RING, STOPPER

62657-34A01

2
Out of stock

20

SPACER, ROD (12X31X4)

62647-02B40

2
Out of stock

21

SPACER, ROD (12X17X50)

62646-02B40

1
Out of stock

22

BOLT (12X115)

62622-02B40

1
Out of stock

23

NUT

08319-3112A

1
Out of stock
