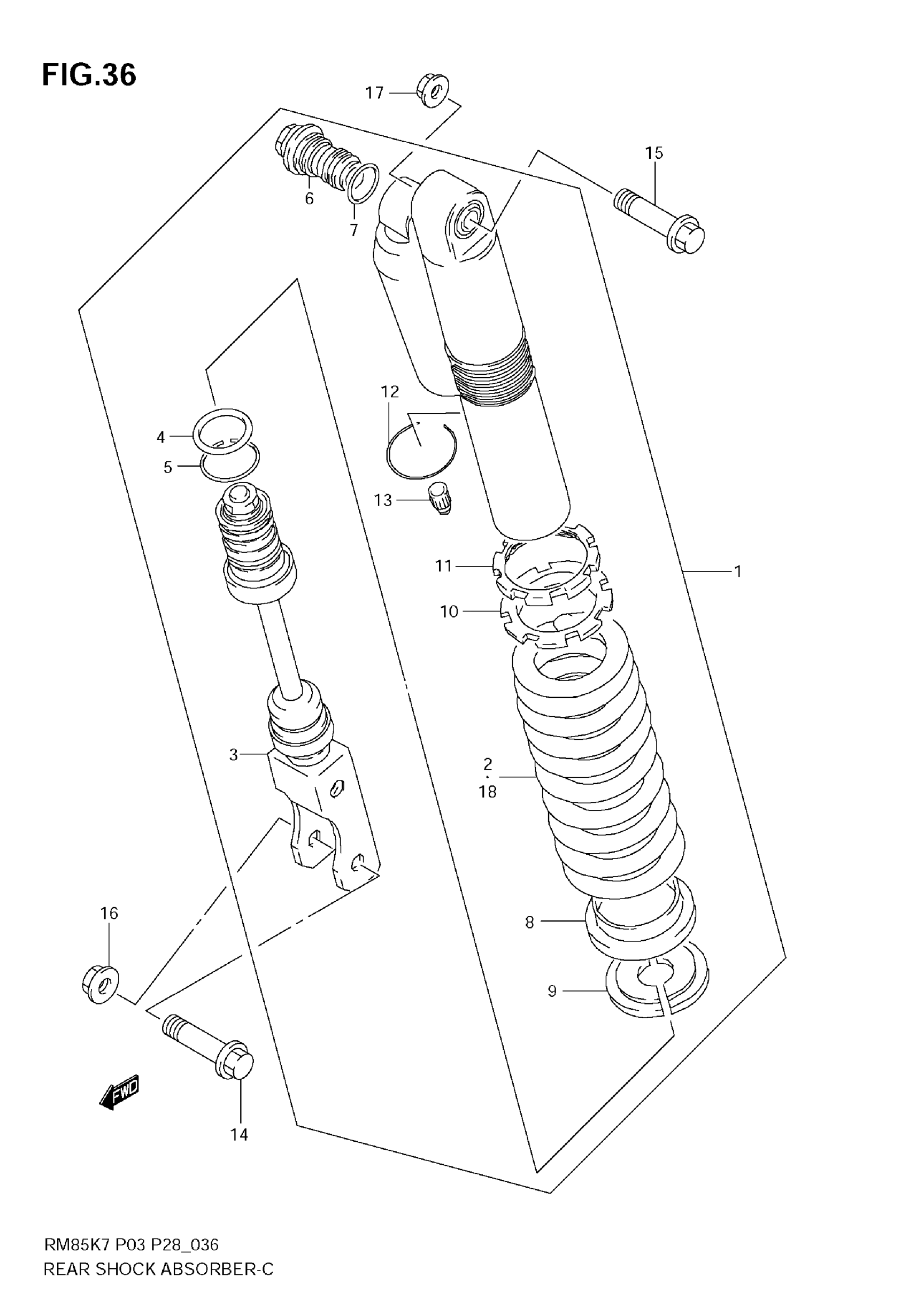

Suzuki RM-85 (2009) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK | RM85K7/K8/K9 E3

62100-03BD0-YKS

Unavailable

1

ABSORBER ASSY, REAR SHOCK | RM85K7/K8/K9 E28

62100-03BC0-YKS

Unavailable

1

ABSORBER ASSY, REAR SHOCK | RM85LK7/LK8/LK9 E3

62100-03BF0-YKS

Unavailable

1

ABSORBER ASSY, REAR SHOCK | RM85LK7/LK8/LK9 E28; Includes Item(s) 2 - 13

62100-03BE0-YKS

Unavailable

2

SPRING, REAR (K=4.6) | RM85K7/K8/K9

62211-03B90

Unavailable

2

SPRING, REAR (K=4.8) | RM85LK7/LK8/LK9

62211-03BA0

Unavailable

3

ROD, PISTON

62120-03BB0

Unavailable

4

O RING

62153-03BB0

Unavailable

5

RING, ROD STOPPER

62279-03BB0

Unavailable

6

BOLT, PLUG

62130-03B30

Unavailable

7

O RING

51177-36E20

$4.10

8

SEAT, SPRING

62249-17C00

$29.83

9

SEAT STOPPER, SPRING

62225-17C00

$32.67

10

ADJUSTER, SPRING

62191-19C00

Unavailable

11

NUT, SPRING ADJUSTER

62194-03BB0

Unavailable

12

RING, STOPPER

62278-03B30

Unavailable

13

CAP

51294-20400

$7.37

14

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

$7.48

15

BOLT, UPPER

62648-14500

$4.34

16

NUT, LOWER

09159-10067

$6.11

17

NUT, UPPER

09159-10115

$3.55

18

SPRING, REAR (K=4.4) (SOFT) | OPT RM85K7/K8

62211-03B80

Unavailable

18

SPRING, REAR (K=4.8) (HARD) | OPT RM85K7/K8

62211-03BA0

Unavailable

18

SPRING, REAR (K=4.6) (SOFT) | OPT RM85LK7/LK8

62211-03B90

Unavailable

18

SPRING, REAR (K=5.0) (HARD) | OPT RM85LK7/LK8

62211-03BB0

Unavailable
