2009 Suzuki RM-85 Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 2009 Suzuki RM-85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

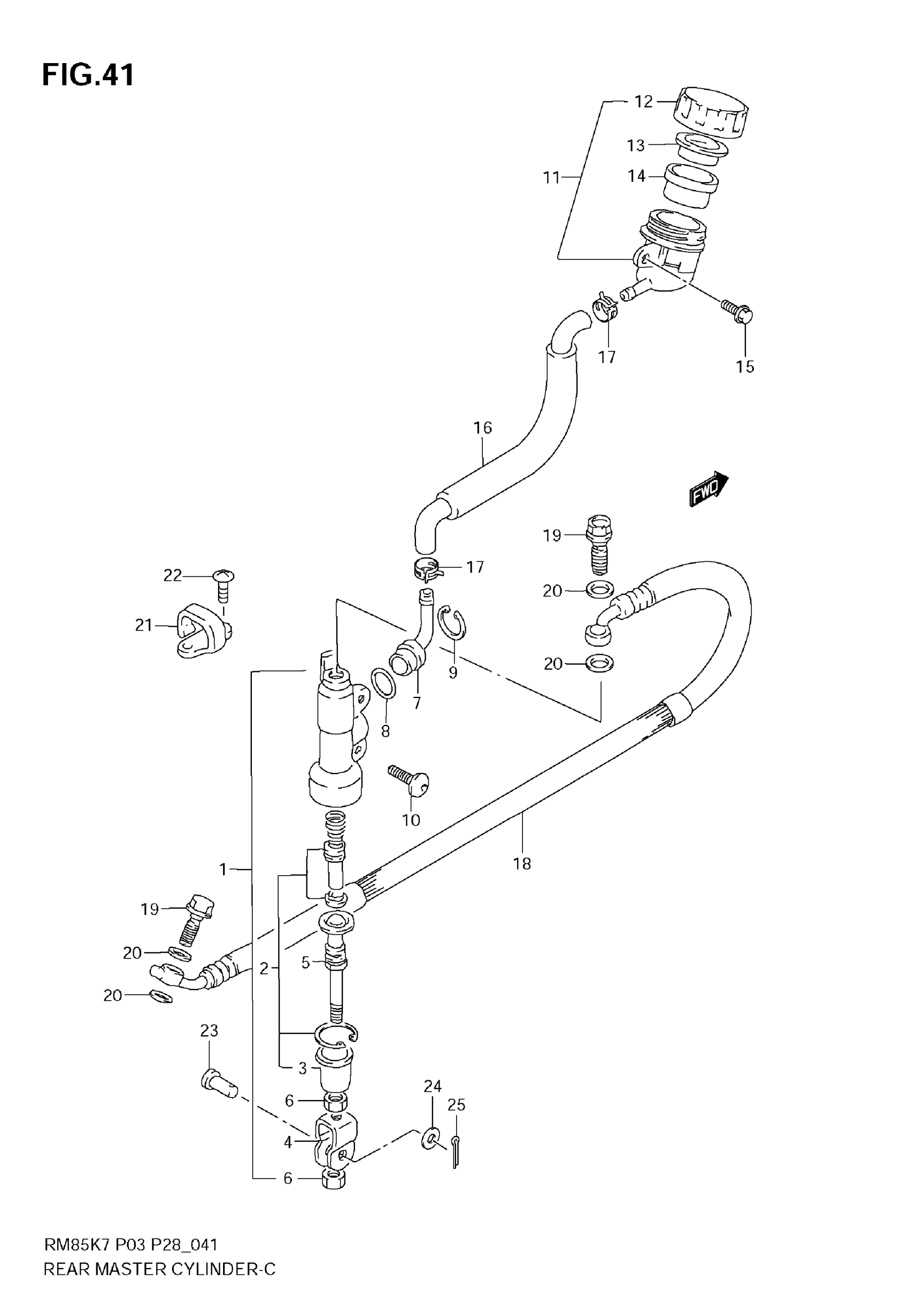

2009 Suzuki RM-85 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-03B00

1
Out of stock

2

1

$32.18

In stock

3

.BOOT

69691-00A00

1
Out of stock

4

YOKE

69692-37F20

1
Out of stock

5

ROD, PUSH

69670-40A00

1
Out of stock

6

NUT

69693-05A00

2
Out of stock

7

CONNECTOR

69672-00B20

1
Out of stock

8

O RING

69686-34200

1
Out of stock

9

CIRCLIP

69674-00B20

1
Out of stock

10

BOLT

09139-06139

2
Out of stock

11

TANK ASSY, RESERVOIR | Includes Item(s) 12 - 14

69740-03D00

1
Out of stock

12

CAP

69669-03D00

1
Out of stock

13

PLATE

69668-00B20

1
Out of stock

14

DIAPHRAGM

69667-00B20

1
Out of stock

15

BOLT

09103-06233

1
Out of stock

16

HOSE, RESERVOIR TANK

69731-02B50

1
Out of stock

17

CLAMP

69735-00B20

2

$5.43

In stock

18

HOSE, REAR BRAKE | RM85K7/K8/K9

69480-03B60

1
Out of stock

18

HOSE, REAR BRAKE | RM85LK7/LK8/LK9

69480-03B70

1
Out of stock

19

BOLT (10X1.25X22)

09360-10062

2
Out of stock

20

WASHER (10X15X1.5)

09161-10009

4
Out of stock

21

CLAMP, REAR BRAKE HOSE

61196-00B21

1
Out of stock

22

SCREW This part replaces 02142-0510A.

02142-0510B

2
Out of stock

23

PIN

09200-08048

1
Out of stock

24

WASHER

09160-08090

1
Out of stock

25

PIN, COTTER

04111-2015A

1
Out of stock
