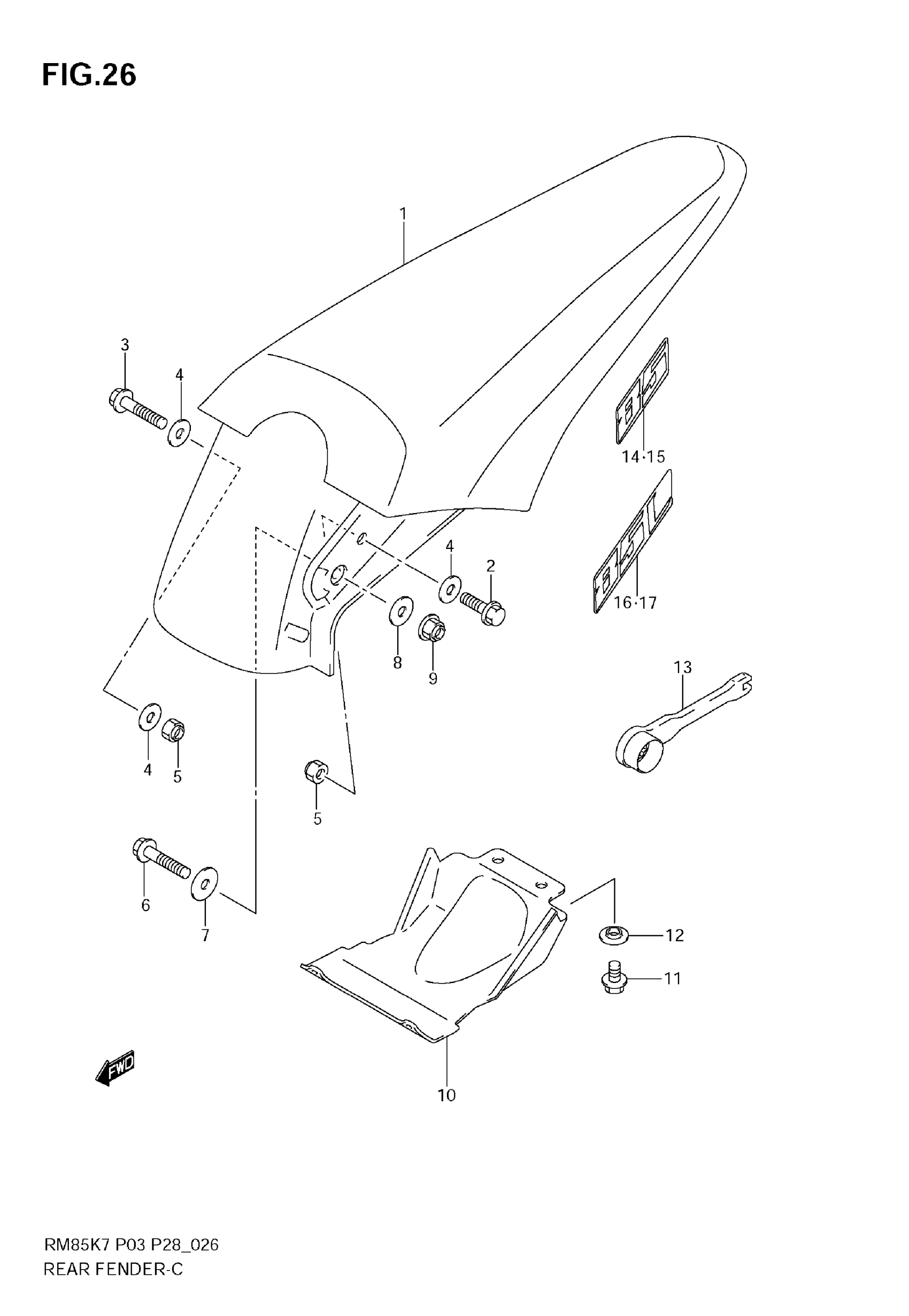

Find the part on the Rear Fender diagram for your 2009 Suzuki RM-85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki RM-85 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR (YELLOW)

63111-03B60-YU1

1
Out of stock

2

BOLT This part replaces 09103-06235.

01547-06207

1
Out of stock

3

BOLT, RH

09103-06251

1
Out of stock

4

WASHER

09160-06077

4
Out of stock

5

NUT

08319-2106A

2
Out of stock

6

BOLT, FRONT SIDE

09103-06251

2
Out of stock

7

WASHER, INNER

09160-06135

2
Out of stock

8

WASHER, OUTER

09160-06084

2
Out of stock

9

NUT

08319-3106B

2
Out of stock

10

MUD GUARD, REAR FENDER FRONT

63351-03B00

1
Out of stock

11

BOLT

01547-0610B

2
Out of stock

12

WASHER

09169-06010

2
Out of stock

13

BOX SPANNER, 21

09816-00182

1
Out of stock

14

EMBLEM, RH | RM85

68175-03B50-GY8

1
Out of stock

15

EMBLEM, LH | RM85

68176-03B50-GY8

1
Out of stock

16

EMBLEM, RH | RM85L

68175-03B60-GY8

1
Out of stock

17

EMBLEM, LH | RM85L

68176-03B60-GY8

1
Out of stock
