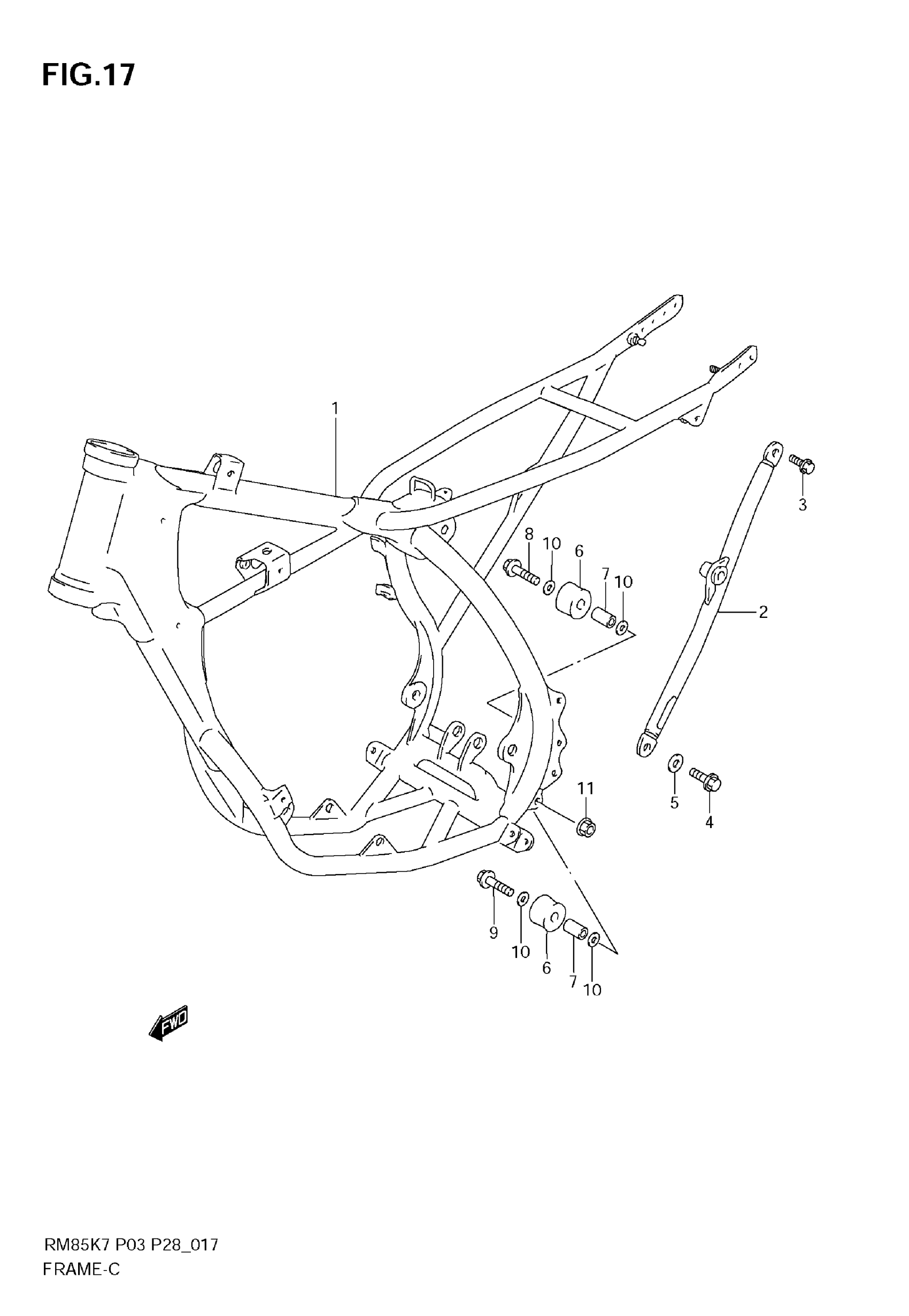

Suzuki RM-85 (2009) FRAME Diagram

#

Description
Price

1

FRAME (GRAY) This part replaces 41100-03BB0-YU8.

41100-03BB1-YU8

Unavailable

2

TUBE, FRAME SIDE LH (GRAY)

41670-02B30-YU8

Unavailable

3

BOLT, UPPER

09100-08274

$4.12

4

BOLT, LOWER

09100-08284

$4.20

5

WASHER, LOWER

09160-08120

$2.21

6

ROLLER, CHAIN CONTROL

43911-35B00

$18.81

7

SPACER

09180-08214

$5.63

8

BOLT, UPPER

09103-08178

$4.29

9

.BOLT (8X55)

09103-08339

$3.19

10

WASHER

09181-08167

$1.98

11

NUT

08319-3108A

$2.31
