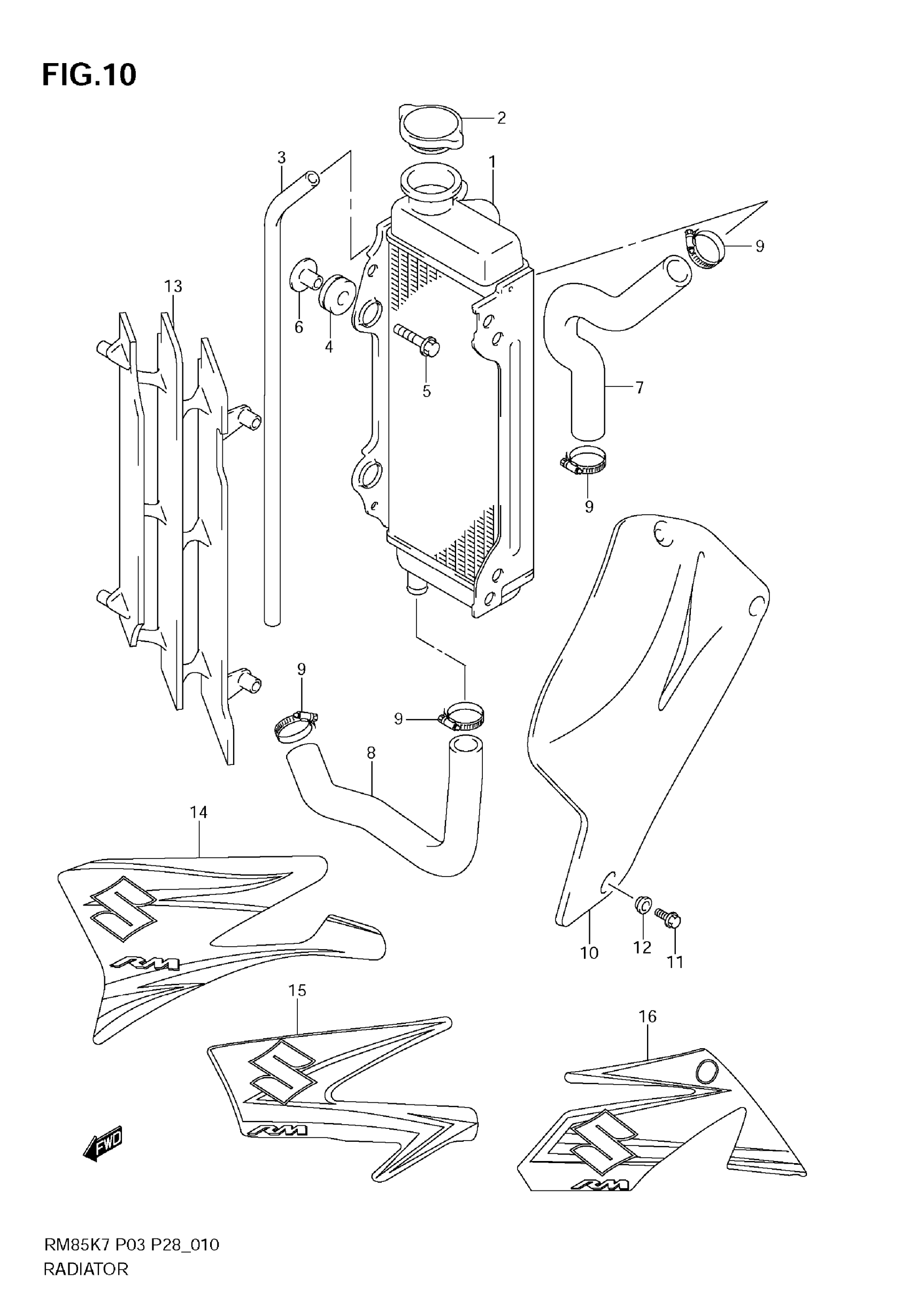

Suzuki RM-85 (2009) RADIATOR Diagram

#

Description
Price

1

RADIATOR, WATER

17710-03B00

$632.40

2

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$42.50

3

HOSE (5X8X2000) | L:1000!480 This part replaces 09351-50803-00A.

09351-50803-00B

$9.10

4

CUSHION, RADIATOR SPRT

17787-19A00

$3.56

5

BOLT, RADIATOR SPRT

09116-06186

$2.61

6

SPACER, RADIATOR SPRT

09180-06243

$5.46

7

HOSE, INLET

17851-03B00

$23.07

8

HOSE, OUTLET

17852-03B00

$27.33

9

CLAMP

09402-28513

$6.88

10

COVER, RADIATOR (YELLOW)

17762-37F10-YU1

$51.57

11

BOLT

09103-06233

$2.11

12

WASHER (6.3X16X1)

09169-06053

$1.49

13

LOUVER, RADIATOR

17831-36E00

$19.07

14

TAPE, RADIATOR COVER LH | MODEL K7

68670-03BG0-DRA

Unavailable

15

TAPE, RADIATOR COVER LH | MODEL K8

68670-03BH0-EMA

Unavailable

16

TAPE, RADIATOR COVER LH | MODEL K9

68670-03BJ0-FYF

Unavailable
