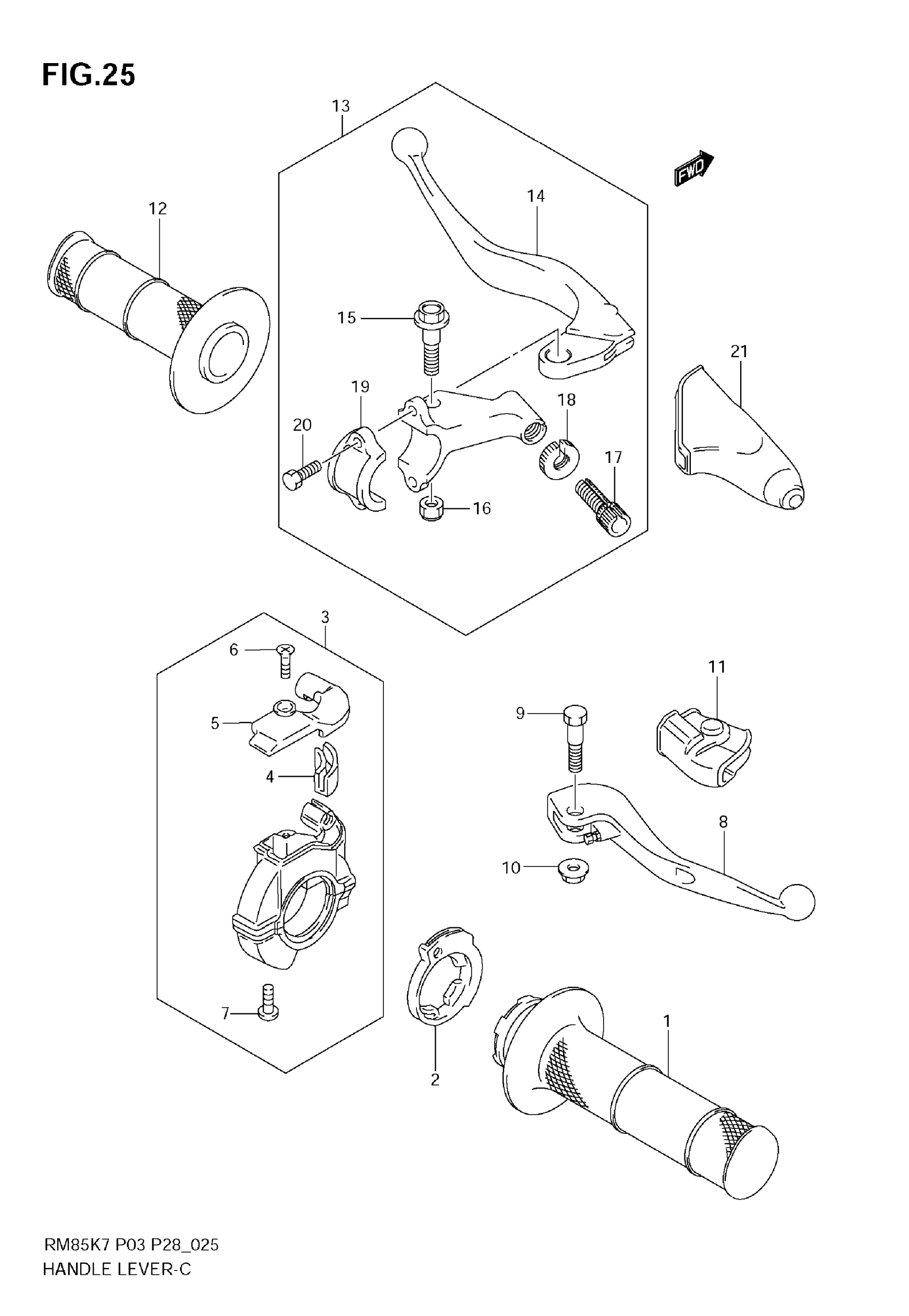

Suzuki RM-85 (2009) HANDLE LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-27C00

$26.37

2

ROTOR, THROTTLE

57114-20410

$7.22

3

CASE ASSY, THROTTLE | Includes Item(s) 4 - 7

57100-20411

Unavailable

4

GUIDE, PIECE

57122-20410

$6.38

5

COVER

57129-20411

$11.95

6

SCREW

02122-0410A

$1.49

7

SCREW

02112-05167

$1.97

8

LEVER, BRAKE

57310-37F00

$36.54

9

BOLT, BRAKE LEVER

57431-14500

$6.28

10

NUT This part replaces 08316-10063.

08316-1006B

$2.50

11

COVER, BRAKE LEVER

57343-35G00

$19.03

12

GRIP LH

57211-27C00

$12.28

13

LEVER ASSY,CLUTCH | Includes Item(s) 14 - 20 This part replaces 57500-28C12.

57500-28C13

$82.52

14

LEVER, CLUTCH

57621-28C00

$16.33

15

BOLT

57431-28C01

$8.47

16

NUT

08319-2106A

$1.91

17

ADJUSTER, CABLE

57441-28C10

$13.73

18

NUT

57442-28C00

$12.97

19

.BRACKET, CLUTCH LEVER HOLDER

57512-28C00

$25.63

20

BOLT

01500-0516B

$2.15

21

COVER, CLUTCH LEVER This part replaces 57341-40002.

57341-40003

$5.56
