2009 Suzuki RM-85 Fuel Tank Diagram

← All diagrams

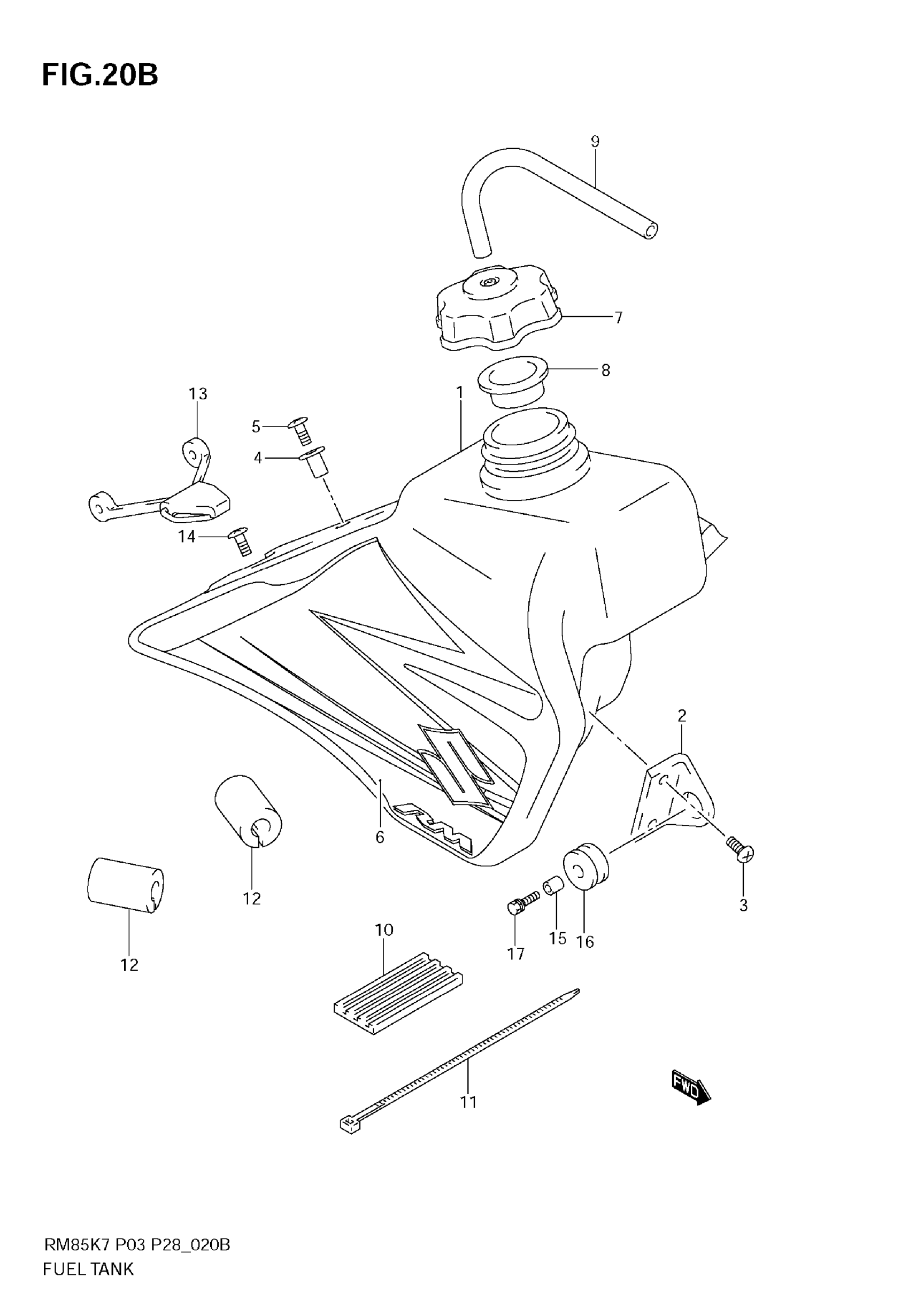

Find the part on the Fuel Tank diagram for your 2009 Suzuki RM-85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki RM-85 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL (YELLOW) | Includes Item(s) 2 - 5

44110-03B10-YU1

1
Out of stock

2

BRACKET, FRONT

44131-27C01

2
Out of stock

3

SCREW

02142-0612B

4
Out of stock

4

HOOK, SEAT FR

44132-27C01

1
Out of stock

5

SCREW

02142-0620B

1
Out of stock

6

TAPE SET, FUEL TANK

68110-03BJ0-FYF

1
Out of stock

7

CAP, FUEL

44210-37F00

1
Out of stock

8

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

1
Out of stock

9

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

10

CUSHION, UPPER FRONT

44541-14300

2
Out of stock

11

CLAMP

09407-25402

2
Out of stock

12

CUSHION, UPPER REAR

44542-17300

2
Out of stock

13

BAND, REAR

44560-26C00

1
Out of stock

14

SCREW

09139-06134

1
Out of stock

15

SPACER

09180-06268

2
Out of stock

16

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

2
Out of stock

17

BOLT

09116-06195

2
Out of stock
