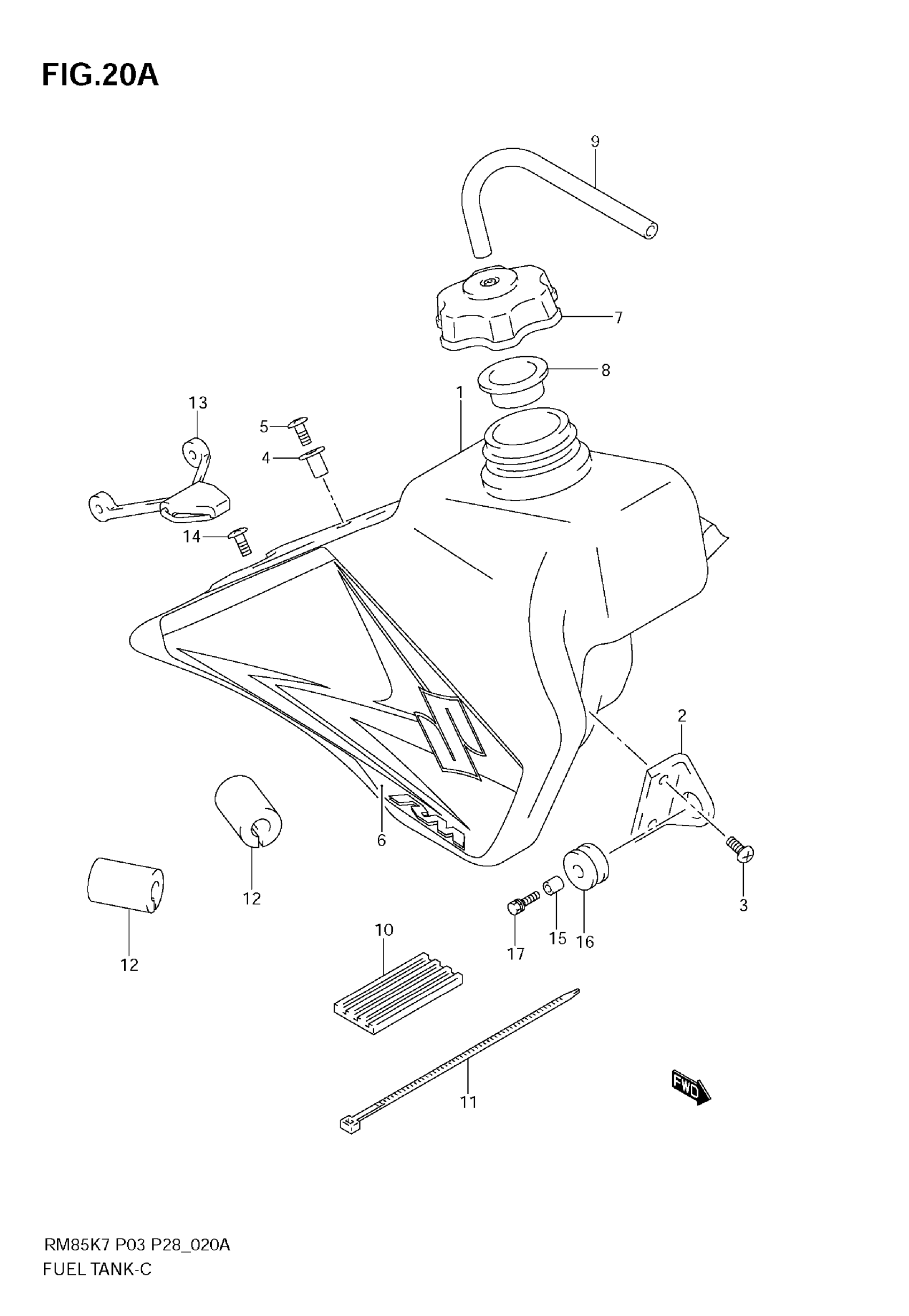

Suzuki RM-85 (2009) FUEL TANK (MODEL K8) Diagram

TANK, FUEL (YELLOW) | Includes Item(s) 2 - 5

44110-03B10-YU1

$541.82

BRACKET, FRONT

44131-27C01

$16.77

SCREW

02142-0612B

$1.89

HOOK, SEAT FR

44132-27C01

$19.39

SCREW

02142-0620B

$2.27

TAPE SET, FUEL TANK

68110-03BH0-EMA

Unavailable

CAP, FUEL

44210-37F00

$39.00

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

$4.13

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$9.48

CUSHION, UPPER FRONT

44541-14300

$9.17

CLAMP

09407-25402

$4.32

CUSHION, UPPER REAR

44542-17300

$9.17

BAND, REAR

44560-26C00

$17.83

SCREW

09139-06134

$2.87

SPACER

09180-06268

$2.17

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.58

BOLT

09116-06195

$4.02
