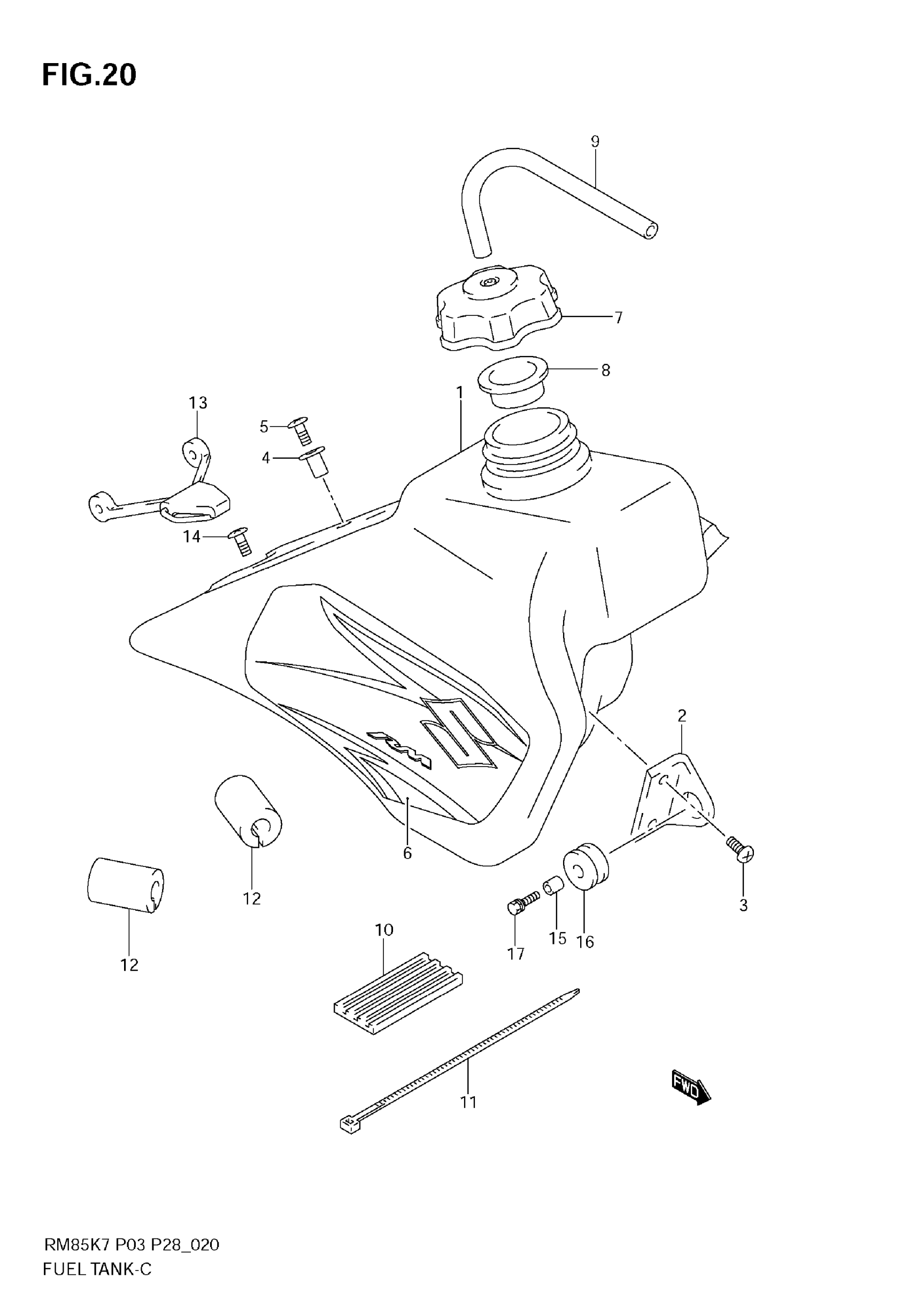

Suzuki RM-85 (2009) FUEL TANK (MODEL K7) Diagram

#

Description
Price

1

TANK, FUEL (YELLOW) | Includes Item(s) 2 - 5

44110-03B10-YU1

Unavailable

2

BRACKET, FRONT

44131-27C01

$12.63

3

SCREW

02142-0612B

$2.05

4

HOOK, SEAT FR

44132-27C01

$17.17

5

SCREW

02142-0620B

$1.80

6

TAPE SET, FUEL TANK

68110-03BG0-DRA

Unavailable

7

CAP, FUEL

44210-37F00

$34.55

8

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

$4.21

9

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

10

CUSHION, UPPER FRONT

44541-14300

$8.12

11

CLAMP

09407-25402

$4.64

12

CUSHION, UPPER REAR

44542-17300

$8.12

13

BAND, REAR

44560-26C00

$16.25

14

SCREW

09139-06134

$2.63

15

SPACER

09180-06268

$2.19

16

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.74

17

BOLT

09116-06195

$3.70
