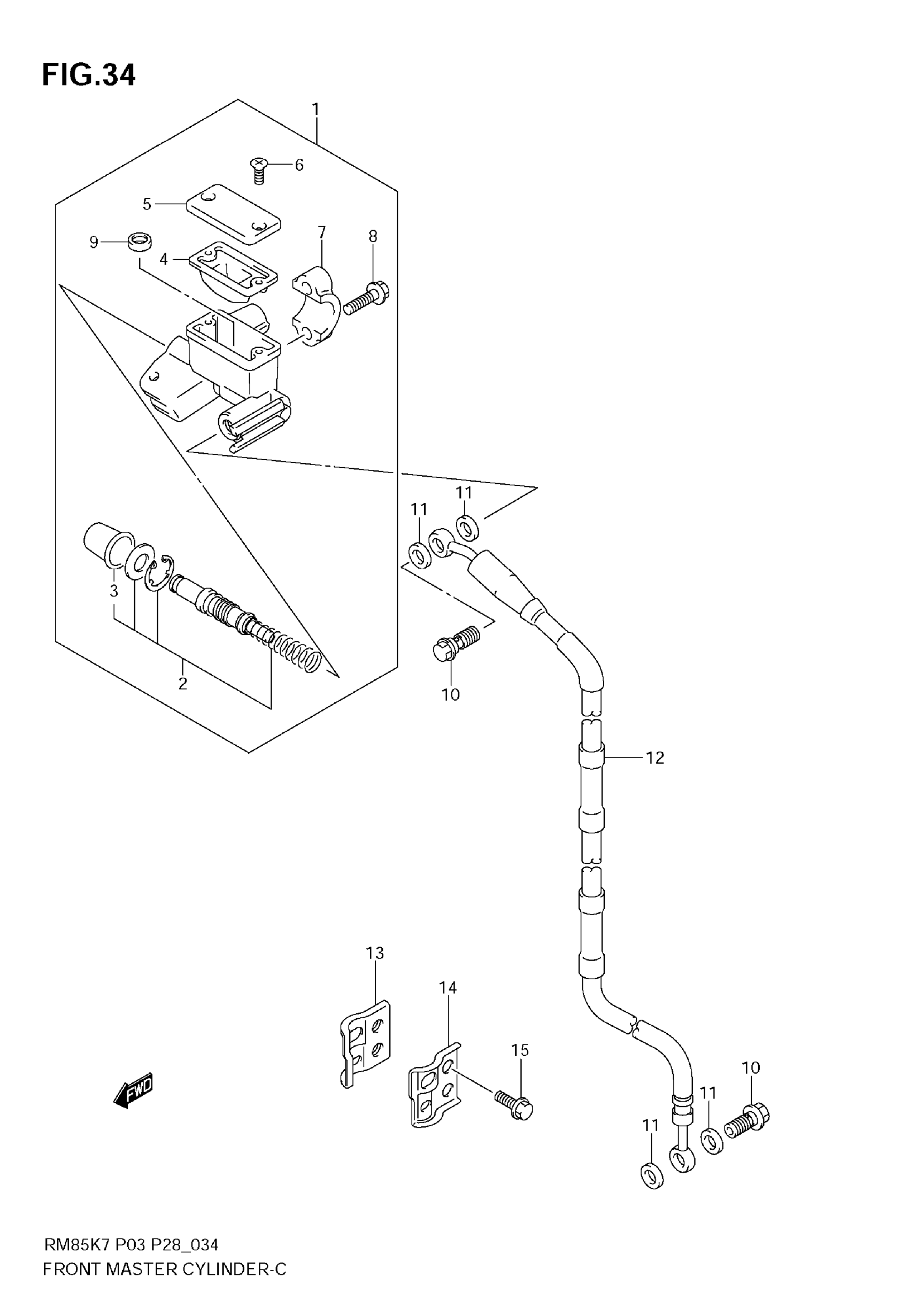

Suzuki RM-85 (2009) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9 This part replaces 59600-37F00.

59600-37F10

$226.62

2

PISTON/CUP SET

59600-37810

$58.68

3

BOOT

59666-44300

$5.80

4

DIAPHRAGM

59667-14500

$10.12

5

CAP

59669-27C01

$23.32

6

SCREW

69689-49300

$1.91

7

HOLDER

59671-27C00

$17.02

8

BOLT

59675-06F00

$4.73

9

SEPARATOR

59748-36E00

$9.37

10

UNION BOLT (10X1.25X22)

09360-10062

$6.43

11

WASHER (10X15X1.5)

09161-10009

$1.84

12

HOSE,FRONT BRAKE | RM85K7/K8/K9 This part replaces 59480-03B81.

59480-03B82

$251.58

12

HOSE COMP,FRONT | RM85LK7/LK8/LK9 This part replaces 59480-03B91.

59480-03B92

$125.57

13

CLAMP, FRONT BRAKE HOSE | INNER

59260-03B00

$12.80

14

CLAMP, FRONT BRAKE HOSE | OUTER

59271-03B00

$10.95

15

BOLT

09103-06234

$2.35
