Partiron

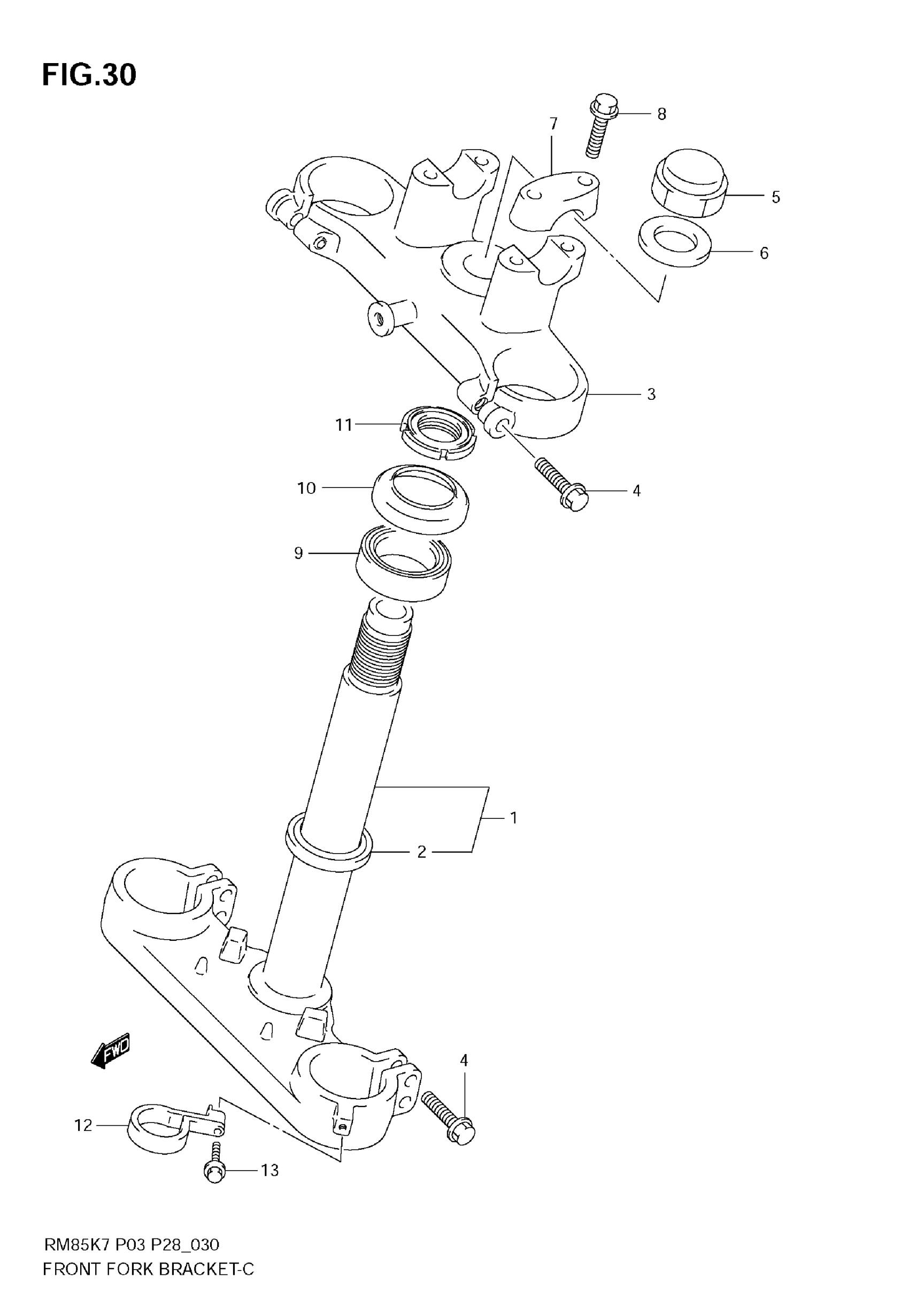

Suzuki RM-85 (2009) FRONT FORK BRACKET Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2

51410-03B30

Unavailable

2

.BEARING (26X47X15) This part replaces 09265-26001.

09265-26002

$47.18

3

STEM HEAD, STEERING

51310-03B30

$309.93

4

BOLT

51328-37F80

$7.25

5

NUT

51353-11D50

$26.87

6

WASHER

51356-02B60

$13.83

7

HOLDER, HANDLE

56211-36F00

$34.15

8

BOLT

51321-37F90

$6.19

9

BEARING (25X47X15)

09265-25038

$45.57

10

SEAL, STEERING UPR DUST

51643-03B00

$13.05

11

NUT, STEERING

51631-03B00

$23.32

12

GUIDE, FRONT BRAKE HOSE

58621-03B00

$12.35

13

BOLT

01547-06207

$2.01
