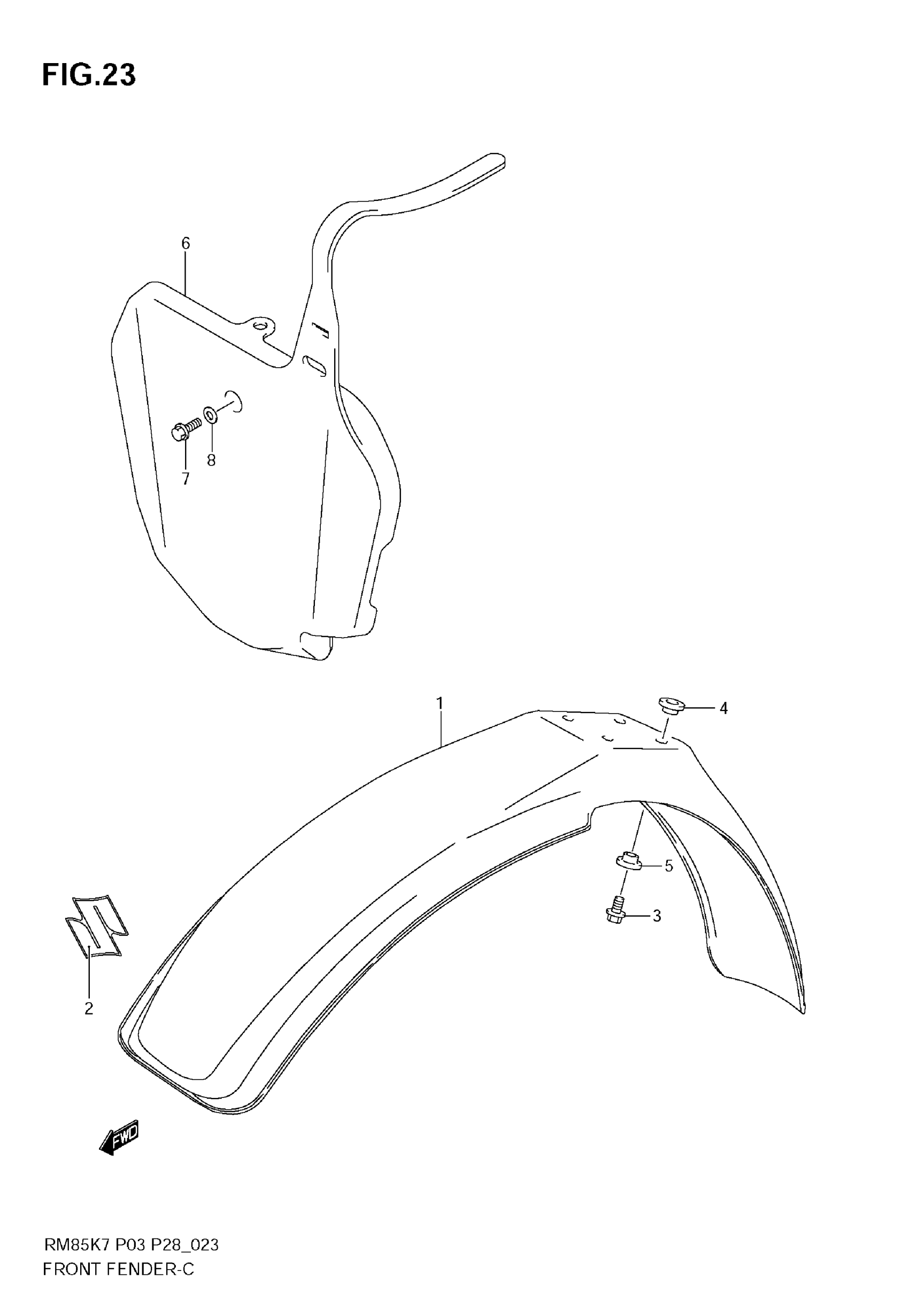

Suzuki RM-85 (2009) FRONT FENDER Diagram

#

Description

Price

1

FENDER, FRONT (YELLOW)

53111-03B01-YU1

$48.30

2

EMBLEM, "S"

68151-03B10-CFM

$23.07

3

BOLT This part replaces 09103-06235.

01547-06207

$2.01

4

WASHER, UPPER

09169-06080

$4.17

5

WASHER (6.3X16X1)

09169-06053

$1.49

6

PLATE, NUMBER FRONT (WHITE)

94911-03B00-30H

$66.43

7

BOLT This part replaces 09103-06235.

01547-06207

$2.01

8

WASHER

09160-06125

$1.91
