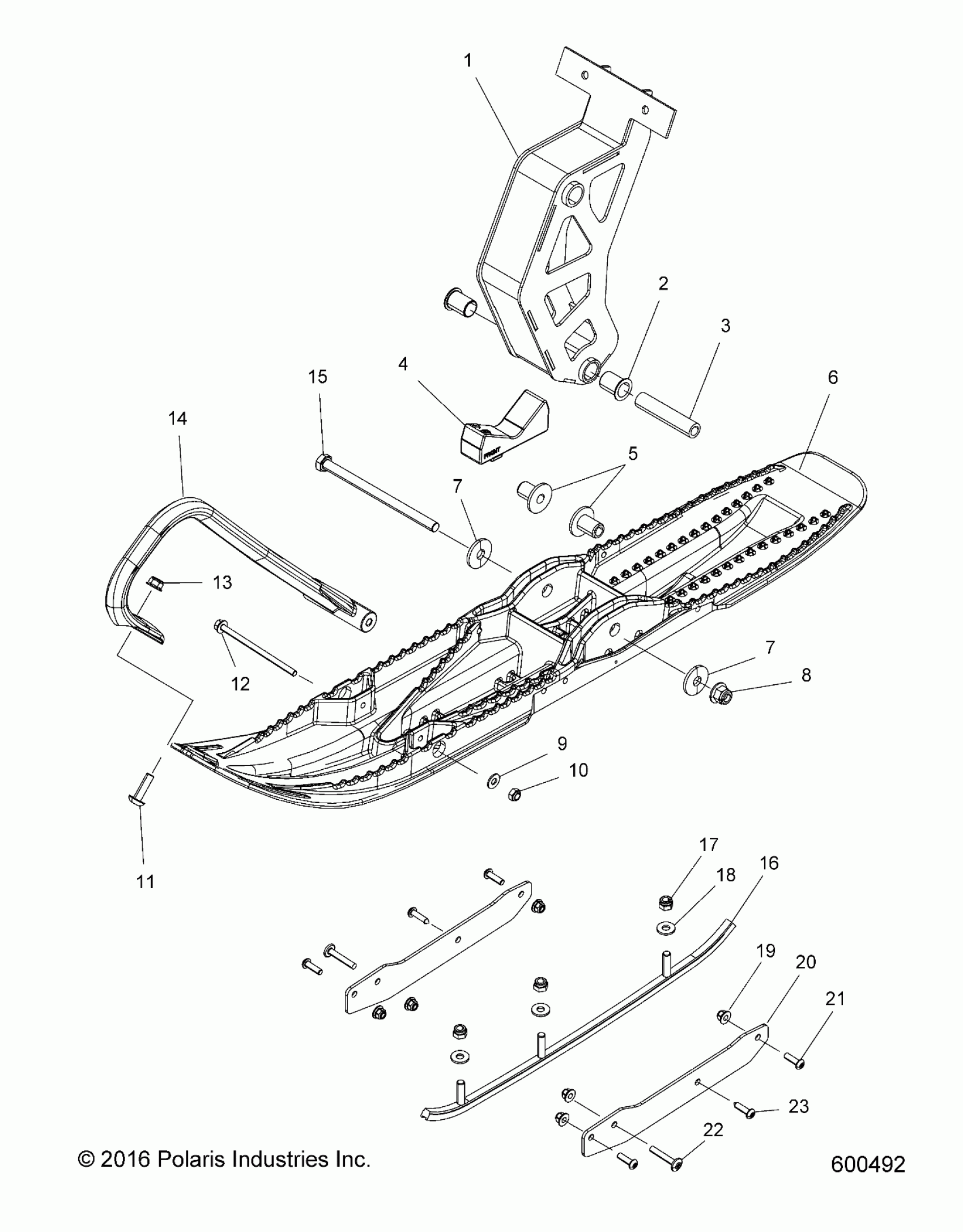

Polaris RIPPER 93 BASE (R01) - J20RTAXXXA STEERING, SKI ASM. - J20RTAXXXA (600492) Diagram

#

Description

Price

1

SPINDLE-RIPPER

1824646-458

Unavailable

2

BUSHING-SKI PIVOT

5438460

$15.99

3

BUSHING

5136910

$7.99

4

STOP-SKI

5415230

$12.94

5

BUSHING-PLASTIC SKI METRIC

5136908

$15.99

6

ASM-SKI, RIPPER SVC [INCL. 5]

1824689-070

Unavailable

7

WASHER

7556130

$6.39

8

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

9

WASHER-1/4 FLAT

7558301

$1.49

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

11

SCREW-M8x25 TXTR

7518906

$3.19

12

SCREW-HXFL, M6x105

7520233

$6.39

12

SCREW-HXFL, M6x105

7520233

$6.39

13

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

14

LOOP-SKI, BLACK

5435681-070

$40.46

15

BOLT-M10x155

7519098

$12.79

16

KIT-SKAG,CARBIDE,3",60�,'07RMK [INCL. 2 SKAGS]

2875723

$79.99

17

NUT-5/16-18 NYLOK-Y

7542324

$1.49

18

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

20

SKAG-SIDE RIPPER, BLACK

5264055-329

Unavailable

21

SCREW-SH M6x16

7518616

$1.49

22

SCREW-TXPH M6x35

7519002

$3.99

23

SCREW-TW TRUSS #14x3/4

7519045

$3.19
