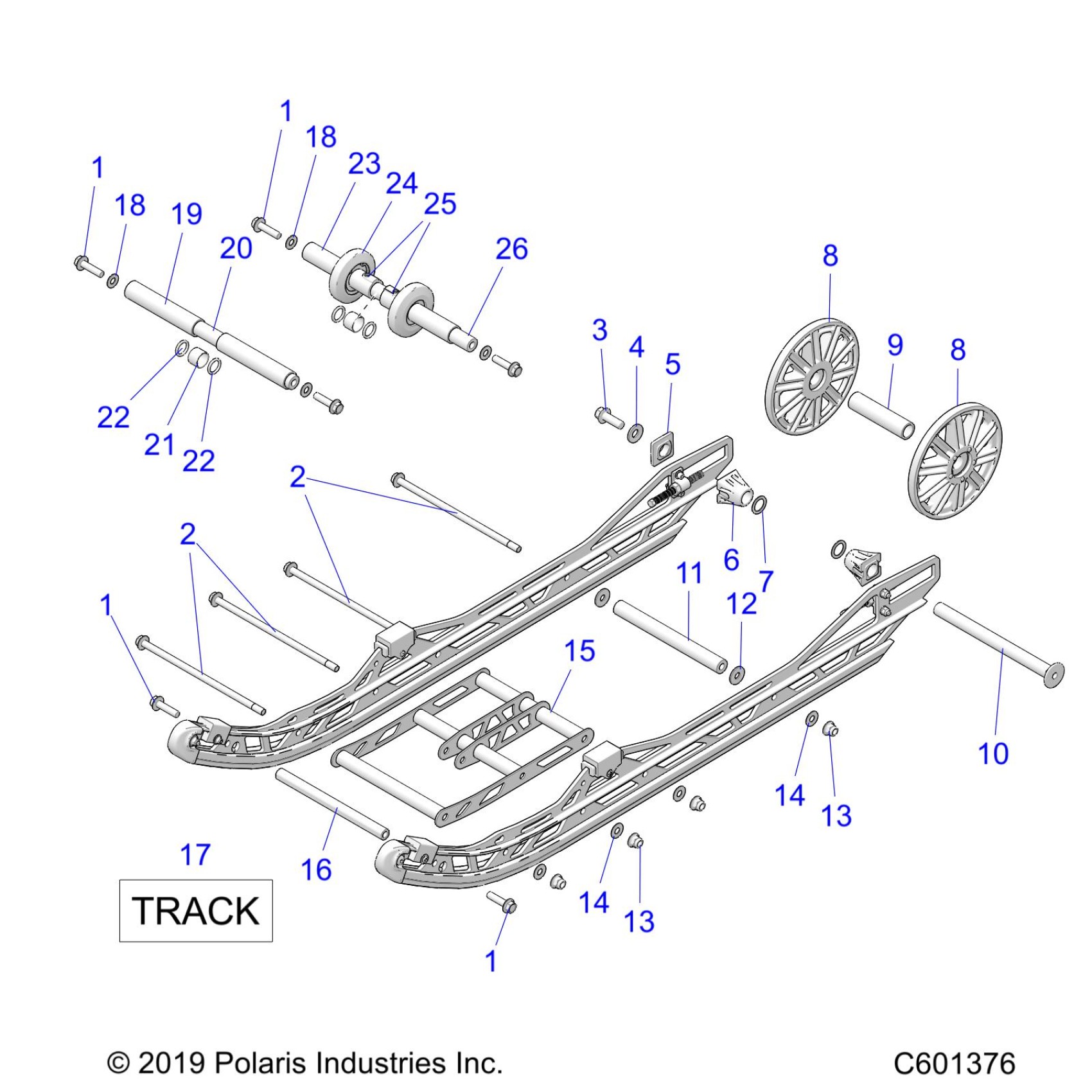

Polaris RIOT120/120 LE ALL OPTIONS (R01) - J20DRBXXX/DRCXXX SUSPENSION, REAR ASM. - J20DRBXXX/DRCXXX ALL OPTIONS (C601376) Diagram

#

Description

Price

1

SCR-HXFL M10X1.5X40 10.9 ZB P8

7521118

$3.19

1

SCR-HXFL M10X1.5X40 10.9 ZB P8

7521118

$3.19

1

SCR-HXFL M10X1.5X40 10.9 ZB P8

7521118

$3.19

1

SCR-HXFL M10X1.5X40 10.9 ZB P8

7521118

$3.19

2

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

2

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

3

SCR-M12X1.75X35 HXFL ZOD P30

7520123

$8.79

4

WSHR-DOMED 29X13X3 ZC DIN6796

7556929

$3.99

5

SPACER-IDLER

5436496

$6.39

6

SPACER-IDLER

5432535

$11.99

7

BUSHING

7555918

$1.59

8

BEARING [1 PER WHEEL]

3514384

$19.84

8

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

8

ASM., WHEEL, 7.25" [INCL. BEARING AND RETAINING RING]

1590431-070

$67.76

8

BEARING [1 PER WHEEL]

3514384

$19.84

8

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

8

ASM., WHEEL, 7.25" [INCL. BEARING AND RETAINING RING]

1590431-070

$67.76

9

SHAFT, IDLER, CENTER

5338618

$9.99

10

SHAFT, IDLER, REAR

5139411

$129.99

11

SHAFT-LOWER TA

5142746

Unavailable

12

WSHR-10.4X28.58X2.4 ZOD

7556563

$3.19

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

14

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

15

BRACE SUPPORT SA MBLK [COLOR OPTION]

1544332-458

Unavailable

16

SHAFT-CROSS [SEE SUSPENSION, FRONT TORQUE ARM REF. 17]

5139172

$29.03

17

TRACK-120X2.5X11.5 CONVEX LWT

5417083

Unavailable

18

WSHR-10.5X22.0X1.6 SPC

7556155

$5.22

18

WSHR-10.5X22.0X1.6 SPC

7556155

$5.22

19

SPACER-SHOCK CENTERING UPPER

5522313

Unavailable

20

SHAFT-SHOCK UPPER STEEL

5143121

Unavailable

21

BUSHING-SHOCK

5453940

Unavailable

22

O-RING-3*4"X1"X0.139",NITRILE

5416266

Unavailable

22

O-RING-3*4"X1"X0.139",NITRILE

5416266

Unavailable

23

SPACER-WHEEL CENTERING

5522314

Unavailable

24

WHEEL-IDLER

1590579

Unavailable

25

BUSHING-CARRIER WHEEL SPACER

5454341

Unavailable

26

SHAFT-SHOCK UPPER

5142747

Unavailable
