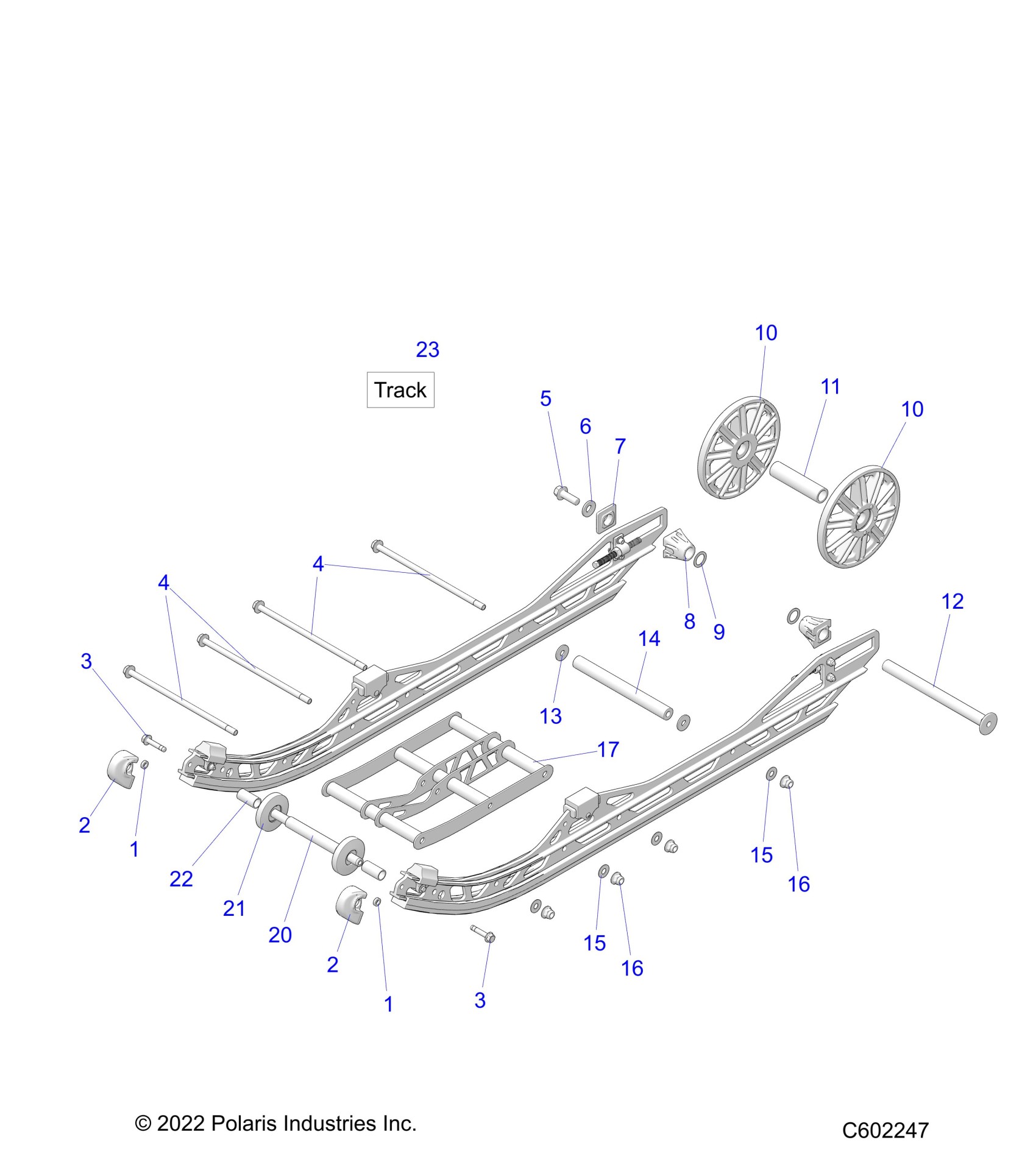

Polaris RIOT 120/RIOT 3 ALL OPTIONS (R01) - J23DRBX/DREX/DRGX/DRHX/DMCX/DMFX/DMGX/DMHX SUSPENSION, REAR ASM. - J23DRBXXXA/DREXXXA/DRGXXXA/DRHXXXA/DMCXXX/DMFXXX/DMGXXX/DMXXXH (C602247) Diagram

#

Description

Price

1

SPACER-RAIL TIP COMP LIMIT

5143891

Unavailable

1

SPACER-RAIL TIP COMP LIMIT

5143891

Unavailable

2

CAP-RAIL TIP RIOT

5457933

Unavailable

2

CAP-RAIL TIP RIOT

5457933

Unavailable

3

SCR-HXFL-M8X1.25X40 8.8 ZODP30

7519267

$3.99

3

SCR-HXFL-M8X1.25X40 8.8 ZODP30

7519267

$3.99

4

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

4

SCR-HXFL-M10X1.25X250 10.9 ZOD

7519327

$19.99

5

SCR-M12X1.75X35 HXFL ZOD P30

7520123

$8.79

6

WSHR-DOMED 29X13X3 ZC DIN6796

7556929

$3.99

7

SPACER, IDLER

5436496

$6.39

8

SPACER-IDLER

5432535

$11.99

9

BUSHING

7555918

$1.59

10

ASM., WHEEL, 7.25" [INCL. BEARING AND RETAINING RING]

1590431-070

$67.76

10

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

10

BEARING [1 PER WHEEL]

3514384

$19.84

10

ASM., WHEEL, 7.25" [INCL. BEARING AND RETAINING RING]

1590431-070

$67.76

10

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

10

BEARING [1 PER WHEEL]

3514384

$19.84

11

SHAFT, IDLER, CENTER

5338618

$9.99

12

SHAFT, IDLER, REAR

5139411

$129.99

13

WSHR-10.4X28.58X2.4 ZOD

7556563

$3.19

14

SHAFT-LOWER TA

5142746

Unavailable

15

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

15

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

16

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

16

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

17

WELD-H BRACE HD MBLK

1544565-458

Unavailable

20

SHAFT-RAIL TIP CROSS

5143883

Unavailable

21

ASM-WHEEL CARRIER 66.68

1590675

Unavailable

22

SPACER-WHEEL RAIL TIP

5143884

Unavailable

23

TRACK-129 X 3.0 X 11.5 TSLD [DMC/DMF/DMG/DMH]

5417137

Unavailable

23

TRACK-120X2.5X11.5 CONVEX LWT [DRB/DRE/DRG/DRH]

5417083

Unavailable
