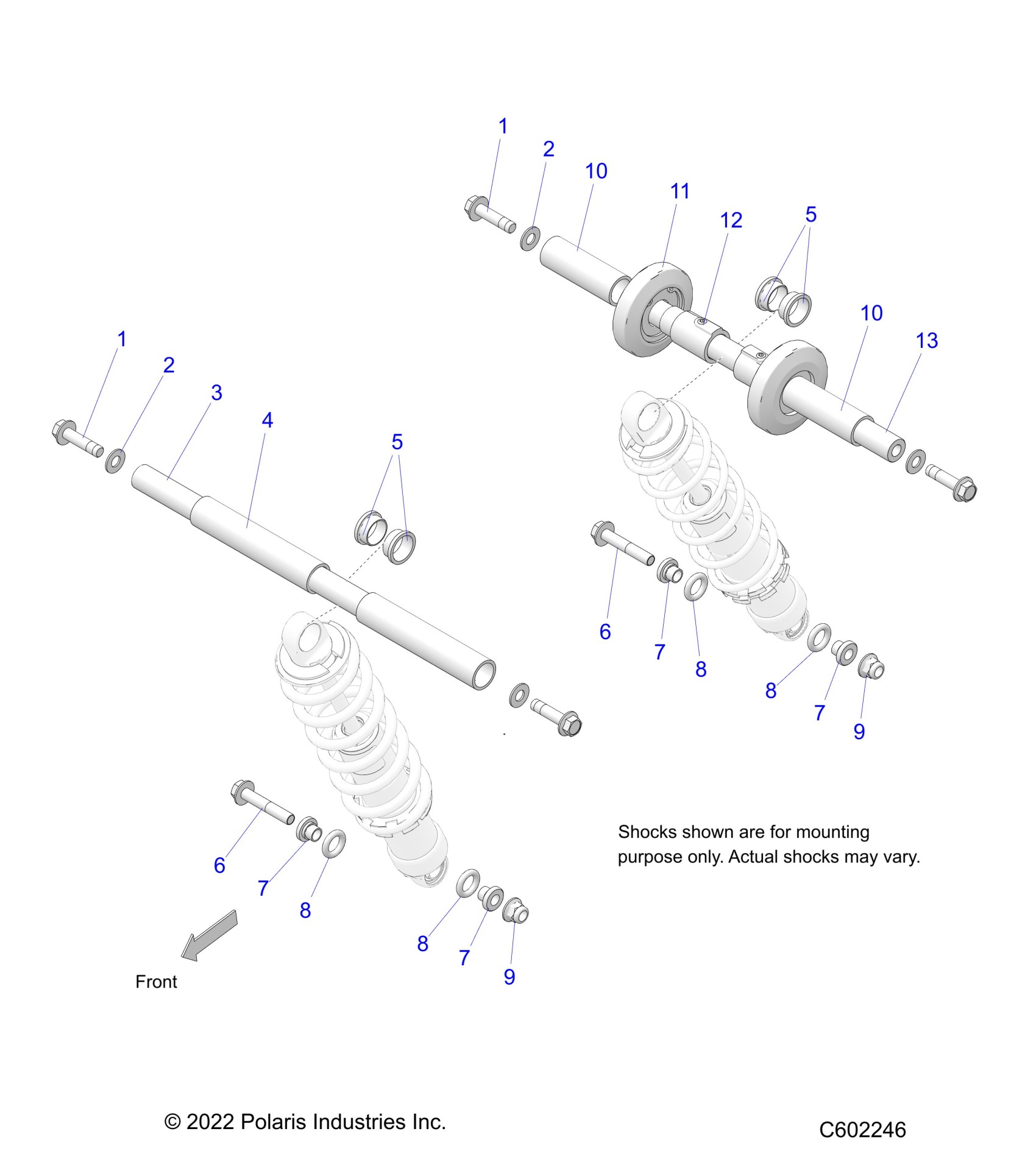

Polaris RIOT 120/RIOT 3 ALL OPTIONS (R01) - J23DRBX/DREX/DRGX/DRHX/DMCX/DMFX/DMGX/DMHX SUSPENSION, ASM-SHOCK MOUNTING - J23DRBXXXA/DREXXXA/DRGXXXA/DRHXXXA/DMCXXX/DMFXXX/DMGXXX/DMXXXH (C602246) Diagram

#

Description

Price

1

SCR-HXFL M10X1.5X40 10.9 ZB P8

7521118

$3.19

1

SCR-HXFL M10X1.5X40 10.9 ZB P8

7521118

$3.19

2

WASHER-10.5X22.0X1.6 SPC

7556155

$5.22

2

WASHER-10.5X22.0X1.6 SPC

7556155

$5.22

3

SHAFT-SHOCK UPPER STEEL

5143121

Unavailable

4

SPACER-SHOCK CENTERING UPPER

5522313

Unavailable

5

BUSHING-SHOCK FLANGE CHAMFER

5459489

Unavailable

5

BUSHING-SHOCK FLANGE CHAMFER

5459489

Unavailable

6

SCR-HXFL-M10X1.25X55 10.9 RIE

7519956

$2.39

6

SCR-HXFL-M10X1.25X55 10.9 RIE

7519956

$2.39

7

SPACER-10.2IDX12.62OD

5136530

$4.79

7

SPACER-10.2IDX12.62OD

5136530

$4.79

7

SPACER-10.2IDX12.62OD

5136530

$4.79

7

SPACER-10.2IDX12.62OD

5136530

$4.79

8

O-RING,0.600IDX.210

5412290

$2.02

8

O-RING,0.600IDX.210

5412290

$2.02

8

O-RING,0.600IDX.210

5412290

$2.02

8

O-RING,0.600IDX.210

5412290

$2.02

9

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

9

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

SPACER-WHEEL CENTERING

5522314

Unavailable

10

SPACER-WHEEL CENTERING

5522314

Unavailable

11

WHEEL- 3.25"

1590579

Unavailable

12

BUSHING-CARRIER WHEEL SPACER

5454341

Unavailable

12

SCR-S 5/16 18X0.25" SS

7520679

Unavailable

13

SHAFT-SHOCK UPPER

5142747

Unavailable
