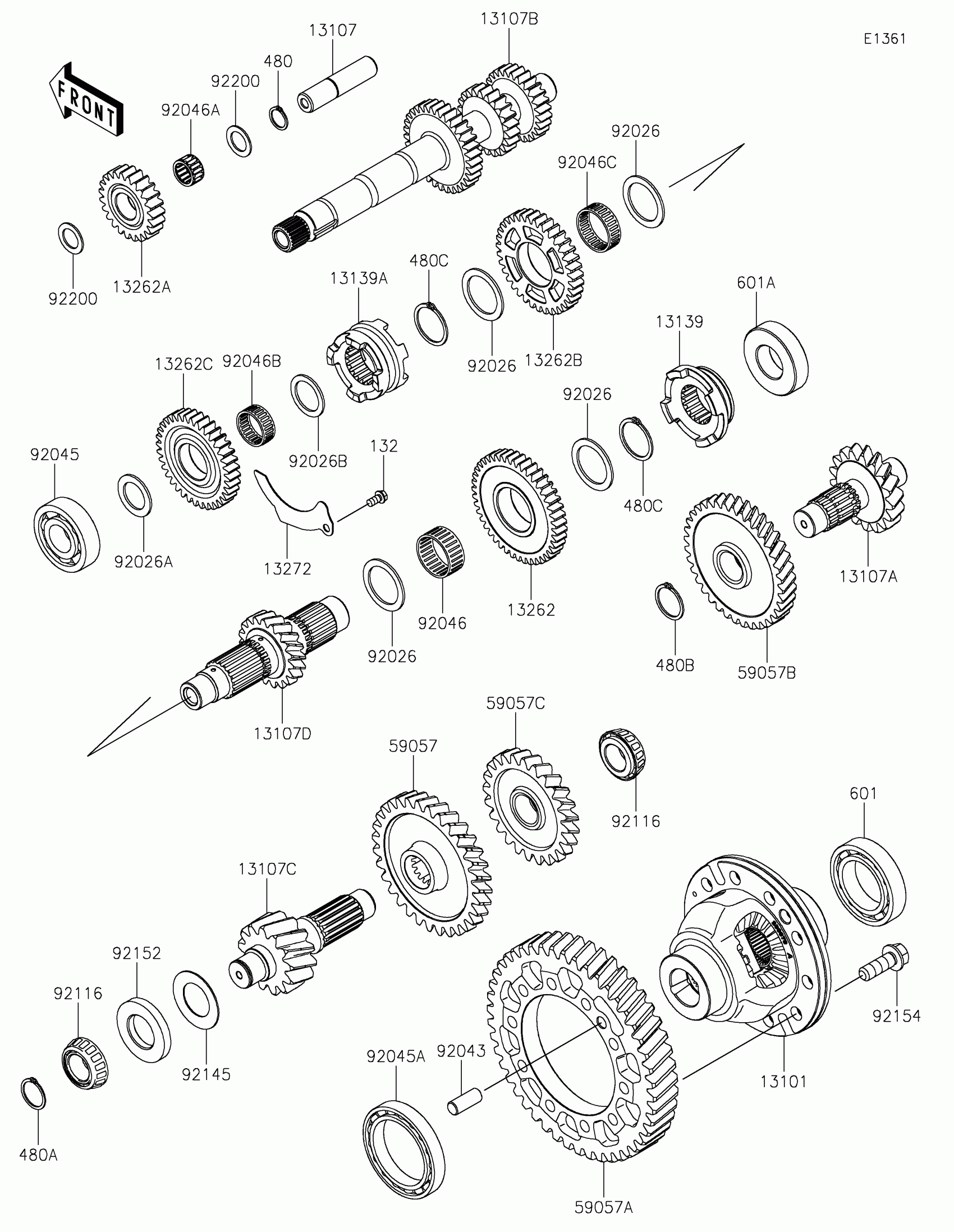

Kawasaki RIDGE® XR HVAC Transmission Diagram

#

Description
Price

13101

GEAR-ASSY,DIFFERENTIAL

13101-0735

$473.42

13107

SHAFT,REVERSE IDLER

13107-0879

$40.82

13107A

SHAFT,3RD,17T

13107-0965

$260.81

13107B

SHAFT,INPUT

13107-0966

$595.77

13107C

SHAFT,4TH,13T

13107-0967

$326.57

13107D

SHAFT,2ND,19T

13107-0974

$365.00

13139

SHIFTER,LOW,19T

13139-0030

$126.39

13139A

SHIFTER,HIGH&REV,19T

13139-0037

$118.64

13262

GEAR,LOW,43T

13262-1649

$159.03

13262A

GEAR,REVERSE IDLER,23T

13262-1650

$92.28

13262B

GEAR,REV,35T

13262-1651

$153.66

13262C

GEAR,HIGH,36T

13262-1655

$145.09

13272

PLATE,OIL

13272-2570

$1.45

59057

GEAR-HELICAL,31T

59057-0039

$177.85

59057A

GEAR-HELICAL,46T

59057-0040

$230.71

59057B

GEAR-HELICAL,36T

59057-0042

$173.44

59057C

GEAR-HELICAL,24T

59057-0046

$173.65

92026

SPACER,35.2X47X2

92026-0765

$11.23

92026A

SPACER,25.2X38X2

92026-0856

$8.52

92026B

SPACER,28X38X2

92026-1299

Unavailable

92043

PIN,DOWEL,12X30

92043-0789

$3.63

92045

BEARING-BALL,6305RSH2

92045-0899

$32.73

92045A

BEARING-BALL,6912

92045-0965

$36.52

92046

BEARING-NEEDLE,35X40X17

92046-0611

$17.11

92046A

BEARING-NEEDLE

92046-0634

$12.93

92046B

BEARING-NEEDLE

92046-0635

$12.14

92046C

BEARING-NEEDLE

92046-0636

$17.24

92116

BEARING-ROLLER

92116-1053

$25.12

92145

SPRING

92145-1837

$7.22

92152

COLLAR

92152-2526

$16.74

92154

BOLT,12X35

92154-4495

$8.54

92200

WASHER,18.2X28X1.5

92200-0716

$3.02

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

480

CIRCLIP-TYPE-C,18MM

480J1800

$1.28

480A

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

480B

CIRCLIP

480J2900

$6.22

480C

CIRCLIP

480J3500

$2.75

601

BEARING-BALL,6012

601A6012

$43.55

601A

BEARING-BALL

601A6206

$21.84
