Rear Suspension

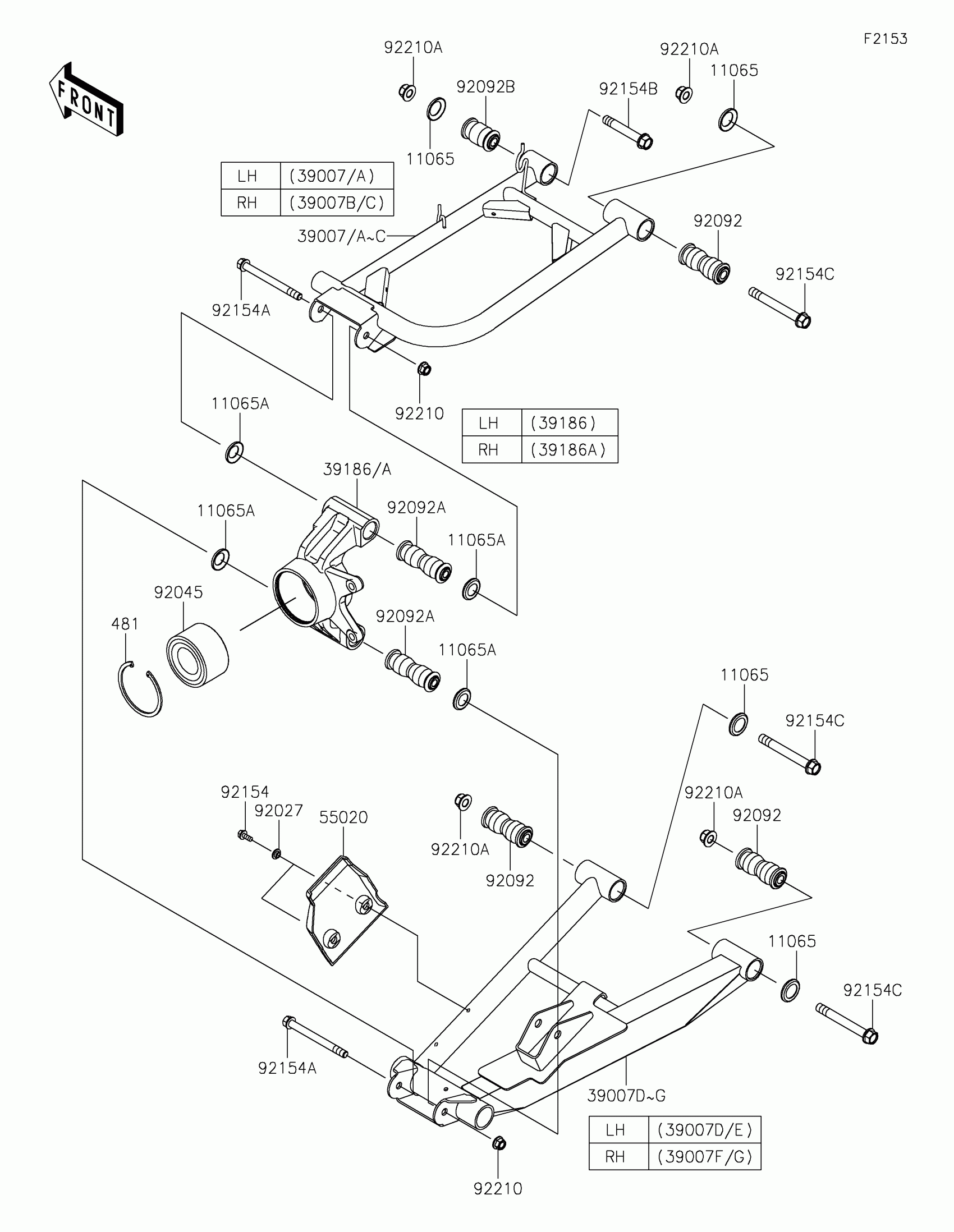

Kawasaki RIDGE® XR HVAC Rear Suspension Diagram
#
Description
Price
11065
CAP,ARM
11065-0838
$3.87
11065A
CAP
11065-0849
$3.87
39007
ARM-SUSP,RR,UPP,LH,P.C.P.RED
39007-0491-57C
$142.63
39007A
ARM-SUSP,RR,UPP,LH,P.L.GREEN
39007-0491-66C
$142.63
39007B
ARM-SUSP,RR,UPP,RH,P.C.P.RED
39007-0492-57C
$142.63
39007C
ARM-SUSP,RR,UPP,RH,P.L.GREEN
39007-0492-66C
$142.63
39007D
ARM-SUSP,RR,LWR,LH,P.C.P.RED
39007-0493-57C
$168.15
39007E
ARM-SUSP,RR,LWR,LH,P.L.GREEN
39007-0493-66C
$168.15
39007F
ARM-SUSP,RR,LWR,RH,P.C.P.RED
39007-0494-57C
$168.15
39007G
ARM-SUSP,RR,LWR,RH,P.L.GREEN
39007-0494-66C
$168.15
39186
KNUCKLE,RR,LH
39186-0337
$206.13
39186A
KNUCKLE,RR,RH
39186-0338
$206.13
55020
GUARD,RR CVJ
55020-0931
$13.79
92027
COLLAR,L=4.6
92027-1168
$5.00
92045
BEARING-BALL,42X80X45
92045-0960
$78.43
92092
BUSHING-RUBBER,12X20X78
92092-0028
$21.77
92092A
BUSHING-RUBBER,10.1X17X88
92092-0029
$20.99
92092B
BUSHING-RUBBER
92092-0555
$19.13
92154
BOLT,6X15.6
92154-1250
$0.82
92154A
BOLT,FLANGED,10X110
92154-1353
$4.92
92154B
BOLT,FLANGED,12X76.5
92154-7079
$9.99
92154C
BOLT,FLANGED,12X100
92154-7081
$12.54
92210
NUT,LOCK,FLANGED,10MM
92210-1081
$12.35
92210A
NUT,LOCK,FLANGED,12MM
92210-1931
$4.96
481
CIRCLIP 80MM
481J8000
$7.58
