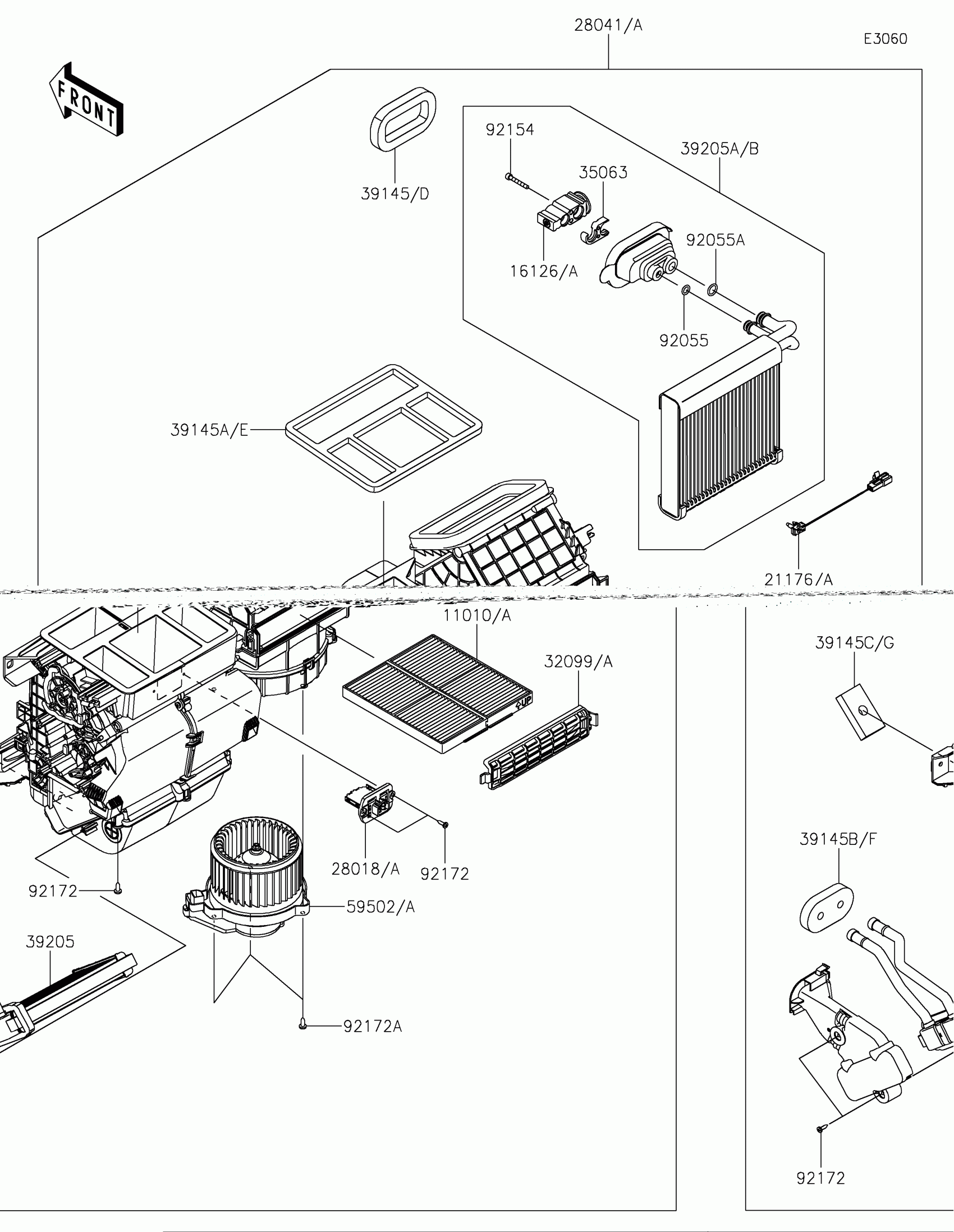

Find the part on the Hvac Unit diagram for your 2025 Kawasaki Ridge® XR Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ridge® XR Hvac Hvac Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-1854

1
Out of stock

11010A

FILTER-ASSY-AIR,HVAC

11010-1872

1
Out of stock

16126

VALVE

16126-0778

1

$341.94

In stock

16126A

VALVE

16126-0780

1

$341.94

In stock

21176

SENSOR

21176-1233

1

$112.23

In stock

21176A

SENSOR,THERMISTOR

21176-1284

1

$112.23

In stock

28018

RESISTOR

28018-0008

1

$86.41

In stock

28018A

RESISTOR

28018-0015

1

$86.41

In stock

28041

AC-UNIT-ASSY

28041-0001

1

$2,556.31

In stock

28041A

AC-UNIT-ASSY

28041-0004

1

$2,556.31

In stock

32099

CASE

32099-0840

1

$34.31

In stock

32099A

CASE,AIR FILTER

32099-0851

1

$34.31

In stock

35063

STAY

35063-1649

1

$21.12

In stock

39145

TRIM-SEAL

39145-0792

1

$78.19

In stock

39145A

TRIM-SEAL

39145-0793

1

$48.76

In stock

39145B

TRIM-SEAL

39145-0794

1

$9.49

In stock

39145C

TRIM-SEAL

39145-0795

1

$38.14

In stock

39145D

TRIM-SEAL

39145-0814

1

$9.42

In stock

39145E

TRIM-SEAL

39145-0815

1

$48.76

In stock

39145F

TRIM-SEAL

39145-0816

1

$9.49

In stock

39145G

TRIM-SEAL

39145-0817

1

$4.53

In stock

39205

HEAT EXCHANGER

39205-0004

1

$402.01

In stock

39205A

HEAT EXCHANGER

39205-0005

1

$821.51

In stock

39205B

HEAT EXCHANGER

39205-0006

1

$821.51

In stock

59502

FAN-ASSY

59502-0653

1

$1,236.41

In stock

59502A

FAN-ASSY

59502-0654

1

$1,236.41

In stock

92055

RING-O

92055-1773

1

$3.83

In stock

92055A

RING-O

92055-1774

1

$5.08

In stock

92154

BOLT

92154-7701

1

$2.47

In stock

92172

SCREW

92172-1677

1

$1.39

In stock

92172A

SCREW

92172-1678

1

$1.39

In stock
