Description

Price

11058

BRACKET,WINDSHIELD MOUNT,LWR

11058-0288

$5.57

11058A

BRACKET,WIPER ACTUATOR

11058-2306

$26.23

11058B

BRACKET,WINDSHIELD MOUNT

11058-2330

$8.91

11058C

BRACKET,WINDSHIELD MOUNT

11058-2798

$8.91

11065

CAP,ACTUATOR

11065-1495

$0.76

16137

PUMP,RESERVOIR TANK

16137-0001

$74.92

16172

ACTUATOR,WIPER

16172-0575

$288.87

28031

WIPER,ARM

28031-0006

$30.17

28031A

WIPER,BLADE

28031-0007

$35.60

39043

CROSSMEMBER-COMP,UPP,FR,T.BLK

39043-0043-388

$101.49

39154

WINDSHIELD,RR

39154-0419

$364.63

43093

RESERVOIR-ASSY-TANK,WASHER

43093-0013

$82.80

49016

COVER-SEAL

49016-0722

$0.76

49091

WASHER-SEAL

49091-0014

$0.76

49091A

WASHER-SEAL

49091-0015

$0.53

51048

CAP-ASSY-TANK,RESERVOIR

51048-0614

$11.94

55036

WINDSHIELD-ASSY,FR

55036-0063

$807.32

55047

BAR-COMP,LH,FR,T.BLACK

55047-0412-388

$386.00

55047A

BAR-COMP,RH,FR,T.BLACK

55047-0413-388

$386.75

55047B

BAR-COMP,RR,T.BLACK

55047-0414-388

$610.73

56001

MIRROR-ASSY,REAR VIEW

56001-0447

$88.70

92026

SPACER,16.3X35X3.6

92026-0973

$12.66

92039

RIVET

92039-0776

$1.19

92062

NOZZLE,SPRAY

92062-0588

$7.99

92071

GROMMET

92071-1115

$5.46

92152

COLLAR,6.5X12X11

92152-0692

$5.65

92154

BOLT,FLANGED,12X45

92154-1420

$3.56

92161

DAMPER

92161-2500

$1.08

92161A

DAMPER,45X35X1.5

92161-2600

$4.46

92161B

DAMPER,20X56X1.5

92161-2639

$1.71

92161C

DAMPER,100X15X1

92161-2650

$2.48

92171

CLAMP

92171-0476

$3.90

92173

CLAMP,RESERVOIR TANK

92173-2872

$4.65

92192

TUBE,4X8X830

92192-2824

$12.09

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

92200A

WASHER,8.4X16X1.6

92200-2705

$1.49

92210

NUT,CAP,6MM

92210-0003

$0.64

92210A

NUT,12MM

92210-0603

$8.98

92210B

NUT,FLANGED,12MM

92210-1932

$3.48

92210C

NUT,HEX,16MM

92210-2208

$2.56

92210D

NUT,HEX,8MM

92210-2209

$1.09

92210E

NUT,FLANGED,8MM

92210-2215

$0.61

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,12X22

130BA1222

$3.04

130B

BOLT-FLANGED,6X22

130BB0622

$3.67

130C

BOLT-FLANGED,12X50

130BB1250

$5.02

130D

BOLT-FLANGED,10X14

130CA1014

$3.35

130E

BOLT-FLANGED,12X60

130CB1260

$7.61

411

WASHER-PLAIN,10MM

411AA1000

$0.96

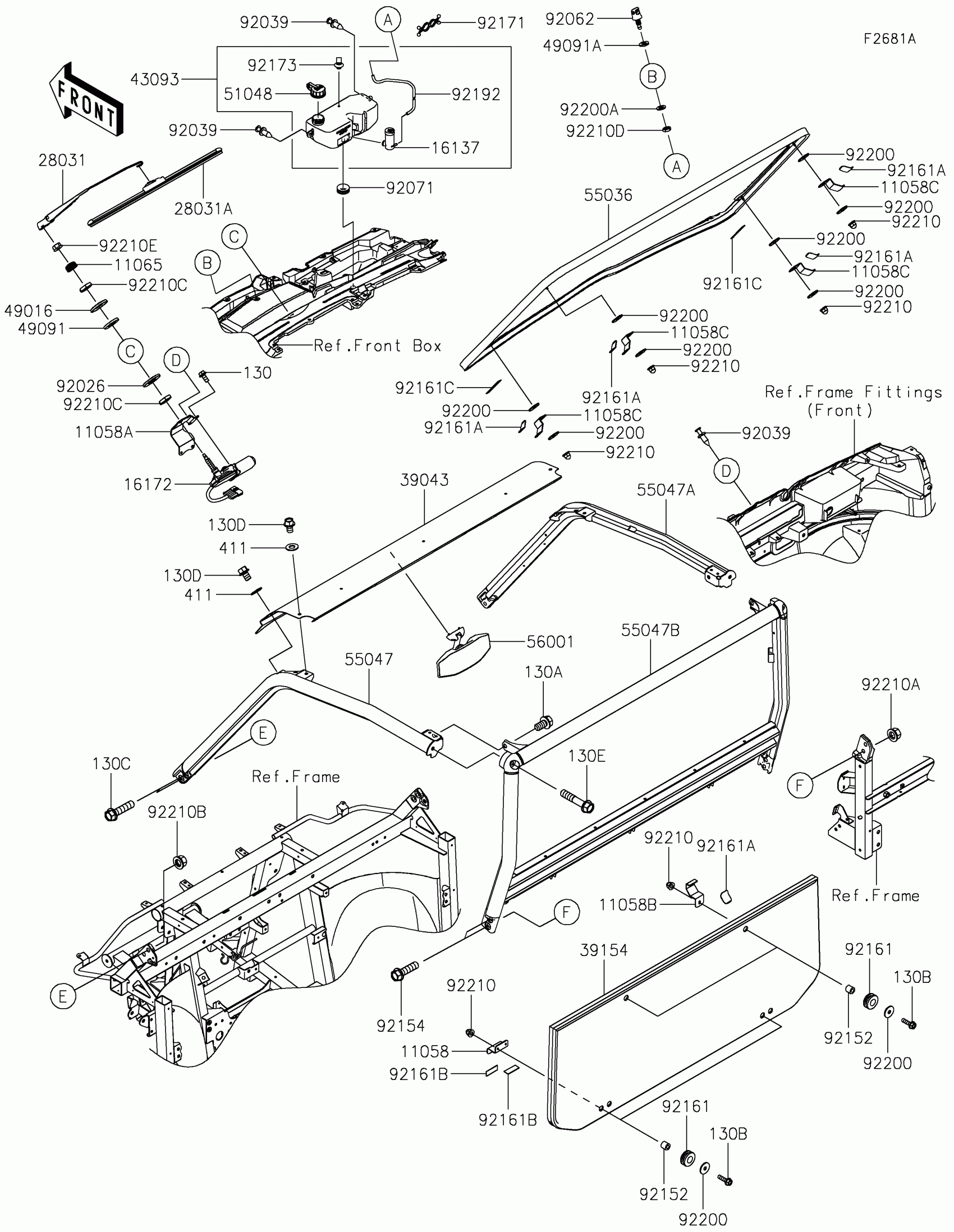

Kawasaki RIDGE® XR HVAC Guards/Cab Frame(GSFNN/GSFNL) Diagram

BRACKET,WINDSHIELD MOUNT,LWR

BRACKET,WIPER ACTUATOR

BRACKET,WINDSHIELD MOUNT

BRACKET,WINDSHIELD MOUNT

CAP,ACTUATOR

PUMP,RESERVOIR TANK

ACTUATOR,WIPER

WIPER,ARM

WIPER,BLADE

CROSSMEMBER-COMP,UPP,FR,T.BLK

WINDSHIELD,RR

RESERVOIR-ASSY-TANK,WASHER

COVER-SEAL

WASHER-SEAL

WASHER-SEAL

CAP-ASSY-TANK,RESERVOIR

WINDSHIELD-ASSY,FR

BAR-COMP,LH,FR,T.BLACK

BAR-COMP,RH,FR,T.BLACK

BAR-COMP,RR,T.BLACK

MIRROR-ASSY,REAR VIEW

SPACER,16.3X35X3.6

RIVET

NOZZLE,SPRAY

GROMMET

COLLAR,6.5X12X11

BOLT,FLANGED,12X45

DAMPER

DAMPER,45X35X1.5

DAMPER,20X56X1.5

DAMPER,100X15X1

CLAMP

CLAMP,RESERVOIR TANK

TUBE,4X8X830

WASHER,6.5X22X1.6

WASHER,8.4X16X1.6

NUT,CAP,6MM

NUT,12MM

NUT,FLANGED,12MM

NUT,HEX,16MM

NUT,HEX,8MM

NUT,FLANGED,8MM

BOLT-FLANGED,6X14

BOLT-FLANGED,12X22

BOLT-FLANGED,6X22

BOLT-FLANGED,12X50

BOLT-FLANGED,10X14

BOLT-FLANGED,12X60

WASHER-PLAIN,10MM
