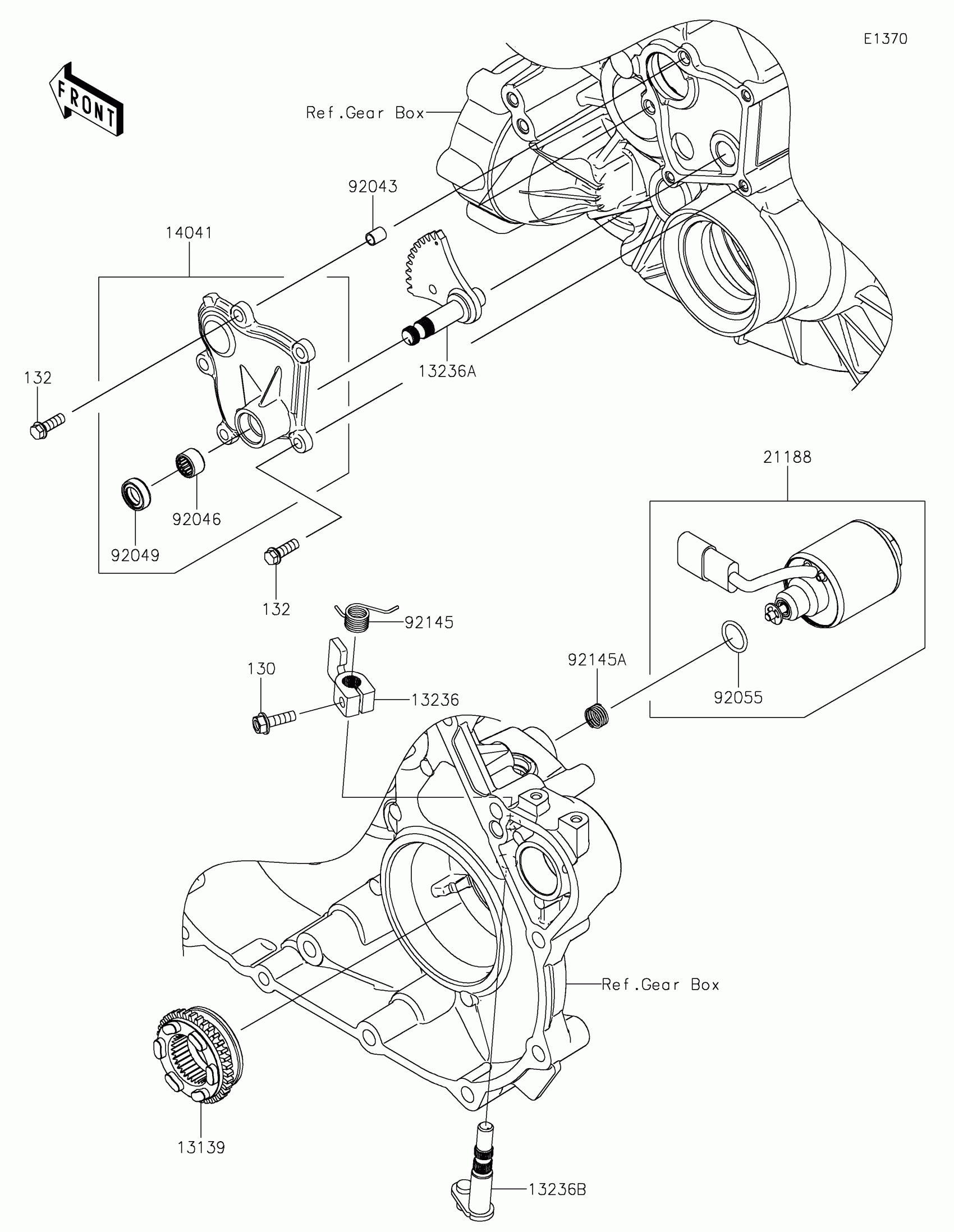

Kawasaki RIDGE® XR HVAC Gear Change Mechanism Diagram

Description

Price

13139

SHIFTER,36T

13139-0041

$140.23

13236

LEVER-COMP,DIFF LOCK

13236-0745

$24.32

13236A

LEVER-COMP

13236-0816

$59.33

13236B

LEVER-COMP

13236-0852

$54.04

14041

COVER-COMP

14041-0614

$21.49

21188

SOLENOID

21188-0010

$112.75

92043

PIN,DOWEL,8X10

92043-1302

$0.84

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$11.87

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

$3.19

92055

RING-O

92055-0829

$3.24

92145

SPRING

92145-1572

$2.61

92145A

SPRING

92145-1573

$3.29

130

BOLT-FLANGED,6X20

130BA0620

$1.28

132

BOLT-FLANGED-SMALL,6X18

132BA0618

$3.24
