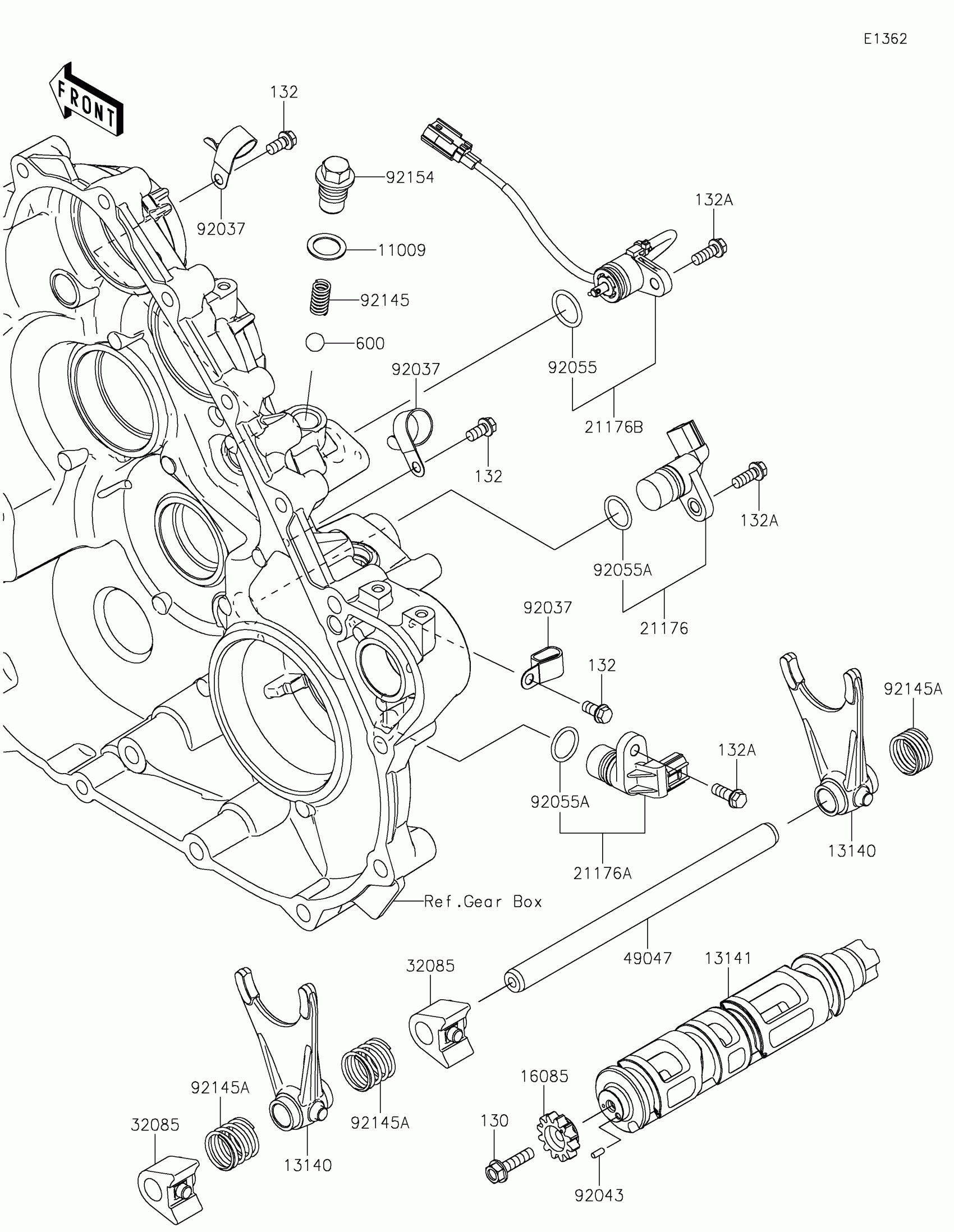

Kawasaki RIDGE® XR HVAC Gear Change Drum/Shift Fork(s) Diagram

Description

Price

11009

GASKET,15.5X22X1

11009-1008

$3.63

13140

FORK-SHIFT

13140-0693

$56.96

13141

DRUM-CHANGE

13141-0618

$260.36

16085

GEAR,12T

16085-0738

$94.11

21176

SENSOR,ROTATION

21176-0767

$65.52

21176A

SENSOR,SPEED

21176-0891

$92.95

21176B

SENSOR,GEAR POSITION

21176-1183

$167.91

32085

STOPPER

32085-0901

$82.80

49047

ROD-SHIFT

49047-0641

$73.15

92037

CLAMP

92037-1993

$5.52

92043

PIN,3X8

92043-1716

$0.64

92055

RING-O

92055-0917

$3.71

92055A

RING-O

92055-1639

$3.09

92145

SPRING

92145-1590

$3.60

92145A

SPRING

92145-2315

$3.43

92154

BOLT,CHANGE POSITION

92154-1366

$16.25

130

BOLT-FLANGED,6X25

130CA0625

$4.45

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

600

BALL-STEEL,13/32"

600A1300

$0.94
