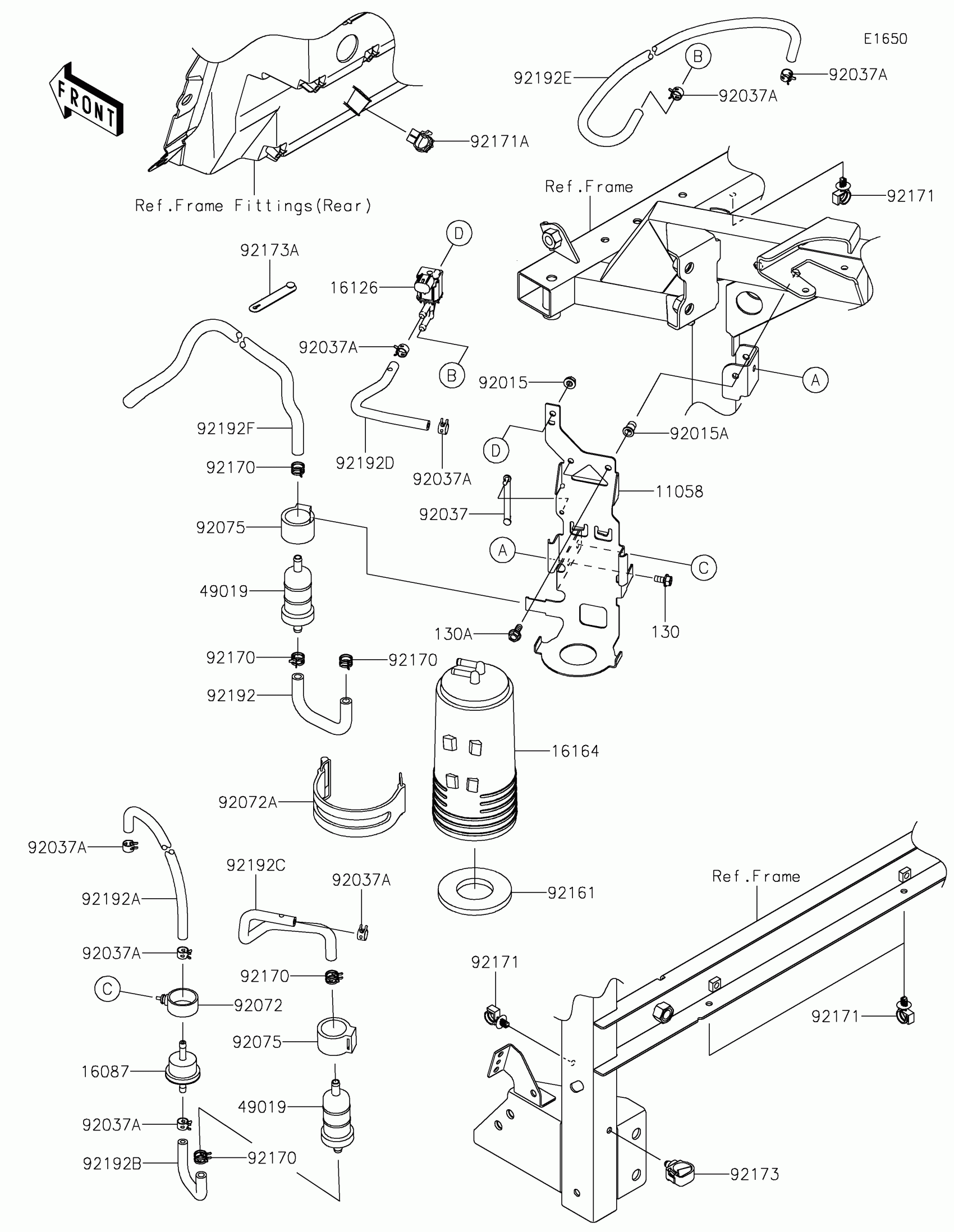

Kawasaki RIDGE® XR HVAC Fuel Evaporative System(CA) Diagram

Description

Price

11058

BRACKET,CANISTER

11058-0557

$42.74

16087

VALVE-CHECK

16087-0011

$37.98

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-0016

$205.69

49019

FILTER-FUEL

49019-0032

$22.97

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,POP,6MM,L=15

92015-1791

$4.69

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92037A

CLAMP

92037-2113

$1.03

92072

BAND

92072-0852

$5.00

92072A

BAND,L=168

92072-1306

$13.75

92075

DAMPER,FUEL FILTER

92075-1853

$12.35

92161

DAMPER

92161-1843

$5.12

92170

CLAMP

92170-2082

$0.84

92171

CLAMP

92171-0453

$3.54

92171A

CLAMP,EDGE CLIP

92171-1722

$8.05

92173

CLAMP

92173-0861

$3.02

92173A

CLAMP

92173-2199

$1.48

92192

TUBE,FILTER-CANISTER

92192-1665

$3.87

92192A

TUBE,TANK-VALVE CHECK

92192-2653

$69.79

92192B

TUBE,VALVE CHECK-FILTER AIR

92192-2654

$27.70

92192C

TUBE,FILTER AIR-CANISTER

92192-2655

$37.92

92192D

TUBE,CANISTER-PURGE VALVE

92192-2656

$28.84

92192E

TUBE,PURGE VALVE-IN MANIFOLD

92192-2657

$71.49

92192F

TUBE,FILTER AIR-OUTSIDE

92192-2658

$15.71

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X16

130BA0616

$1.20
