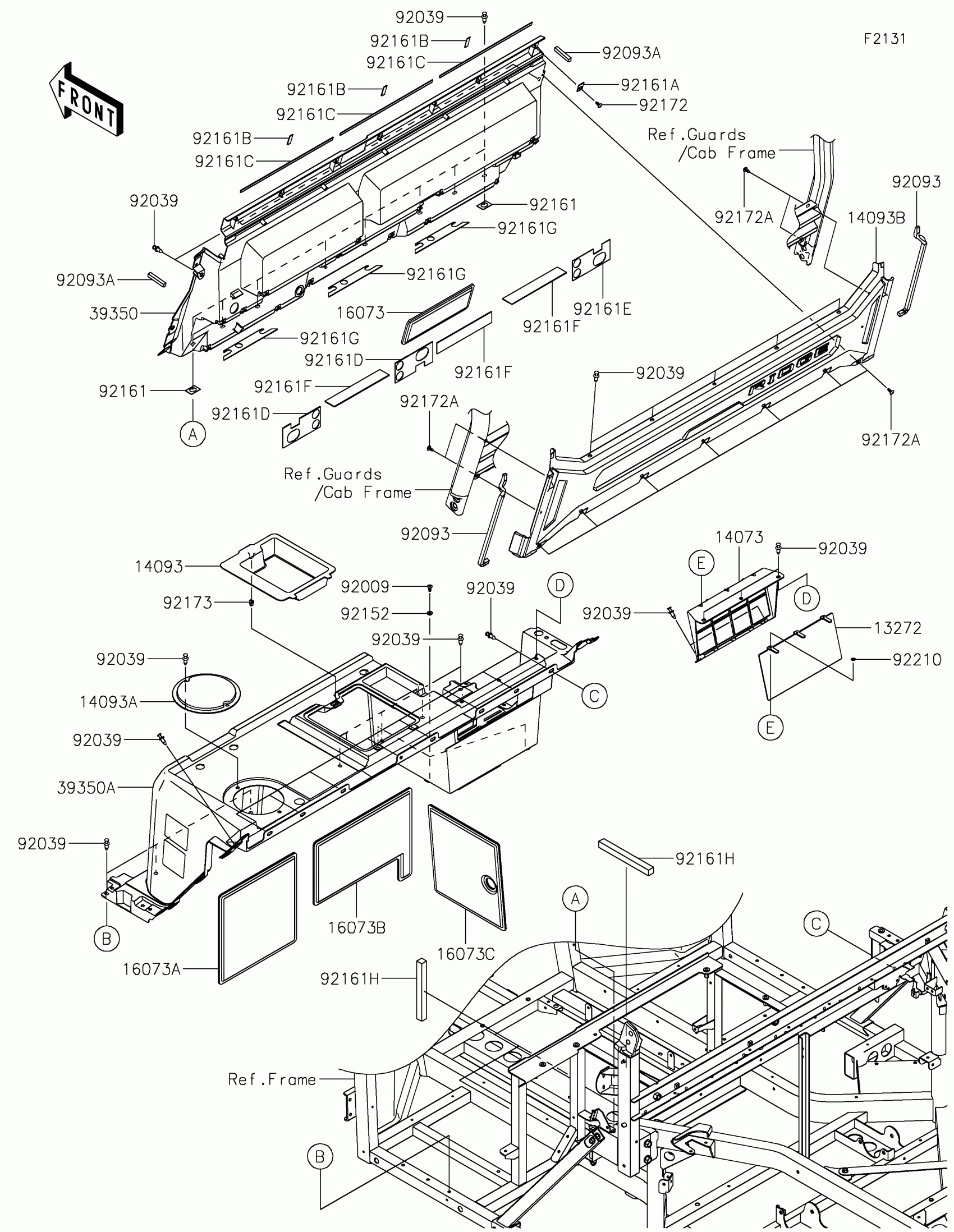

Kawasaki RIDGE® XR HVAC Frame Fittings(Rear) Diagram

#

Description
Price

13272

PLATE,VENT FLAP

13272-4095

$13.15

14073

DUCT,VENT

14073-1921

$14.80

14093

COVER,TRAY

14093-1333

$7.98

14093A

COVER,HOLE

14093-1334

$3.93

14093B

COVER,RR

14093-1353

$55.15

16073

INSULATOR,FR TUNNEL&BACK PANEL

16073-0947

$20.24

16073A

INSULATOR,SEAT PANEL,LH

16073-0967

$53.70

16073B

INSULATOR,SEAT PANEL,CNT

16073-0968

$46.63

16073C

INSULATOR,SEAT PANEL,RH

16073-0969

$54.16

39350

PANEL,BACK

39350-0008

$120.98

39350A

PANEL,UNDER SEAT

39350-0010

$127.47

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92039

RIVET

92039-0776

$0.80

92093

SEAL,10X10X395

92093-0780

$9.59

92093A

SEAL,10X10X60

92093-0786

$1.59

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92161

DAMPER

92161-2613

$2.03

92161A

DAMPER

92161-2626

$1.12

92161B

DAMPER,12X36X1.5

92161-2627

$1.24

92161C

DAMPER,10X370X1.5

92161-2628

$1.85

92161D

DAMPER

92161-2629

$2.49

92161E

DAMPER

92161-2630

$2.49

92161F

DAMPER,38X220X1.5

92161-2631

$2.36

92161G

DAMPER

92161-2632

$2.56

92161H

DAMPER,20X200X20

92161-2633

$16.31

92172

SCREW,6X16

92172-0284

$0.90

92172A

SCREW,TAPPING,6X16

92172-1470

$0.74

92173

CLAMP

92173-1423

$1.14

92210

NUT

92210-1796

$0.43
