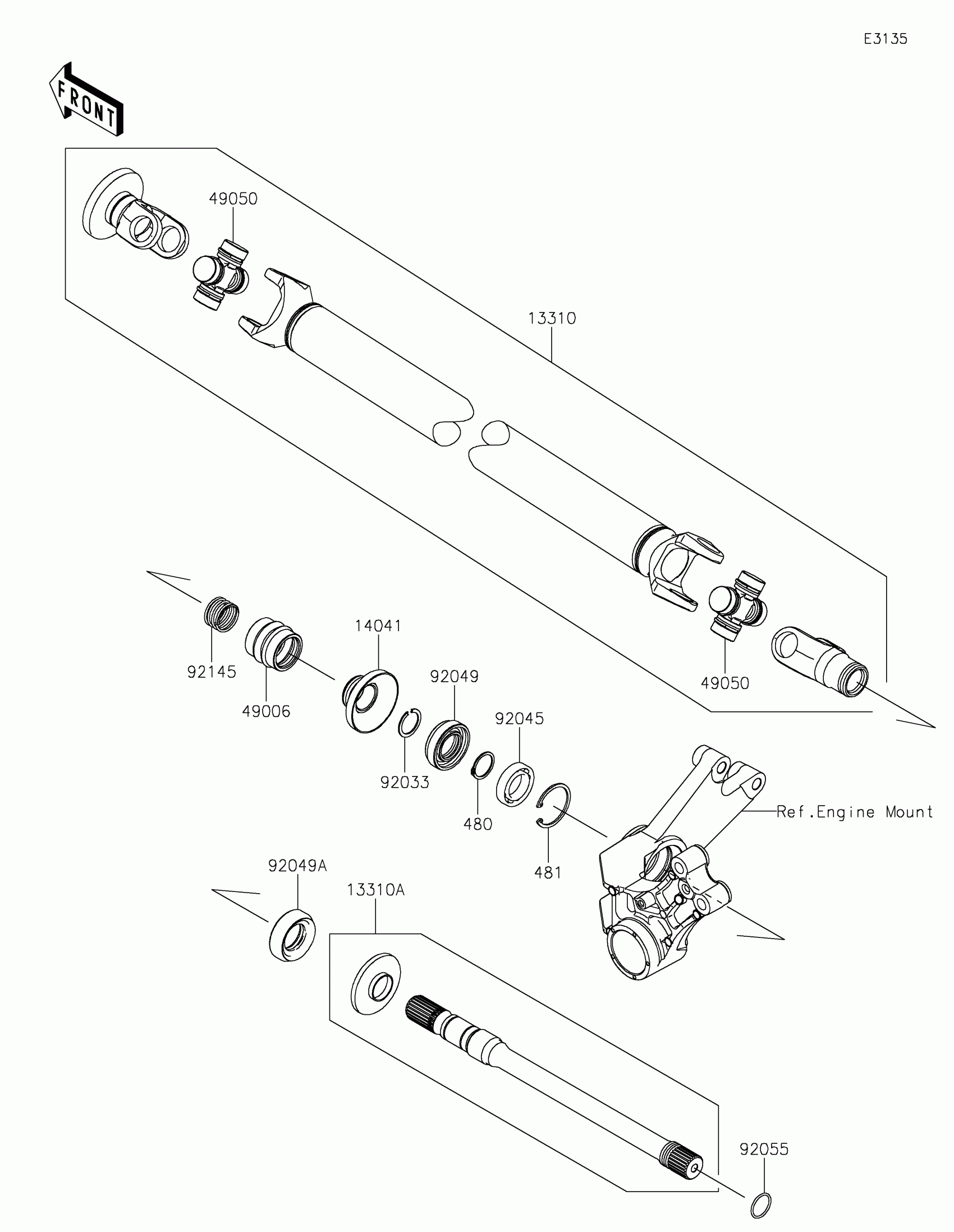

Kawasaki RIDGE® XR HVAC Drive Shaft-Propeller Diagram

Description

Price

13310

SHAFT-ASSY

13310-0579

$520.35

13310A

SHAFT-ASSY

13310-0580

$79.52

14041

COVER-COMP

14041-0631

$8.15

49006

BOOT

49006-0646

$2.66

49050

SPIDER

49050-0034

$98.39

92033

RING-SNAP,24MM

92033-026

$6.70

92045

BEARING-BALL,#6905

92045-036

$22.57

92049

SEAL-OIL,TC9Y 25X48X10X17.2

92049-0817

$9.51

92049A

SEAL-OIL,TC9Y 28X50X10X17.2

92049-0818

$9.51

92055

RING-O,22.1X1.9

92055-1617

$1.89

92145

SPRING

92145-1838

$3.88

480

CIRCLIP-TYPE-C,25MM

480J2500

$1.47

481

CIRCLIP-TYPE-C,42MM

481J4200

$4.64
