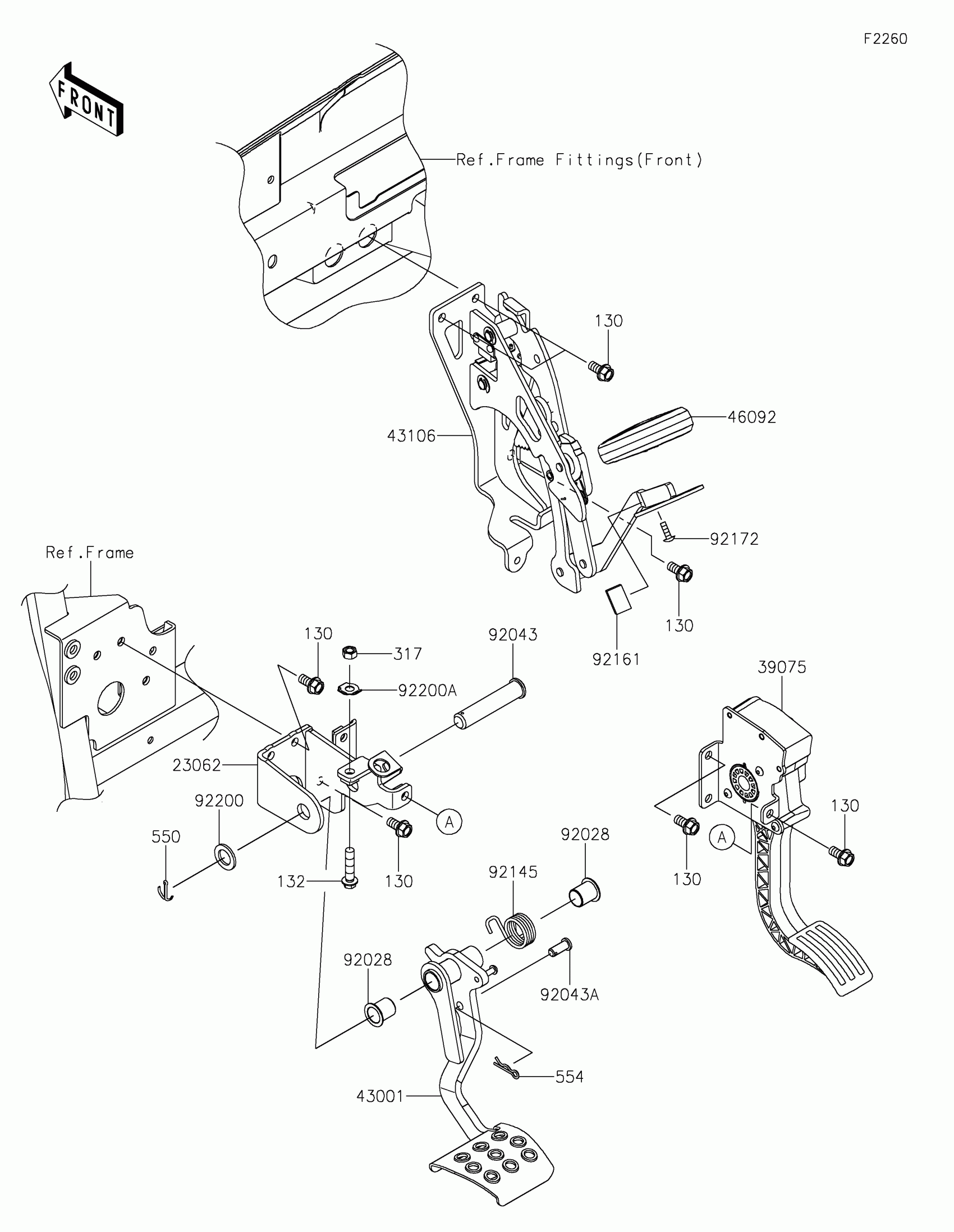

Kawasaki RIDGE® XR HVAC Brake Pedal/Throttle Lever Diagram

Description

Price

23062

BRACKET-COMP,BRAKE PEDAL

23062-1443

$38.95

39075

LEVER-THROTTLE

39075-0034

$136.52

43001

LEVER-BRAKE,FOOT

43001-0790

$134.65

43106

LEVER-ASSY-PARKING BRAKE

43106-0011

$201.12

46092

LEVER-GRIP,PARKING

46092-0584

$3.22

92028

BUSHING

92028-1571

$10.27

92043

PIN,16X78

92043-0917

$13.88

92043A

92043-1039

$7.54

92145

SPRING

92145-2264

$9.92

92161

DAMPER,24X35X15

92161-2647

$1.46

92172

SCREW,TAPPING,5X16

92172-0175

$1.32

92200

WASHER,16X26X2.3

92200-0043

$5.84

92200A

WASHER,8.5X17X0.8

92200-0993

$3.74

130

BOLT-FLANGED,8X16

130BA0816

$0.89

132

BOLT-FLANGED-SMALL,8X35

132BA0835

$3.63

317

NUT-HEX-SMALL,8MM

317BA0800

$1.24

550

PIN-COTTER,2.5X25

550AA2525

$1.05

554

PIN-SNAP,10MM

554DA1000

$0.73
