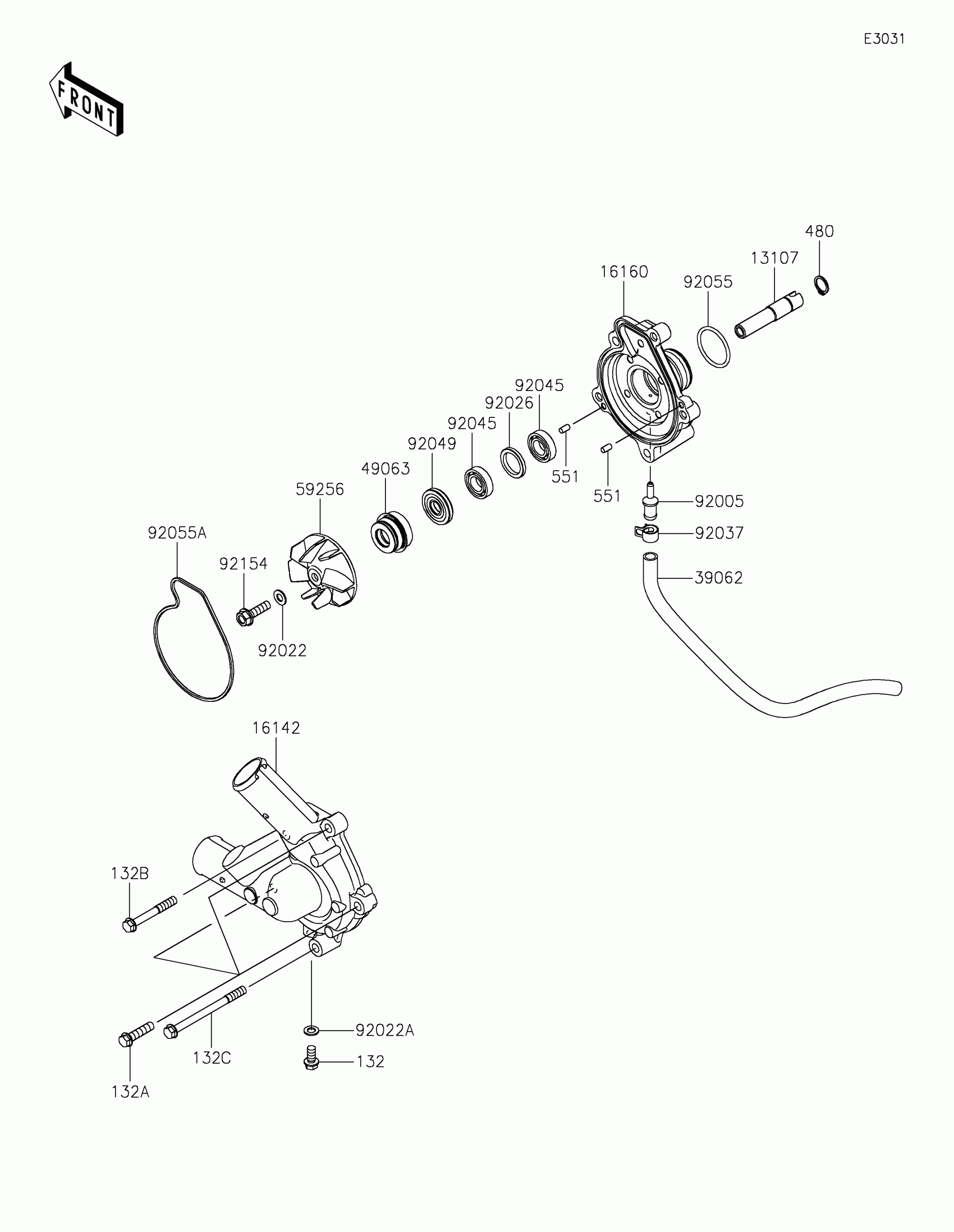

Kawasaki RIDGE® XR DELUXE HVAC Water Pump Diagram

Description

Price

13107

SHAFT,WATER PUMP BODY

13107-0894

$20.55

16142

COVER-PUMP

16142-0772

$158.08

16160

BODY,WATER PUMP

16160-0858

$100.72

39062

HOSE-COOLING,7.5X10.5X280

39062-1949

$9.87

49063

SEAL-MECHANICAL

49063-1055

$20.06

59256

IMPELLER

59256-0017

$42.34

92005

FITTING

92005-1482

$23.35

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92022A

WASHER,6.2X11X1

92022-304

$3.65

92026

SPACER

92026-0952

$10.84

92037

CLAMP

92037-2113

$1.03

92045

BEARING-BALL,6901

92045-1246

$29.76

92049

SEAL-OIL

92049-0798

$28.98

92055

RING-O,28.7X2.4

92055-0922

$4.67

92055A

RING-O,WATER PUMP COVER

92055-1736

$7.75

92154

BOLT,6X22

92154-2832

$3.04

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

132A

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

132B

BOLT-FLANGED-SMALL,6X45

132BA0645

$4.45

132C

BOLT-FLANGED-SMALL,6X75

132BB0675

$5.25

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.62

551

PIN-DOWEL,4X8

551A0408

$0.78
