- RIDGE® XR DELUXE HVAC
Transmission

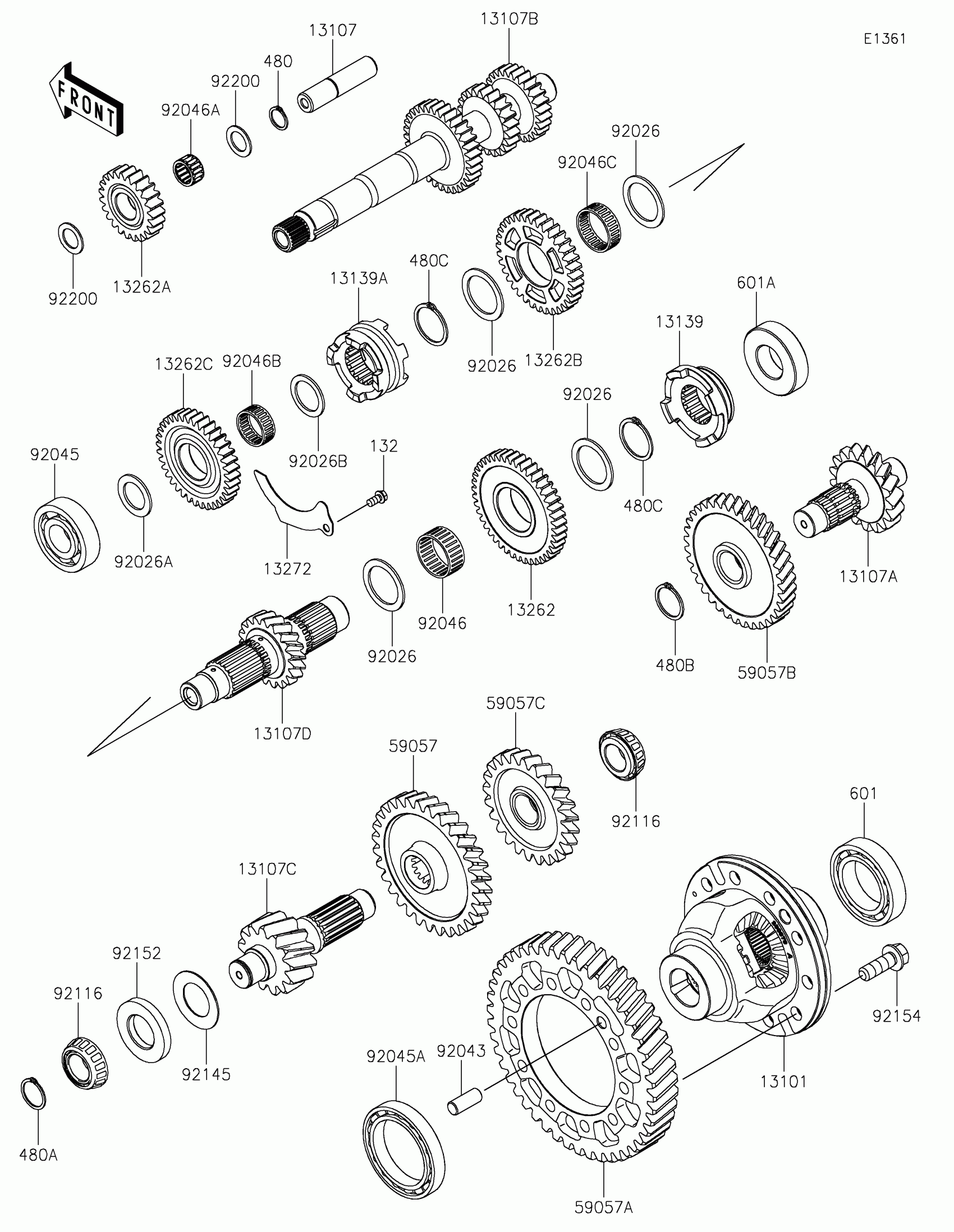

Kawasaki RIDGE® XR DELUXE HVAC Transmission Diagram
#
13101
GEAR-ASSY,DIFFERENTIAL
13101-0735
$473.42
13107
SHAFT,REVERSE IDLER
13107-0879
$40.82
13107A
SHAFT,3RD,17T
13107-0965
$260.81
13107B
SHAFT,INPUT
13107-0966
$595.77
13107C
SHAFT,4TH,13T
13107-0967
$326.57
13107D
SHAFT,2ND,19T
13107-0974
$365.00
13139
SHIFTER,LOW,19T
13139-0030
$126.39
13139A
SHIFTER,HIGH&REV,19T
13139-0037
$118.64
13262
GEAR,LOW,43T
13262-1649
$159.03
13262A
GEAR,REVERSE IDLER,23T
13262-1650
$92.28
13262B
GEAR,REV,35T
13262-1651
$153.66
13262C
GEAR,HIGH,36T
13262-1655
$145.09
13272
PLATE,OIL
13272-2570
$1.45
59057
GEAR-HELICAL,31T
59057-0039
$177.85
59057A
GEAR-HELICAL,46T
59057-0040
$230.71
59057B
GEAR-HELICAL,36T
59057-0042
$173.44
59057C
GEAR-HELICAL,24T
59057-0046
$173.65
92026
SPACER,35.2X47X2
92026-0765
$11.23
92026A
SPACER,25.2X38X2
92026-0856
$8.52
92026B
SPACER,28X38X2
92026-1299
Unavailable
92043
PIN,DOWEL,12X30
92043-0789
$3.63
92045
BEARING-BALL,6305RSH2
92045-0899
$32.73
92045A
BEARING-BALL,6912
92045-0965
$36.52
92046
BEARING-NEEDLE,35X40X17
92046-0611
$17.11
92046A
BEARING-NEEDLE
92046-0634
$12.93
92046B
BEARING-NEEDLE
92046-0635
$12.14
92046C
BEARING-NEEDLE
92046-0636
$17.24
92116
BEARING-ROLLER
92116-1053
$25.12
92145
SPRING
92145-1837
$7.22
92152
COLLAR
92152-2526
$16.74
92154
BOLT,12X35
92154-4495
$8.54
92200
WASHER,18.2X28X1.5
92200-0716
$3.02
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
480
CIRCLIP-TYPE-C,18MM
480J1800
$1.28
480A
CIRCLIP-TYPE-C,25MM
480J2500
$2.03
480B
CIRCLIP
480J2900
$6.22
480C
CIRCLIP
480J3500
$2.75
601
BEARING-BALL,6012
601A6012
$43.55
601A
BEARING-BALL
601A6206
$21.84
