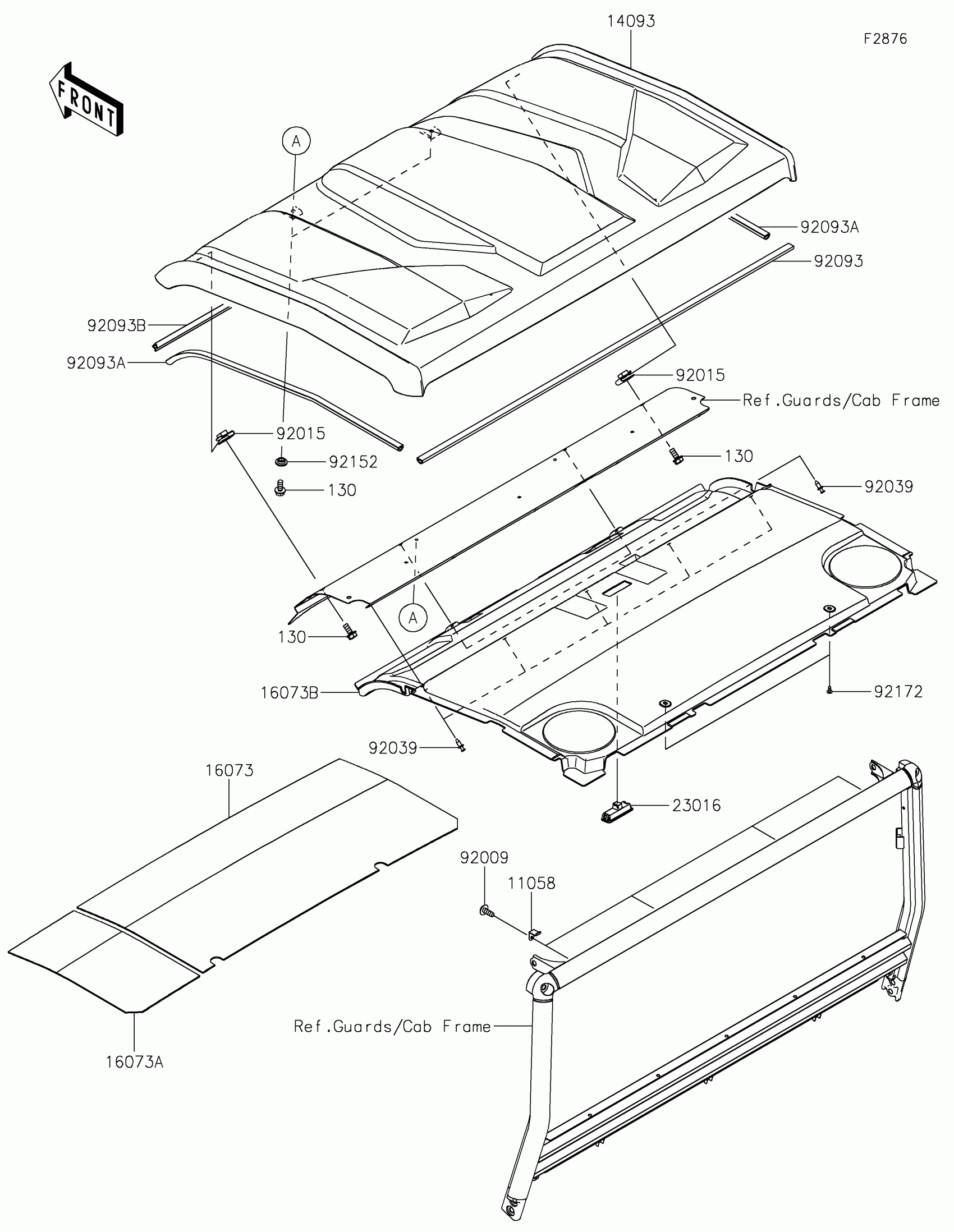

Kawasaki RIDGE® XR DELUXE HVAC Sun Top Diagram

Description

Price

11058

BRACKET,ROOF

11058-0254

$8.01

14093

COVER,ROOF

14093-1352

$147.06

16073

INSULATOR,HEAT,RH

16073-0981

$134.92

16073A

INSULATOR,HEAT,LH

16073-0982

$34.84

16073B

INSULATOR,ROOM LIGHT

16073-0991

$157.93

23016

LAMP-ASSY,ROOM

23016-0673

$13.12

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,6MM

92015-1602

$7.34

92039

RIVET

92039-0776

$1.19

92093

SEAL,ROOF,RR

92093-0778

$19.50

92093A

SEAL,ROOF,SIDE

92093-0779

$12.04

92093B

SEAL,ROOF,FR

92093-0812

$28.52

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92172

SCREW,6X16

92172-0284

$1.34

130

BOLT-FLANGED,6X14

130BA0614

$1.20
