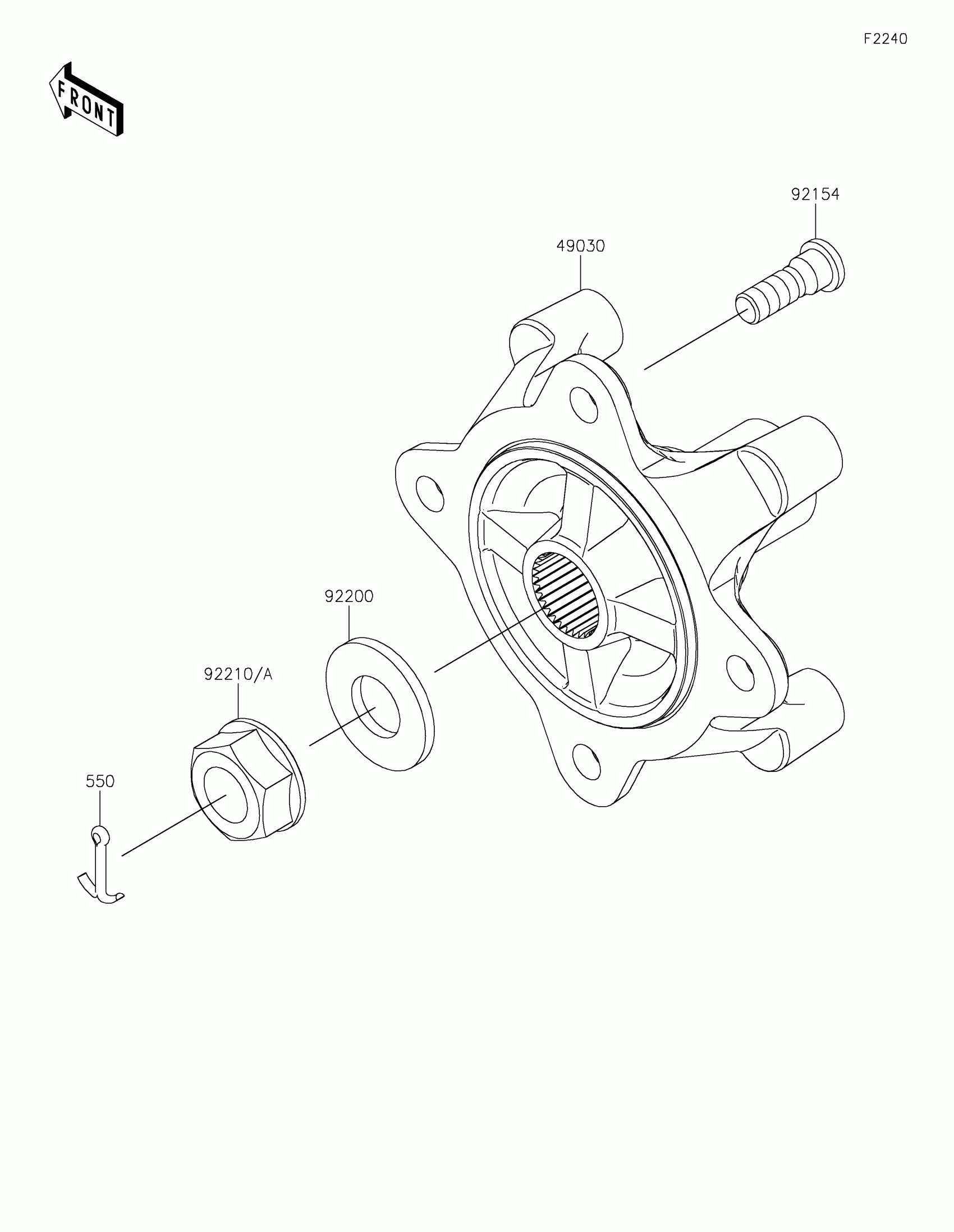

Kawasaki RIDGE® XR DELUXE HVAC Rear Hubs/Brakes Diagram

#

Description

Price

49030

HUB,RR

49030-0571

$139.10

92154

BOLT,12MM

92154-7074

$4.15

92200

WASHER,24.3X50X4.5

92200-2610

$10.03

92210

NUT,24MM

92210-1776

$13.62

92210A

NUT,24MM,LEFT HANDED

92210-1780

$18.22

550

PIN-COTTER,4.0X30

550AA4030

$1.80
