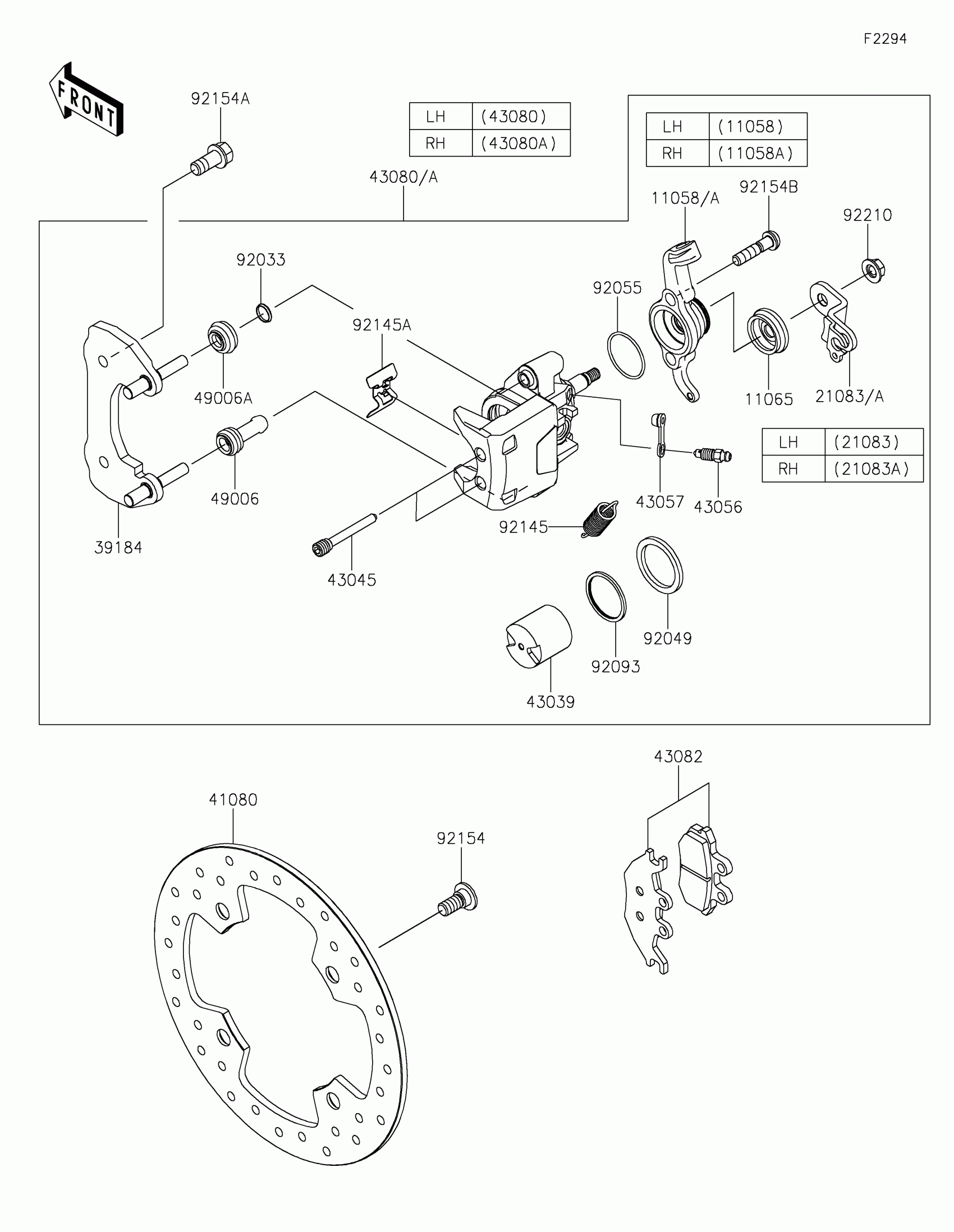

Kawasaki RIDGE® XR DELUXE HVAC Rear Brake Diagram

Description

Price

11058

BRACKET,CALIPER,RR,LH

11058-2318

$91.81

11058A

BRACKET,CALIPER,RR,RH

11058-2319

$91.81

11065

CAP

11065-0870

$3.71

21083

ARM,BRAKE,RR,LH

21083-0771

$23.87

21083A

ARM,BRAKE,RR,RH

21083-0772

$23.87

39184

BRACKET-ASSY,RR

39184-0753

$93.30

41080

DISC,BRAKE

41080-0746

$89.73

43039

PISTON-BRAKE

43039-0027

$96.58

43045

SHAFT-CALIPER

43045-Y002

$13.45

43056

BREATHER-BRAKE

43056-0055

$12.73

43057

CAP-BREATHER

43057-0552

$5.01

43080

CALIPER-SUB-ASSY,RR,LH

43080-0252

$495.24

43080A

CALIPER-SUB-ASSY,RR,RH

43080-0253

$495.24

43082

PAD-ASSY-BRAKE,RR

43082-0209

$106.14

49006

BOOT

49006-0591

Unavailable

49006A

BOOT

49006-0592

Unavailable

92033

RING-SNAP

92033-0864

$4.86

92049

SEAL-OIL

92049-0765

Unavailable

92055

RING-O

92055-0795

$3.20

92093

SEAL

92093-0613

$5.28

92145

SPRING,RETURN,47MM

92145-1690

$5.24

92145A

SPRING,PAD

92145-2364

$7.23

92154

BOLT,SOCKET,10X23

92154-0713

$4.10

92154A

BOLT,FLANGED,10X22

92154-1327

$2.75

92154B

BOLT,FLANGE,6X40

92154-Y228

$4.92

92210

NUT

92210-2216

$8.40
