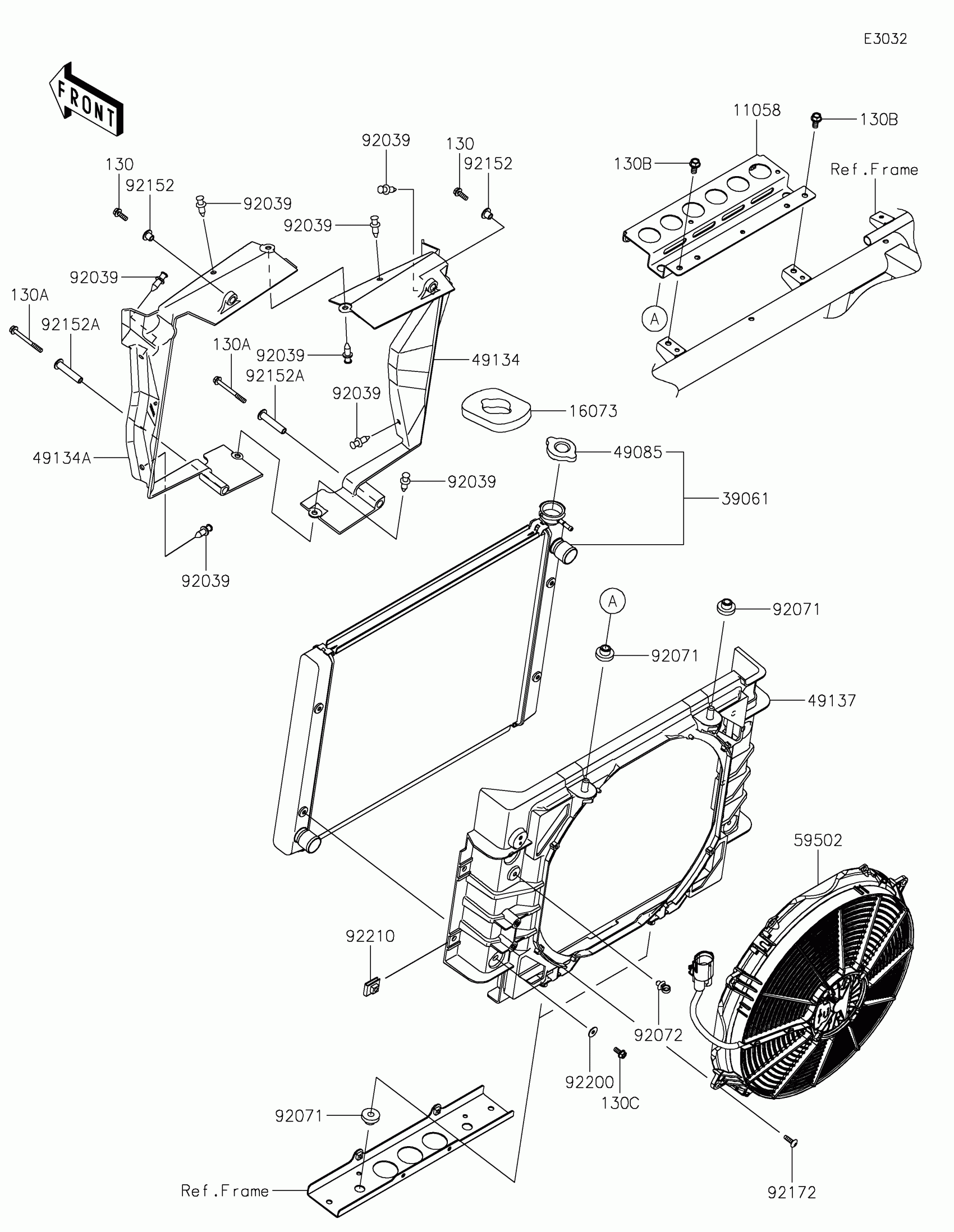

Kawasaki RIDGE® XR DELUXE HVAC Radiator Diagram

Description

Price

11058

BRACKET,RADIATOR

11058-1410

$176.55

16073

INSULATOR,RADIATOR CAP

16073-0961

$22.25

39061

RADIATOR-ASSY

39061-0860

$248.08

49085

CAP-ASSY-PRESSURE

49085-0005

$45.60

49134

SHROUD,RH

49134-0020

$10.97

49134A

SHROUD,LH

49134-0021

$10.97

49137

SHROUD,FAN

49137-0009

$49.23

59502

FAN-ASSY

59502-0640

$469.37

92039

RIVET

92039-0776

$1.19

92071

GROMMET

92071-0827

$3.45

92072

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92152

COLLAR

92152-2922

$8.50

92152A

COLLAR

92152-2923

$11.84

92172

SCREW,TAPPING,6X20

92172-0488

$3.02

92200

WASHER,6.1X18X1.0

92200-2125

$2.86

92210

NUT

92210-0774

$4.10

130

BOLT-FLANGED,6X18

130BA0618

$1.54

130A

BOLT-FLANGED,6X60

130BA0660

$4.25

130B

BOLT-FLANGED,8X16

130BA0816

$1.12

130C

BOLT-FLANGED,6X14

130CA0614

$4.12
