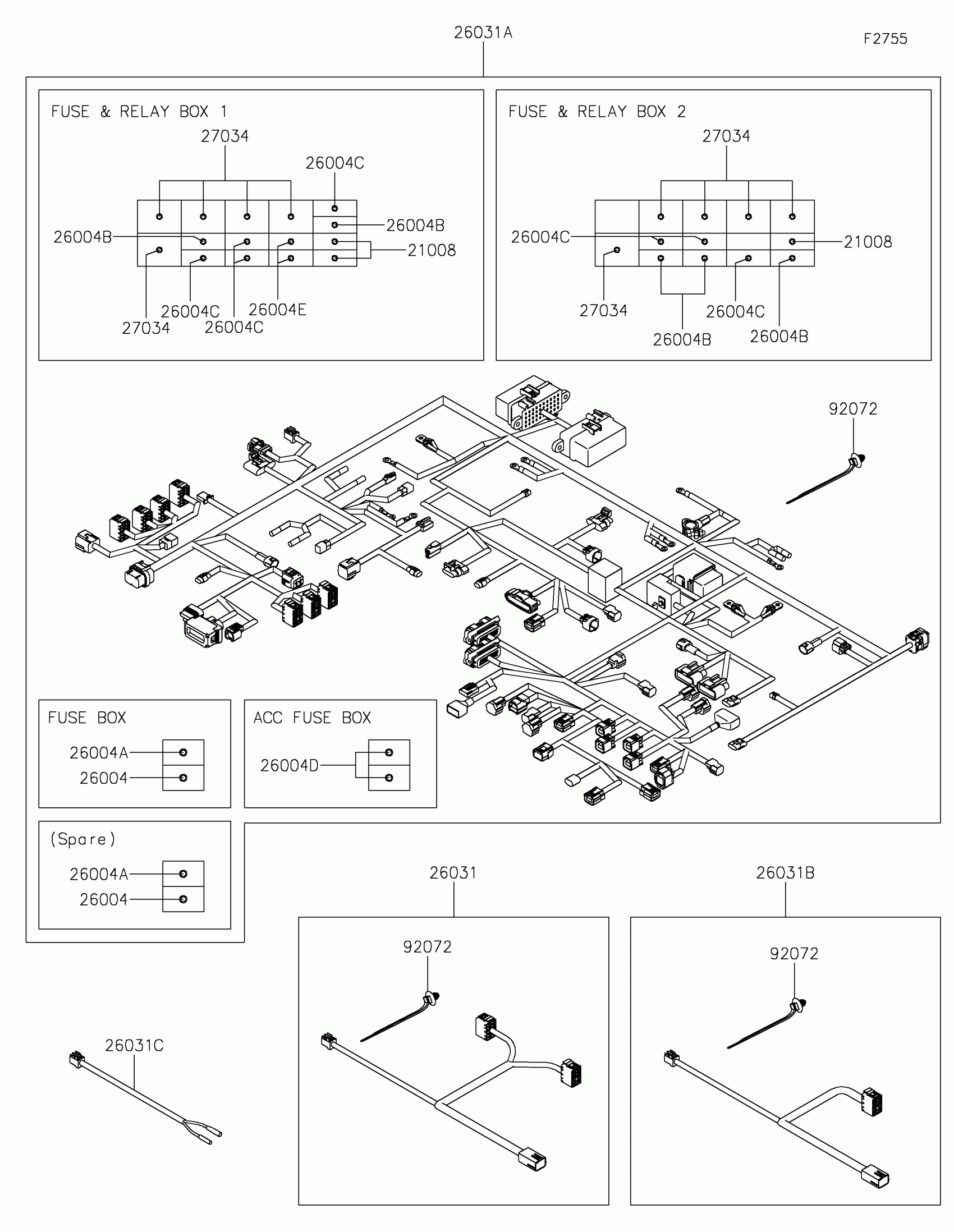

Kawasaki RIDGE® XR DELUXE HVAC Harness Diagram

Description

Price

21008

BREAKER,20A

21008-0017

$24.15

26004

FUSE-ASSY,SLOW-BLOW,60A

26004-0029

$4.73

26004A

FUSE-ASSY,SLOW-BLOW,70A

26004-0030

$4.73

26004B

FUSE-ASSY,20A

26004-0033

$2.37

26004C

FUSE-ASSY,10A

26004-0034

$2.19

26004D

FUSE-ASSY,40A

26004-0035

$4.21

26004E

FUSE-ASSY,30A

26004-0043

$4.31

26031

HARNESS,SUB,DOOR,LH

26031-3942

$62.98

26031A

HARNESS,MAIN

26031-4014

$1,179.11

26031B

HARNESS,SUB,DOOR,RH

26031-4015

$43.39

26031C

HARNESS,SUB,ROOM LIGHT

26031-4076

$14.20

27034

RELAY

27034-0013

$18.76

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable
