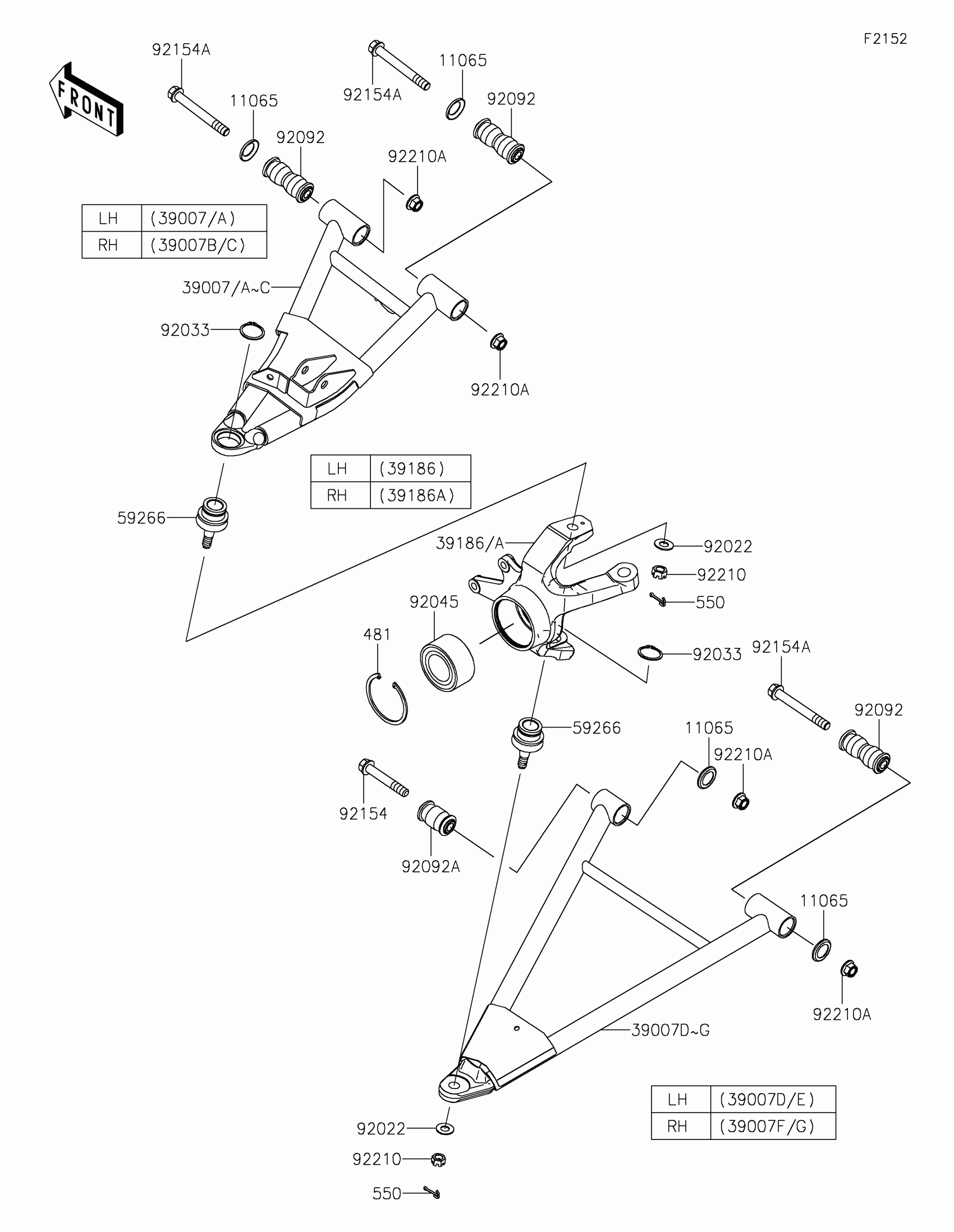

Kawasaki RIDGE® XR DELUXE HVAC Front Suspension Diagram

Description

Price

11065

CAP,ARM

11065-0838

$3.87

39007

ARM-SUSP,FR,UPP,LH,P.C.P.RED

39007-0487-57C

$166.03

39007A

ARM-SUSP,FR,UPP,LH,P.L.GREEN

39007-0487-66C

$166.03

39007B

ARM-SUSP,FR,UPP,RH,P.C.P.RED

39007-0488-57C

$166.03

39007C

ARM-SUSP,FR,UPP,RH,P.L.GREEN

39007-0488-66C

$166.03

39007D

ARM-SUSP,FR,LWR,LH,P.C.P.RED

39007-0489-57C

$124.77

39007E

ARM-SUSP,FR,LWR,LH,P.L.GREEN

39007-0489-66C

$124.77

39007F

ARM-SUSP,FR,LWR,RH,P.C.P.RED

39007-0490-57C

$124.77

39007G

ARM-SUSP,FR,LWR,RH,P.L.GREEN

39007-0490-66C

$124.77

39186

KNUCKLE,FR,LH

39186-0335

$207.21

39186A

KNUCKLE,FR,RH

39186-0336

$207.21

59266

JOINT-BALL

59266-0711

$96.44

92022

WASHER

92022-1831

$5.52

92033

RING-SNAP,C-TYPE,32MM

92033-1262

$6.41

92045

BEARING-BALL,40X74X36

92045-0919

$103.68

92092

BUSHING-RUBBER,12X20X78

92092-0028

$21.77

92092A

BUSHING-RUBBER

92092-0555

$19.13

92154

BOLT,FLANGED,12X76.5

92154-7079

$9.99

92154A

BOLT,FLANGED,12X100

92154-7081

$12.54

92210

NUT,CASTLE,12MM

92210-0395

$3.86

92210A

NUT,LOCK,FLANGED,12MM

92210-1931

$4.96

481

CIRCLIP-TYPE-C

481J7500

$5.48

550

PIN-COTTER,3.0X25

550AA3025

$0.62
